CM2P201 User Guide
5.3.6 CM2-MOD-02
CM2-MOD-02 is a 32-channel QAM-A modulation output module with 2 gigabit IP input ports (single
port supports 256-channel input), 1 CAS interface (RJ45) supporting scrambling and 1 RF output
interface supporting up to 32 QAM-A non-adjacent frequencies modulating with independent
constellation mode configuration.
CM2-MOD-02 > Status
The Status page contains status information of IP Input, Modulation Output and IP Output.
IP Input > CM2-MOD-02 has 1024 IP input channels. Those channels are divided into two RJ45
ports, each of which has 512 IP input channels. Clicking Port 1, you can obtain status information of
the 512 channels, such as input source IP address and port number, total bitrate (Mbps) and
effective bitrate (Mbps). The TS analysis and Service List button of each channel allow you to check
their individual detailed information. See the image below for reference.

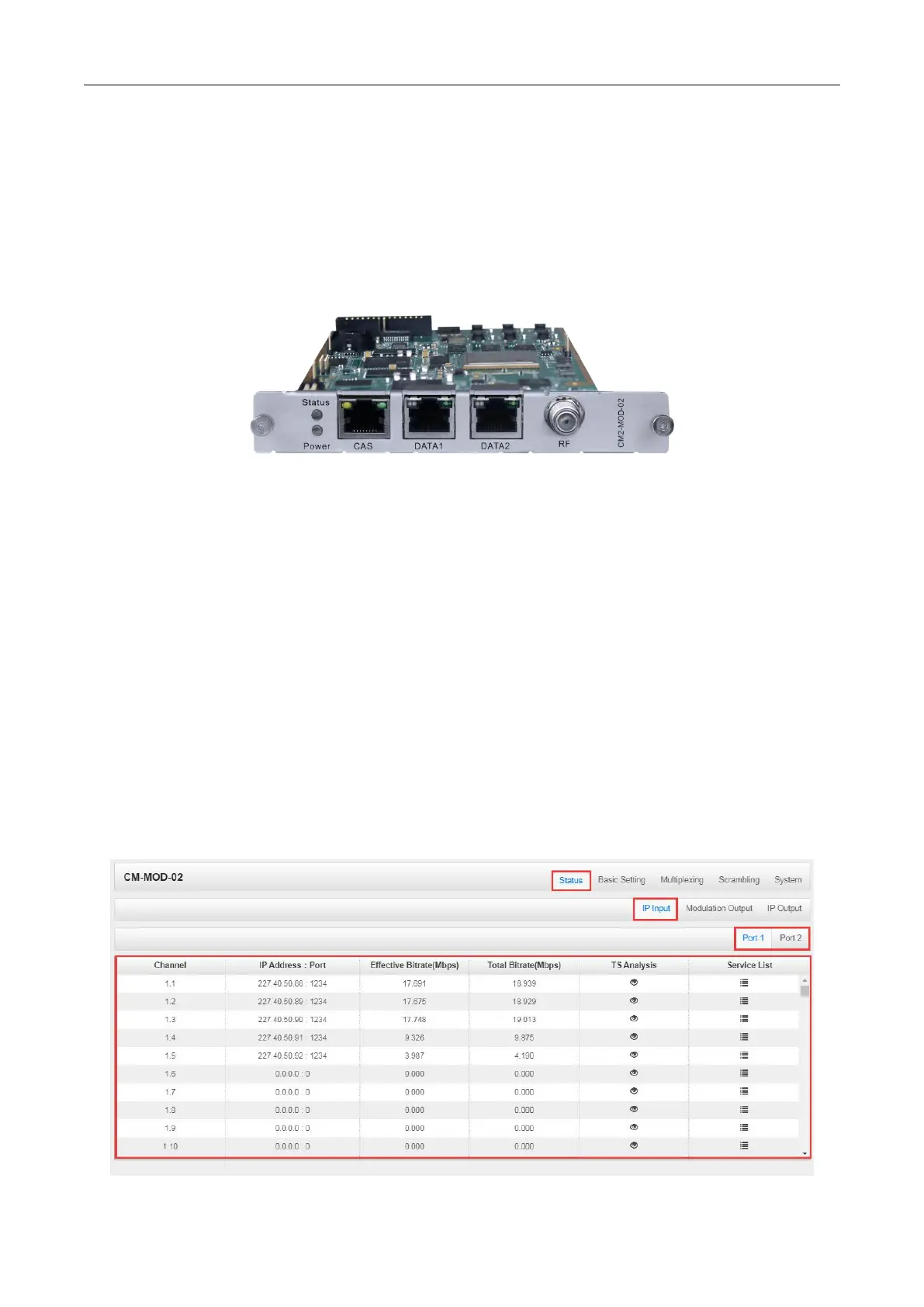

512 channels in port 1
