CM2P201 User Guide
91

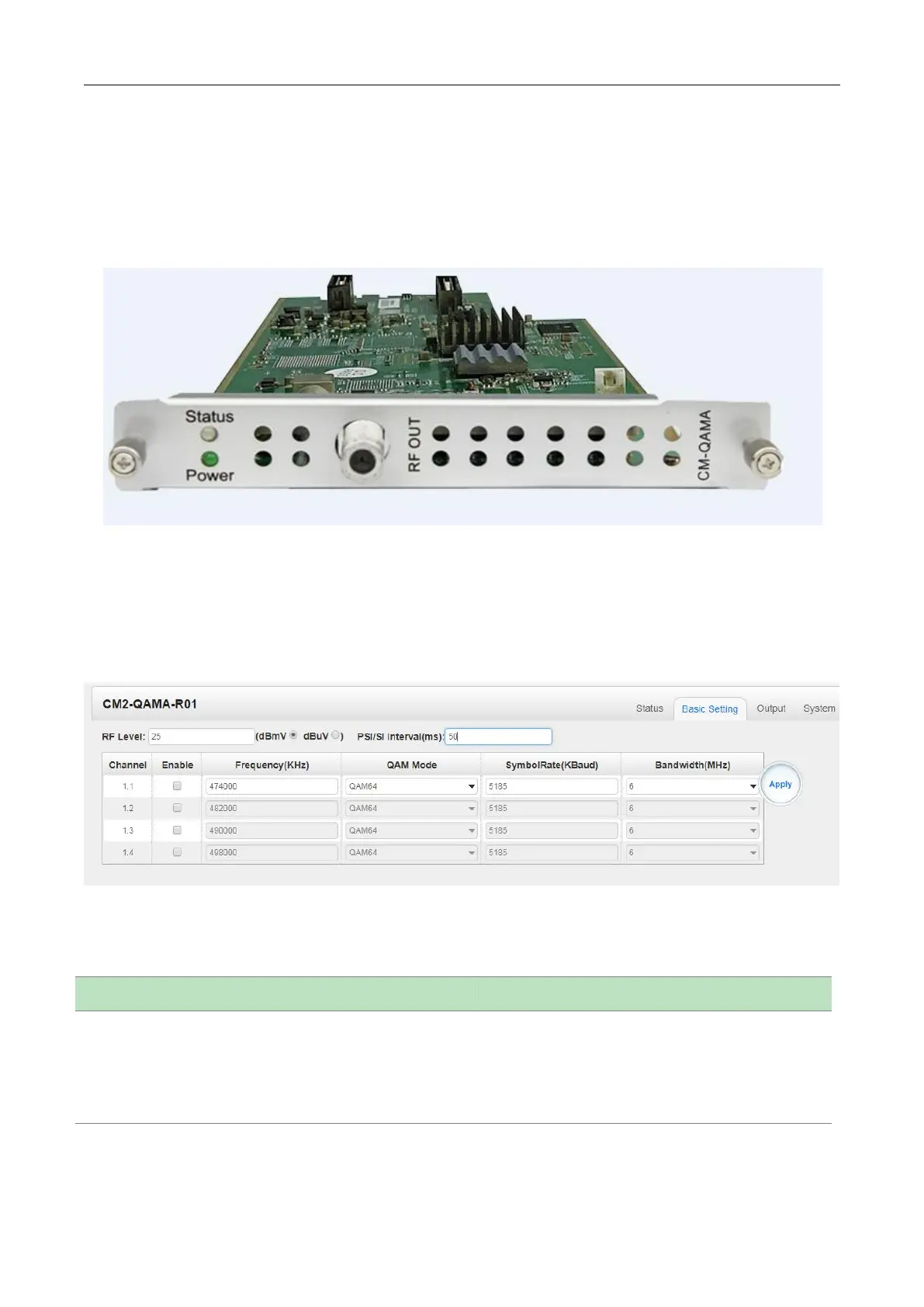

CM2-QAMA-R01 / R01A
CM2-QAMA-R01 / R01A module supports modulating 4/8 adjacent channels with 1 RF female port
for modulating output.
CM2-QAMA-R01>Basic Setting
Click the Apply button on the right side to make the change take effect.
Name
Range
Name
Range
Symbol Rate (KBaud)
3780~6956
PSI/SI Interval (ms)
50~10000
RF level
25~45dBmV/85~105dBμV
Frequency (KHz)
47000~862000
QAM Mode
QAM16/32/64/128/256
CM2-QAMA- R01/R01A>Output
