CM2P201 User Guide
89

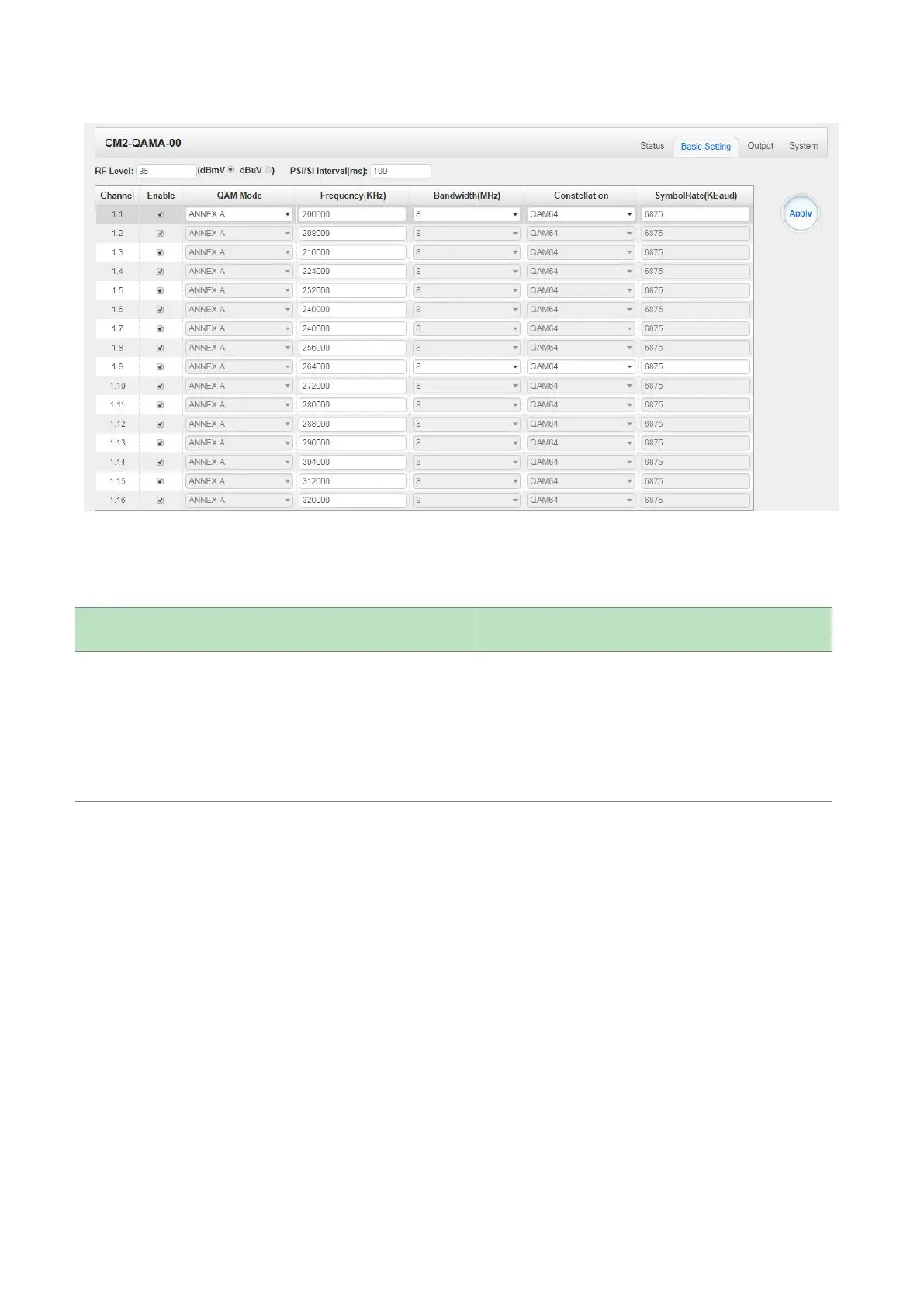

Click the Apply button on the right side to make the change take effect.
Name
Range
Name
Range
Bandwidth
6M, 7M, 8M
RF level
0~63 (dBμV)
60~123 (dBmV)
Symbol Rate (KBaud)
4400~6956
Frequency (KHz)
48000~858000
PSI/SI Interval (ms)
50~10000
Constellation
QAM16/32/64/128/256
CM2-QAMA-00 >Output
QAM Output will be different from the Receiver and Encoder module. Since the QAM module is an
output module like IP output, all services configured in receiver, encoder and IP input will be seen
here.

TS setting: Please refer to IP output service configuration.
 LCN setting: You need to add NIT streams of all frequencies in the base TS (frequency), which is
used for your STB to automatically search and identify all the TS (frequencies) LCN information.

Check or reset Original Network ID and TS ID of each TS (frequency). Each TS should have
different IDs.

Fill the Original Network ID and TS ID of each TS (frequency) in the field of the base TS
(frequency) and then click Add to create a NIT stream for this TS (frequency).
