CM2P201 User Guide

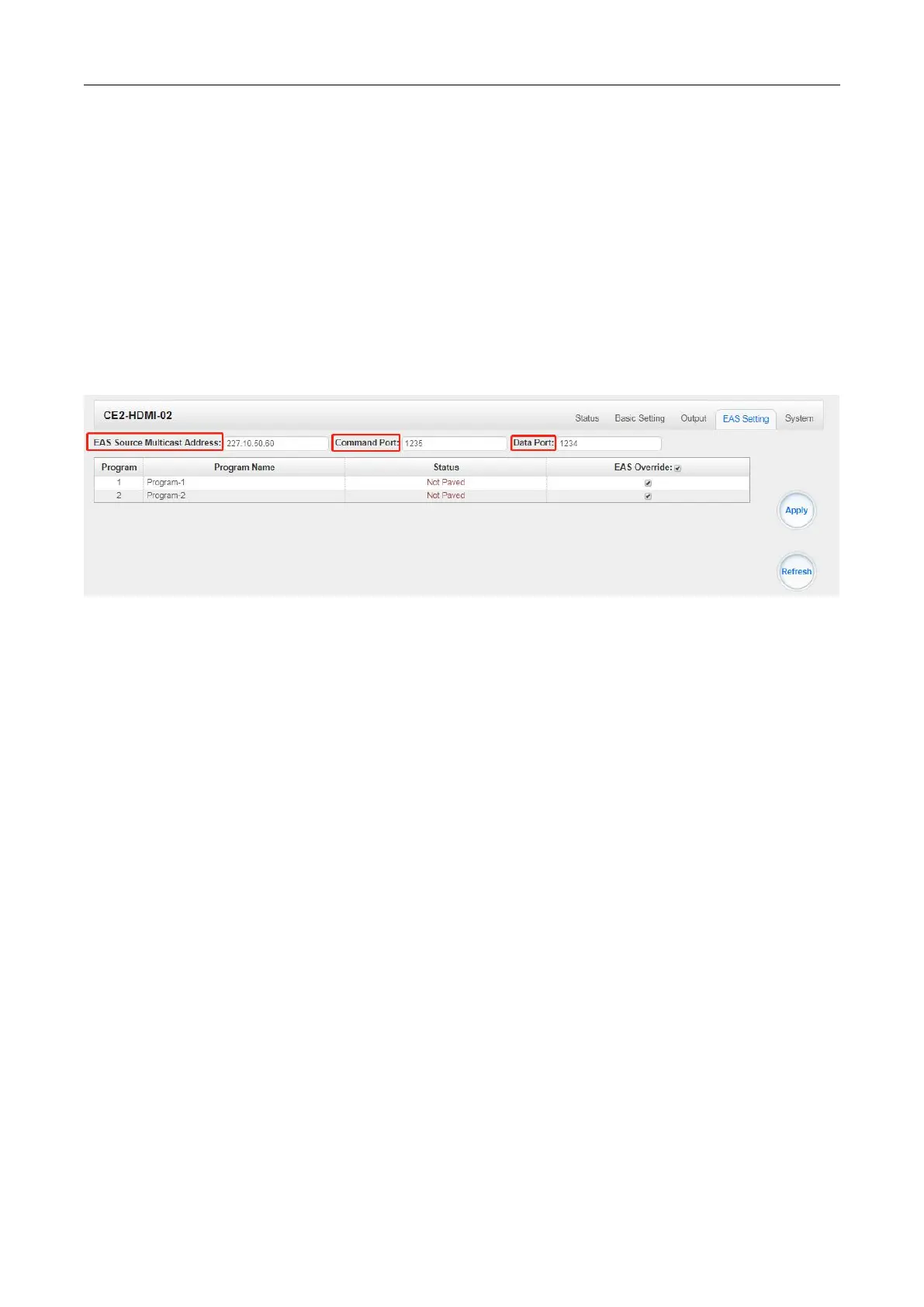

CE2-HDMI-02 > EAS Settings
This function need to be used together with CP2-EAS-00 module.
The parameters of EAS Source Multicast Address & Command Port & Data Port should be
consistent with those of CP2-EAS-00 module. Then the EAS module will be detected automatically
by CE2-HDMI-02 module so that the service(s) could be paved by EAS input(ASI or AV signal).
When it is triggered by an external IP or analogue signal, the services(s) will be switched to the AV or
ASI service from EAS module.
Service: There are 2 programs corresponding to 2 HDMI ports
Status: Paved/Unpaved
EAS Override: Tick the check-box to select the program(s) needing to be paved.
Click the Apply button on the right side to make the change take effect.
CE2-HDMI-02 > System
Please refer to CR2-DVBC/DTMB module.
5.2.3 CE2-HDMI-02C
CE2-HDMI-02C is a 2-channel HDMI or component HD encoder. It supports H.264 / MPEG-2 HD/SD,
MPEG1L2, AAC (optional), AC3 (optional) audio, CC subtitle and analog audio input.
