11

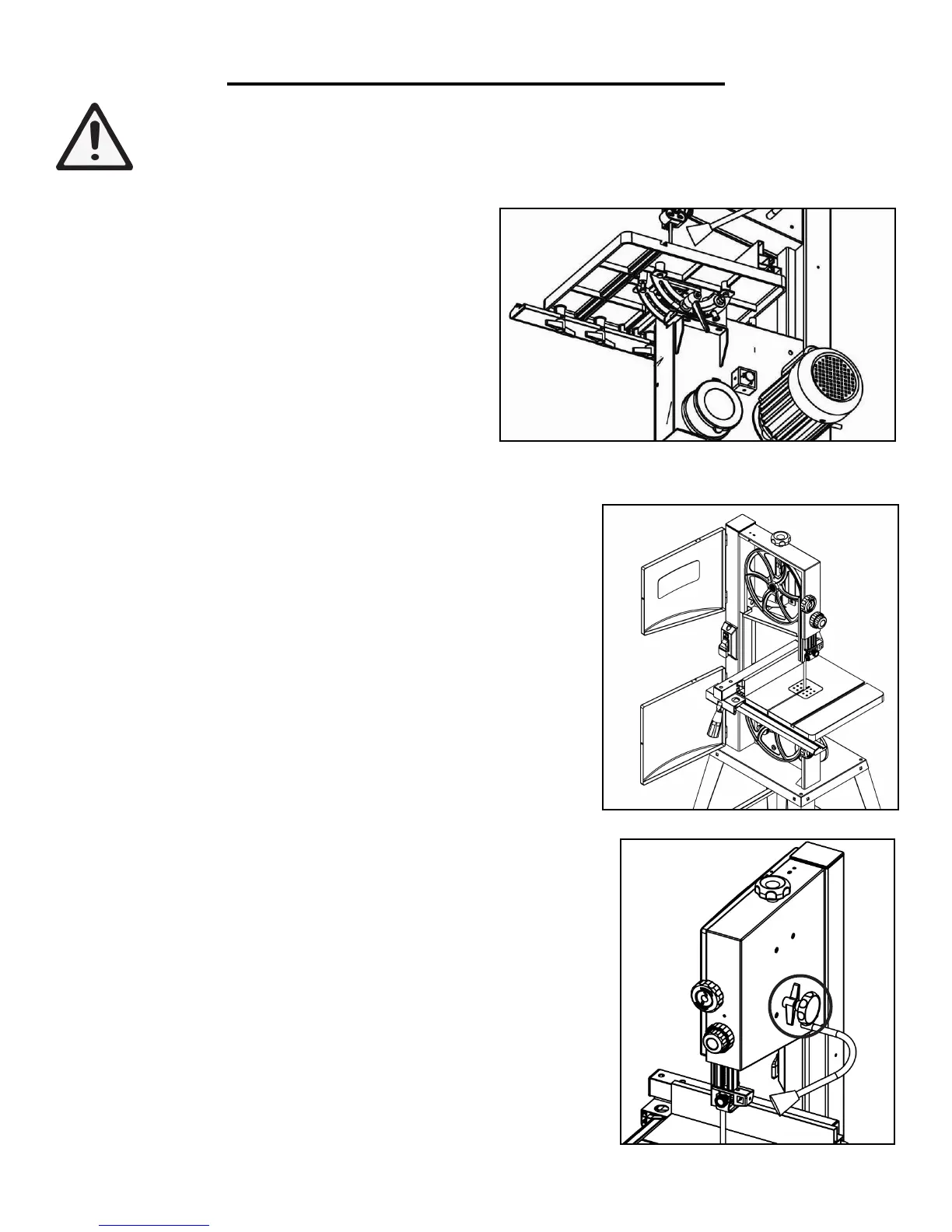

ADJUSTMENTS
TILTING THE TABLE
1. Find and loosen the lock handle located in back under
the saw table (Fig. G).
2. Loosen the handle and adjust the table to the desired
angle.
3. Use the angle indicator to confirm the desired angle
and tighten the lock handle (NOTE: a table perpendicular
(90°) to the blade corresponds to a scale indication of 0°).
WARNING: Always be sure that the tool is switched off and unplugged before making any adjust-
ments.
ADJUSTING THE SAW BLADE
1. If the blade does not run in the middle of the rubber tire band, the
tracking needs to be corrected by adjusting the tilt of the upper band saw
wheel.
2. Turn of the bandsaw and unplug it from the power supply. Open both
the upper and lower wheel covers once the blade has stopped moving
(Fig. H).
3. To loosen the tracking lock knob (located next to the tracking set knob
on the backside of the bandsaw - circled in Fig I), grasp and manually
rotate the upper wheel, making sure not to touch the blade.
4. Turn tracking set knob in the desired direction until the blade is cen-
tered over the rubber tire.
5. Tighten the tracking lock knob and close the covers. (Fig. I)
Fig. C
Fig. D
Fig. F
Fig. G
Fig. H
Fig. I
