ASSEMBLY
UNPACKING
Carefully unpack the band saw and all its parts, and compare against the list below. Do not discard the carton or
any packaging until the band saw is completely assembled.
WARNING: If any part is missing or damaged, do not plug in the band saw until the missing or dam-
aged part is replaced.

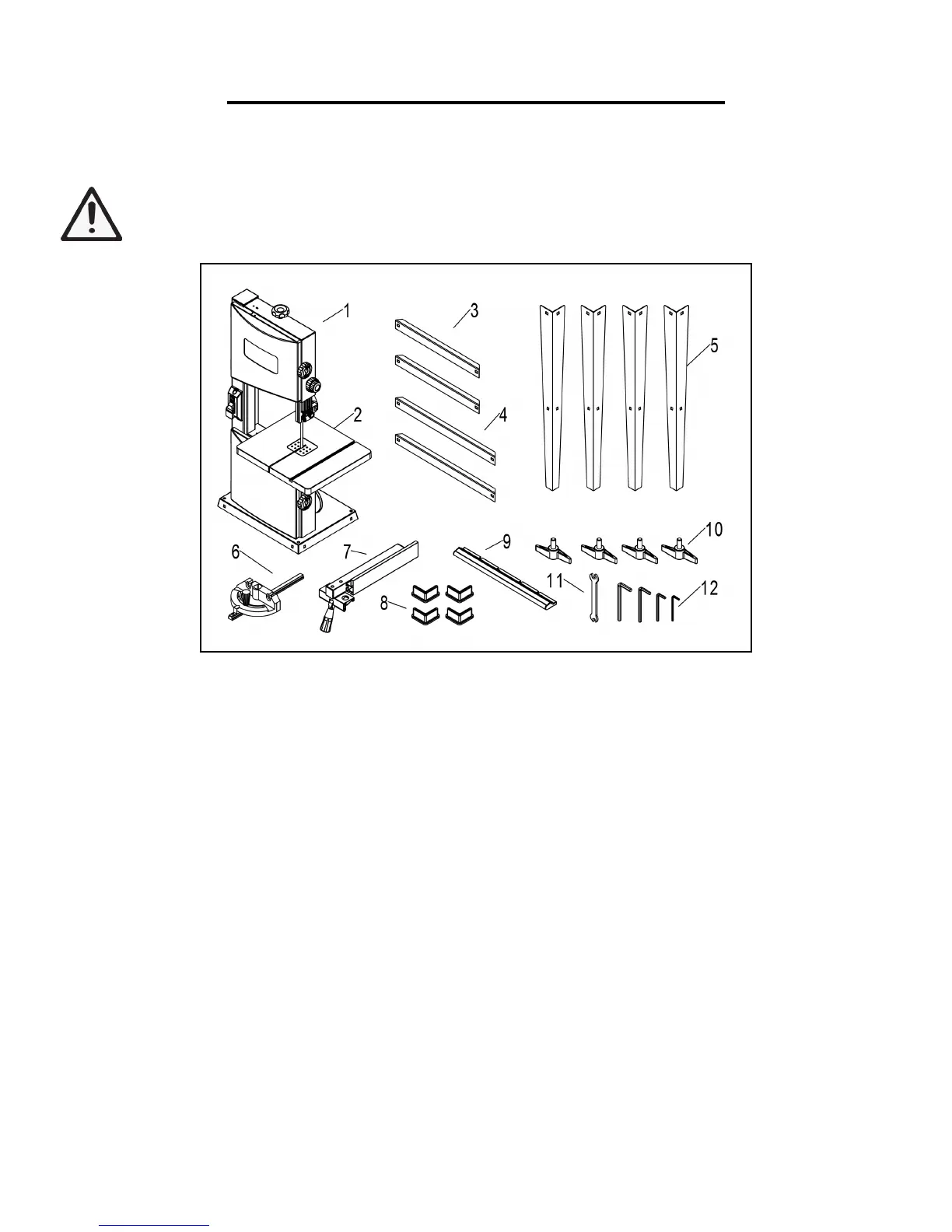

1 Band Saw (1) 8 Foot (4)
2 Table (1) 9 Guide Rail (1)
3 Short Brace (2) 10 Knob (4)
4 Long Brace (2) 11 Open Spanner (1)
5 Leg (4) 12 Hex Wrench (4)
6 Miter Gauge (1)
7 Rip Fence (1)
Tools Required for Assembly & Adjustments
The tools listed below are not included but are required for either assembly or adjustment.
Two 14mm Open End Wrenches
One Cross Point Screw Driver
One Combination Square
Hardware Bag (Not Shown):
M8X16 Carriage Bolts (16)
8mm Flat Washers (16)
M8 Hex nut (16)
M6X10 Hex Bolts (4) (with table)
6mm Flat Washers (4) (with table)
