9
ASSEMBLY
WARNING: Unplug the machine from the power source before assembling or making adjustments. Fail-
ure to comply may cause serious injury.
TO ASSEMBLE THE STAND (Figure 1)
1. Place the band saw on its back as shown above (Fig. A), either on the floor or preferably on a workbench. Prop
the bottom of the drill press up on a wooden block in order to have space to assembly the band saw’s stand.
2. Attach legs to saw body using M8 Carriage Bolts, 8mm Flat Washers and M8 Hex nuts.
3. Attach the long and short braces to the legs using M8X16 Carriage Bolts, 8mm Flat Washers nad M8 hex nuts,
but do not tighten the nuts at this time.
4. Attach one foot to each leg of the band saw.
5. Place the band saw upright and tighten all nuts (Fig. B). Make sure there is no wobbling or tilting in the stand
after fully tightening the nuts.

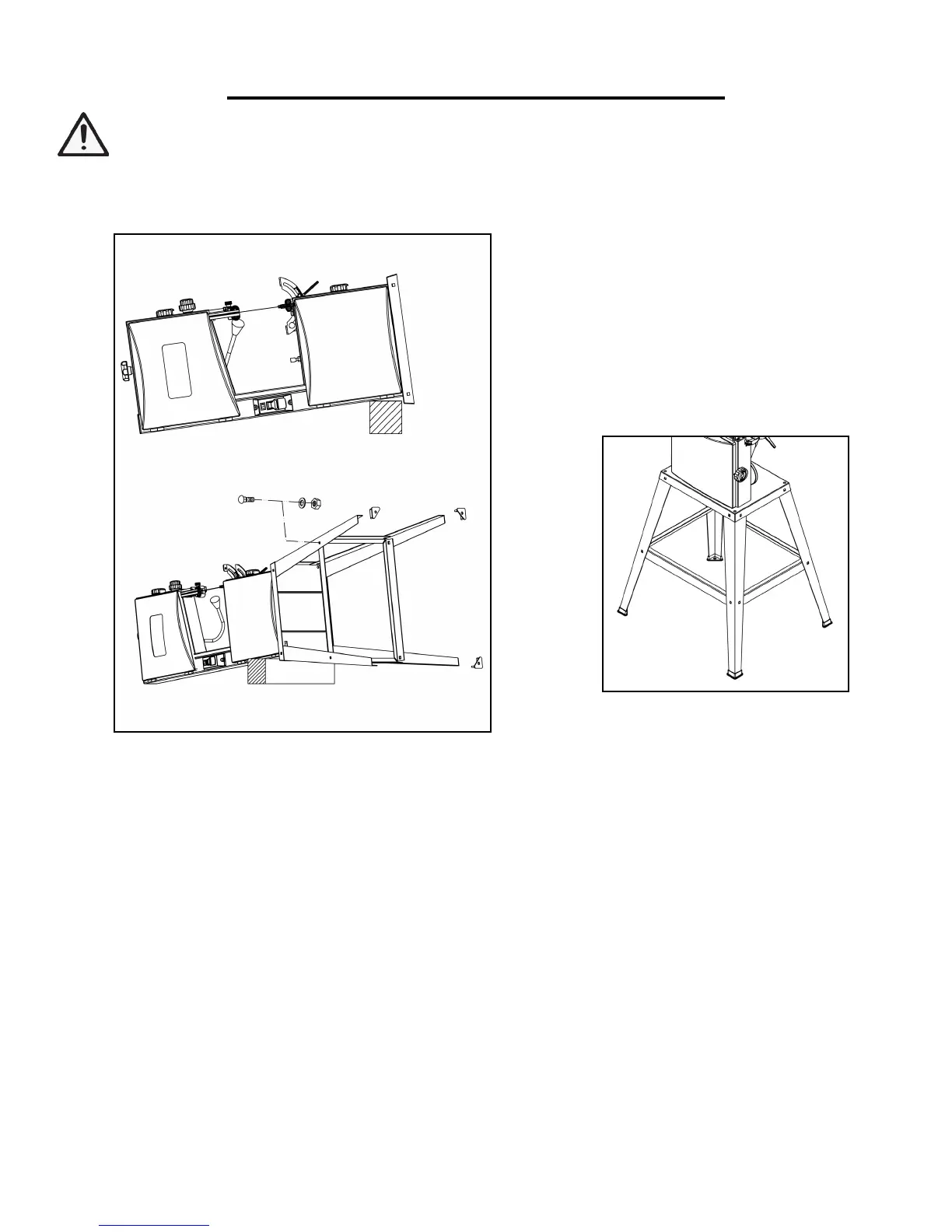

Fig. A
Fig. B
To Next Page
