ASSEMBLY
TO ASSEMBLE THE STAND (CONT.)
7. Check to see if the bandsaw is relativly level, then the tighten all of the
nuts using the necessary wrenches.
8. Insert the handle into the pre-drilled holes on the legs opposite of the
wheels. Secure the handle in place with the cotter pin (Fig. E).
9. Remove the screws and washers from where the belt house needs to be
mounted. Place the belt house over the motor and gear shafts. Secure it
with the removed screws and washers (Fig. F & Fig. G).
10. Open the pulley cover. Take the key from off the motor shaft and
clean the motor shaft. Install the key and motor pulley to the motor shaft
(Fig. H).
11. Install the worm gear pulley on the shaft closest to the gear box, op-
posite of the motor (Fig. H). NOTE: Make sure to pay attention to the
direction of the pulley’s installation.
12. Use a straight edge to check the alignment of the pulley wheels and
adjust them as needed (Fig. H).
13. When the pulley wheels are aligned, tighten the set screws on both
pulleys and install the V belt. The belt tension can be adjusted by adjusting
the motor lock bolt (Fig. I - 1)
14. Install the work stop shaft (Fig. J - 1) into the side of the bandsaw. Lock
it into place by tightening the set screw (Fig. J - 2). Slide the work stop onto
the end of the shaft and lock it into position with the set screw (Fig. J - 3).

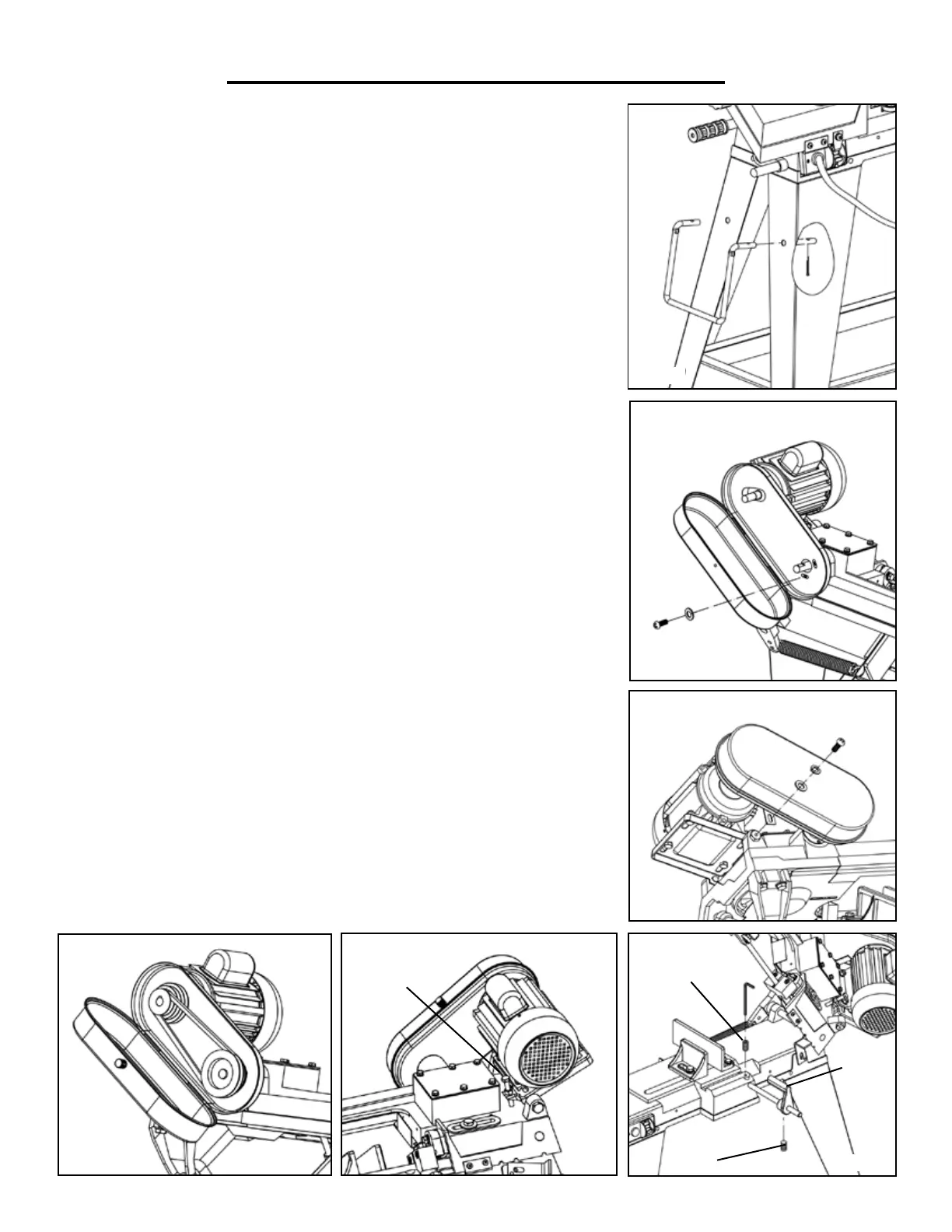

Fig. E
