Fig. O
10

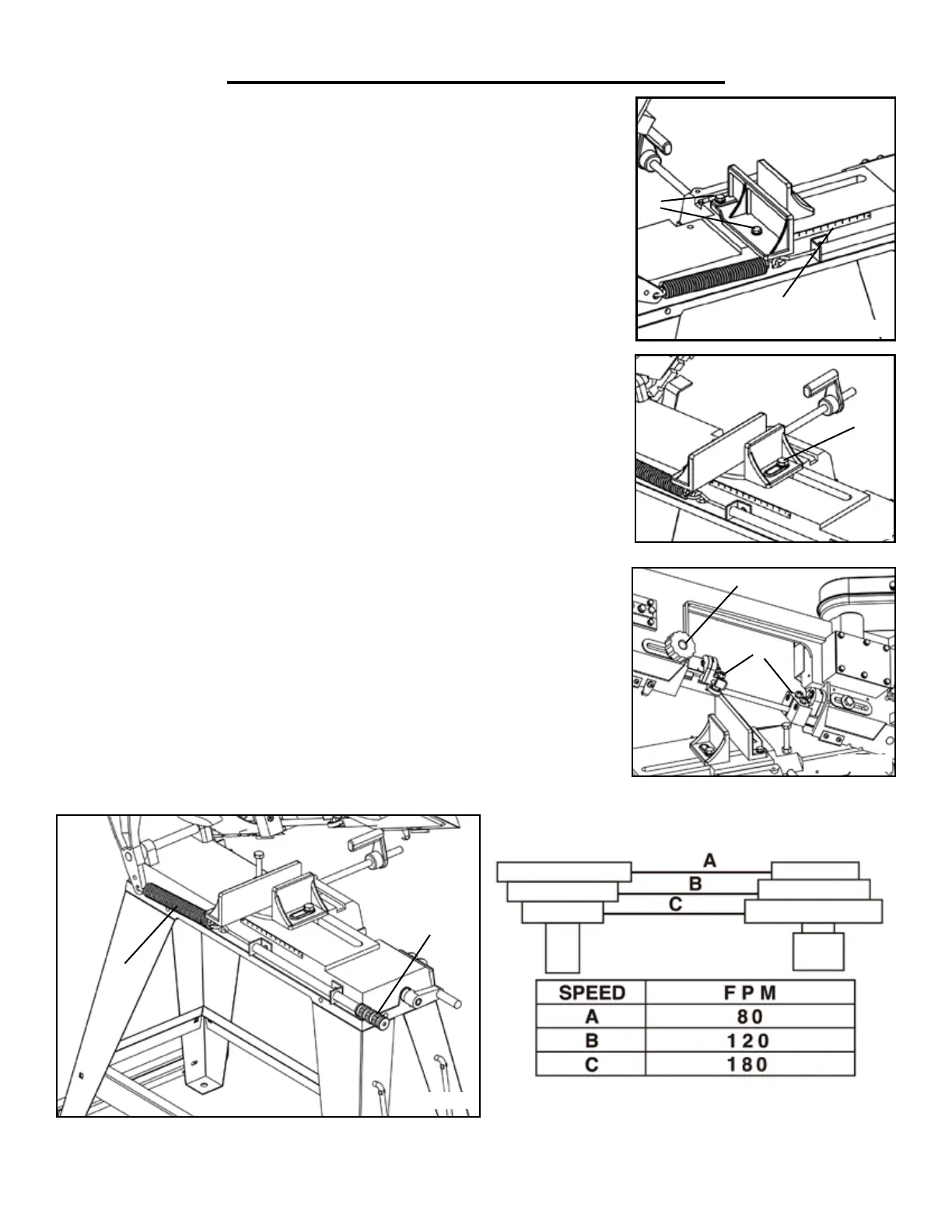

ADJUSTMENTS
VISE ADJUSTMENT
WARNING - Turn off the machine and disconnect from the power supply
before doing any adjustments.
To use the vise:
1. Loosen the two hex bolts (Fig. K - 1, L - 1).
2. Use the scale as a guide to set your angle (Fig. K - 2).
3. Tighten the hex bolts (Fig. K - 1, L - 1).
4. Loosen the hex bolt on the opposite jaw so the jaw can float. Match the
angle of the workpiece and retighten the hex bolt.
5. Tighten the vise against the workpiece.
1
2
1
Fig. K
Fig. L
BLADE GUIDE ADJUSTMENT
Loosen the knob (Fig. M - 1) and slide the blade guide (Fig. M - 2) as close
to the workpiece as possible, then re-tighten the knob.
FEED RATE ADJUSTMENT
The feed rate is controlled by the spring (Fig. N - 1) and handle (Fig. N -
2). Twist the handle clockwise to add tension to the spring and slow down
the feed rate. Twist the handle counterclockwise to remove the tension
from the spring.
1
2
Fig. M
1
2
Fig. N
