KNOW YOUR POLE SAW
13
TOOL PURPOSE

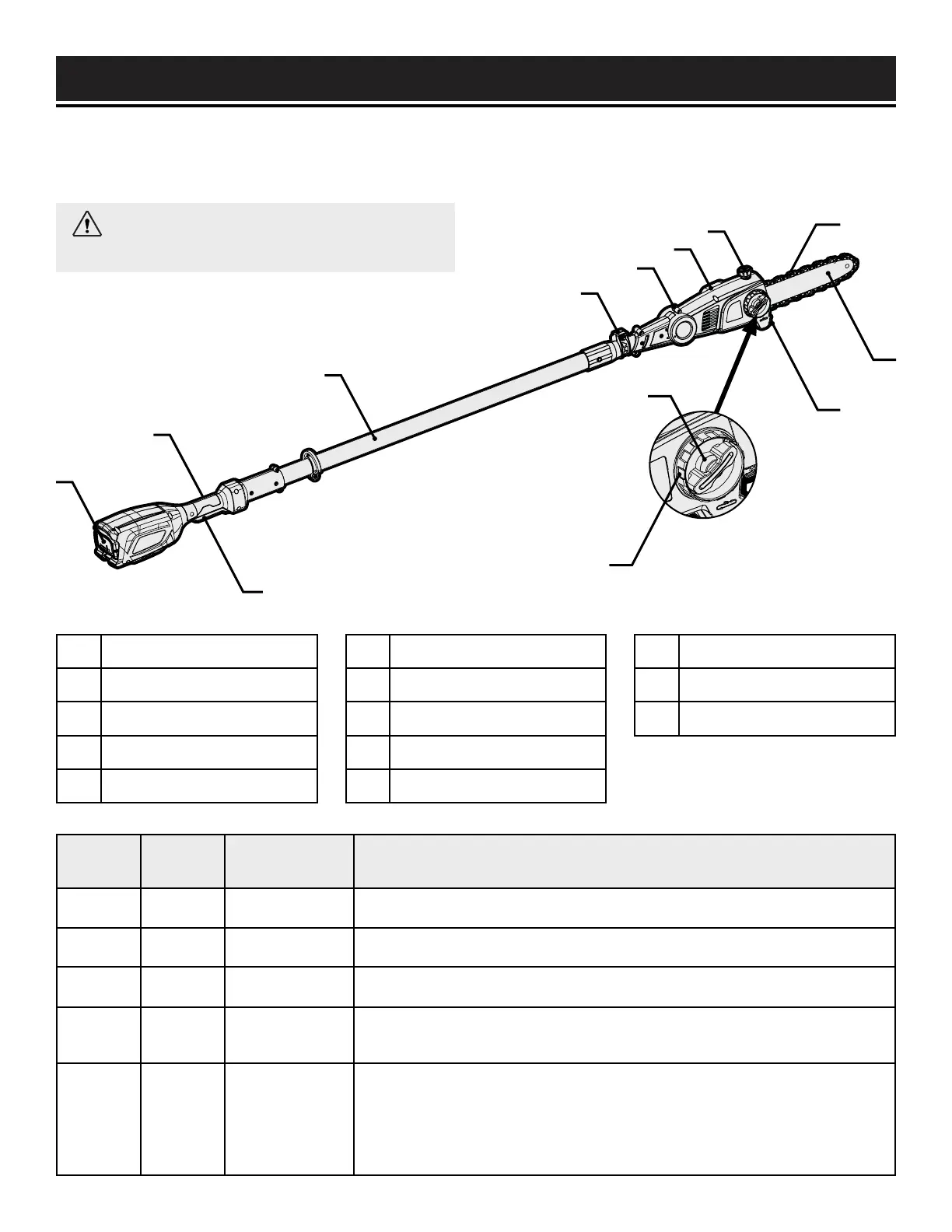

This pole saw is designed for limbing trees and cleaning up branches. Refer to the diagram below to
become familiarized with the parts and controls of your 40V Max Lithium Ion Cordless Pole Saw.
1 Battery Compartment
2 Safety Switch*
3 Trigger
4 Pole
5 Telescoping Release Clasp
6 Angle Adjustment Button*
7 Motor Housing
8 Oil Tank Cover
9 Saw Chain
10 Guide Bar
* Located on the left side of
the saw
1
2
9
3
Red
Light
Green
Light
Status Charger LED Light Details
On Off Standby
The battery is not connected and charger is in standby mode.
On Flashing Charging The battery is charging.
Off On Fully Charged The battery is fully charged and should be removed from the charger.
Flashing Off Error
There is a problem with the battery. Contact customer service at
1-800-232-1195 for assistance in replacing the battery.
Flashing Flashing
Temperature
Error
The temperature is either too high or too low. If the battery is warm, re-
move it from the charger for a few minutes to let it cool down. Once the
temperature returns to the normal temperature range (50°F - 104°F),
you can continue charging the battery.
Table A
11 Cover Release Knob
12 Tension Adjustment Knob
13 Stop Face (Ridges)
4
8
7
6
5
10
13
WARNING: When handling saw chains,
always wear protective gloves.
12
11
To Next Page
