Western CP600 - Standard Pivot Pad (Concrete)

CP600 Pivot Operation Manual
POM-EN-December 2018
93
* [ ] Indicates Metric, in millimeters (mm).
* Not Shown
1

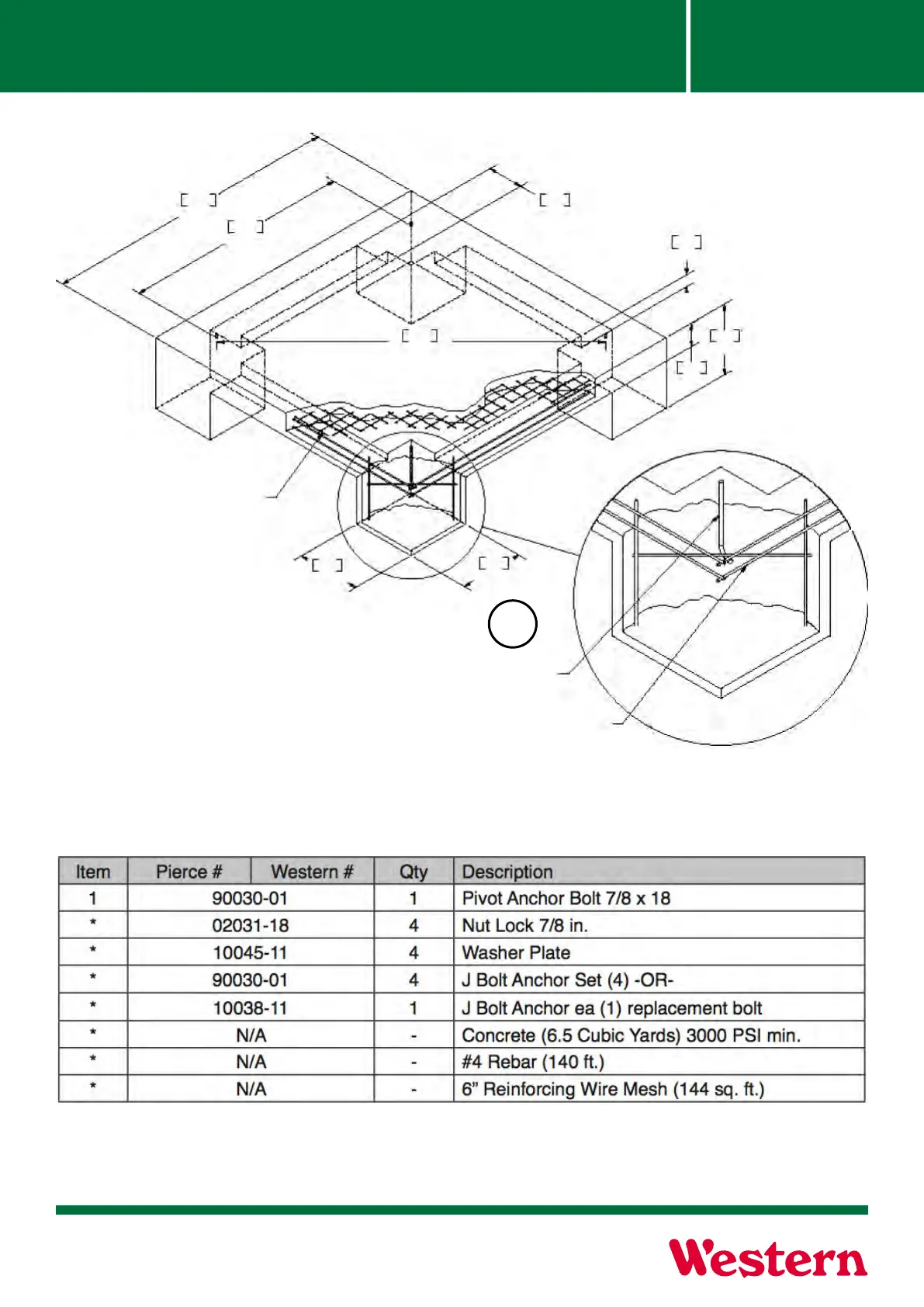

Figure 3-11.
3810
150”
2904
114 5/16”
457
18”
4106
161 11/16”
152
6”
914
36”
305
12”
6” REINFORCING MESH
7/8 X 18” J-BOLT
2” ABOVE SURFACE
#REBAR PERIMETER
813
32”
813
32”
93
93
93
Section 3-11
Getting Started
Standard Pivot Pad (Concrete)
