Note: The following maintenance procedures must be performed or the drivetrain warranty
will be void.
The nal drive wheel gearbox, center drive gear motor and the worm gear center drive require
pre-season maintenance. Please refer to the following service information for the above items.
If you should have any questions, please call your Western Dealer or Customer Service Represen-
tative.
FINAL DRIVE GEARBOX MAINTENANCE PROCEDURES
A. The nal drive gearbox must be serviced as follows after each crop cycle:
1. Inspect input and output shaft seals for leakage. Should either the input or out put shaft
show excessive leakage, the seals should be replaced. All replaced seals must be installed
with generous amounts of #2 Barium/Lithium based grease or use equivalent quality #2 wa
ter-resistant grease.
2. External (dust exclusion) seals should be used to keep dirt and water out of internal seal lo
cations. If the external seals are damaged or worn, replace with new seals.
3. The seal drain hole located on both input caps must be kept clear of dirt. Clear the hole with
a 12-gauge wire, nail or punch. Rotate the tool to loosen and remove dirt. Make sure the
vent hole in the expansion chamber is free of dirt or debris.

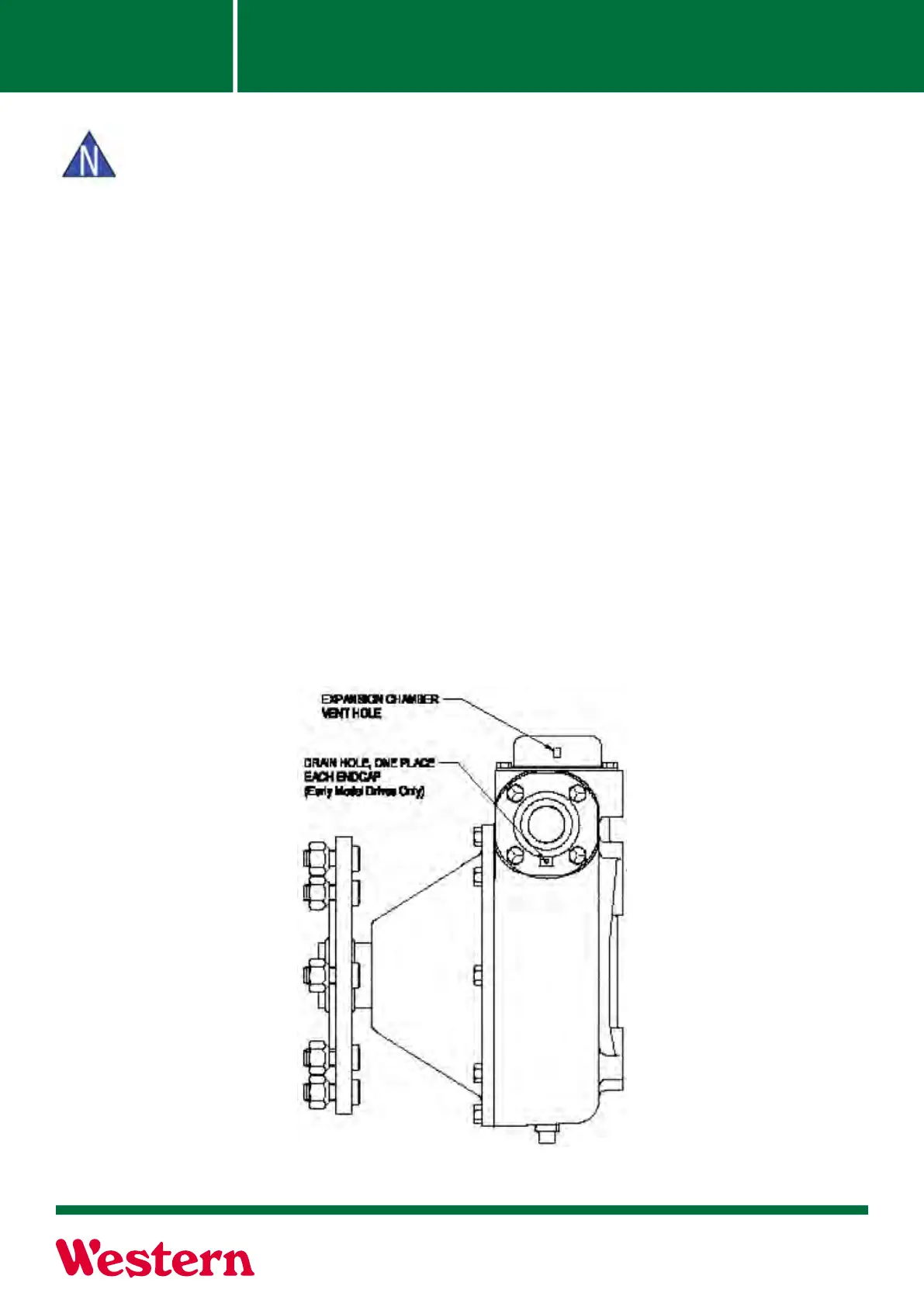

Figure 1-12.
Section 1-12
