COMPONENT ACCESS
French-Door Boom Mount Refrigerator
n
3-13
Thermistor and Possible Frost Build-Up (Continued)

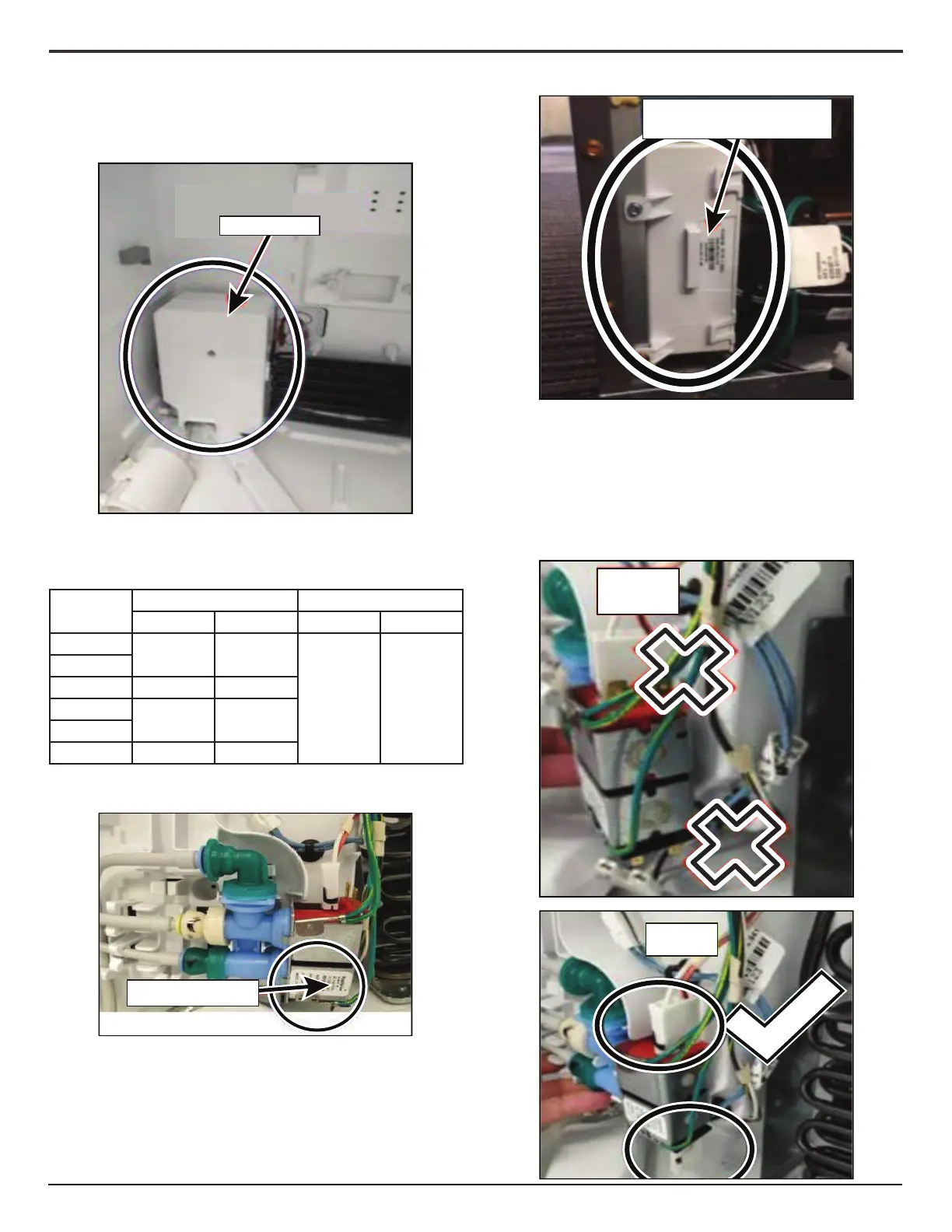

8. For Water Valves:
• On the unit, check the part# of the dual water valve
located behind the water box cover as shown in picture
below:
• Check the table below and idenfy the right part# for the
correct water valve and Orion board corresponding to
model# of the unit:
Model  
   
WRF992FIF*
W10873533 W10918843
W10853040 W10908836
WRF993FIF*
WRF995FIF* W10873534 W10918845
KRFC604FS*
W10789117 W10918848
KRFC704F*
JFFCC72EF* W10789117 W10918848
• Replace the water valve and Orion board with new part
numbers.
• Ensure that all the tubes are fully inserted into the water
valve. There is an O-ring inside the valve if the tube is not
fully inserted pass the O-ring it may cause water leak.
• Ensure the electrical connectors are connected and not
le disconnected as shown below.
• Before pung the water box cover on, dispense water by
closing the le hand door and observe that there is no
water leaking during the water dispensing.
Water Box Cover
Water Valve Part Number
Location of Orion board
and Part Number label
Bad
Good
