Phantom Series
SIDE BLOWER ORIENTATION INSTRUCTIONS, CONTINUED

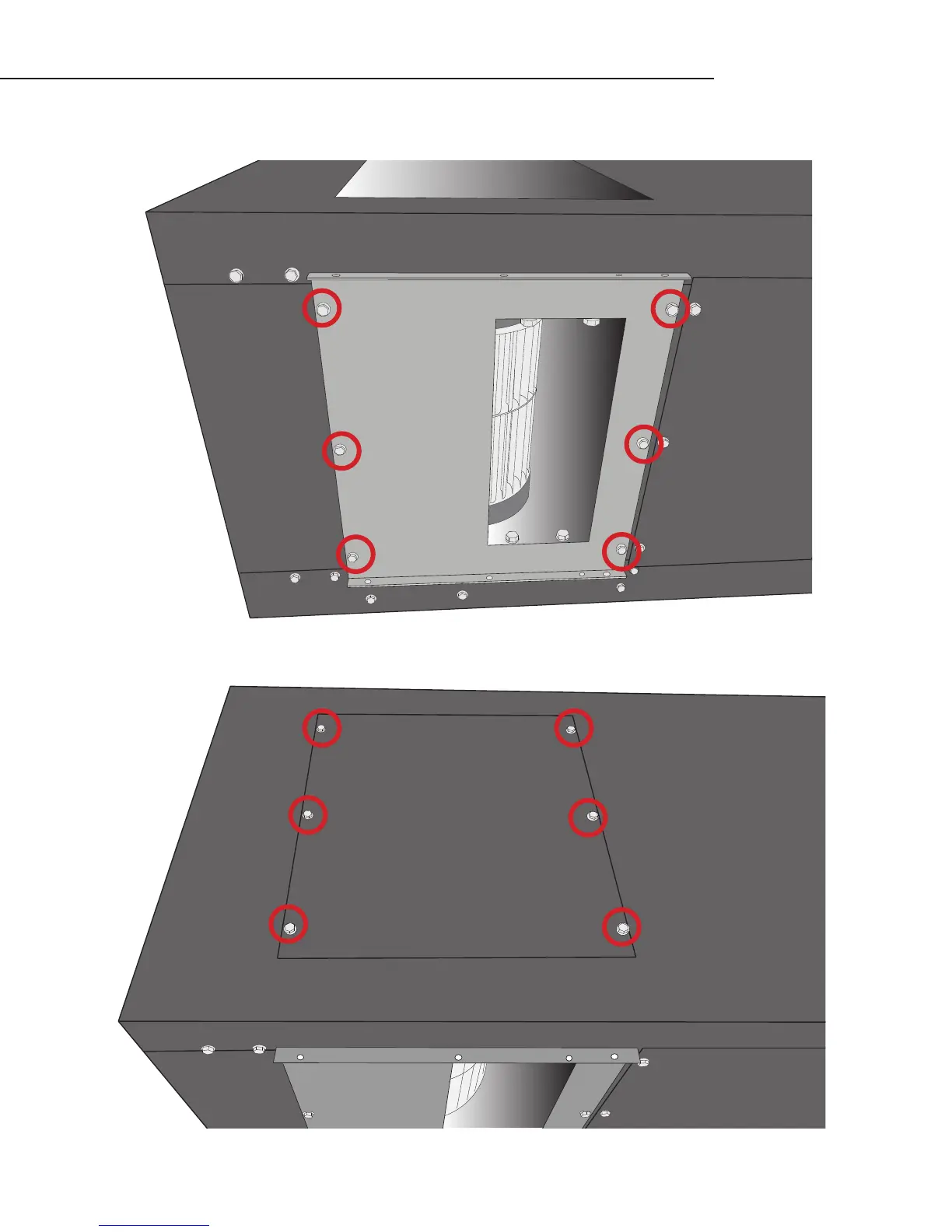

6. Reinstall the blower in the desired location and reinstall the supply panel using screws removed earlier. Use a low torque set-
ting on the drill to avoid stripping the holes. Ensure that the blower remains in the orientation shown.
7. Reinstall the previously removed side panel in the old blower location using screws removed earlier. Use a low torque setting
on the drill to avoid stripping the holes.
SIDE VIEW
TOP VIEW
