Phantom Series
All units come with a drain line for additional removal of excessive condensate. It is mandatory to install the drain line with a “tee”
tting. During operation, the cooling unit will strip excess water from the air. However, in extreme humidity, additional condensate
will be removed. The drain line will prevent overow and leaking by allowing for discharge of the additional condensate.
CONDENSATION DRAIN LINE
The condensation drain line tube is used to drain excess condensation from the unit to a proper discharge location. It is
important that the drain line tube be properly connected in order to prevent leakage and other problems associated with excess
condensation.
Failure to use the condensation drain line tube will void the warranty on the unit.
WRONG: Drain line is under water.
Phantom Drain Line Installation
1. Wrap a barbed tee with Teon tape one or two turns clockwise.
2. Next, thread the barbed tee into a drain port and rotate until tight. Make sure the barbed parts of the tee are vertical.
3. Next, attach a piece of ½" ID clear plastic tubing to the lower barb of the tee.
4. Every six weeks, disconnect the drain line from the tee. Remove the tee from the drain ports and clean the tee. Then use the
supplied drain line brush to clean the interior drain line (see drain line information on page 31). Drop a pan tab into the drip tray
to prevent the buildup of microbial growth.
To prevent mold from growing, allow the drain line to hang above the water line.

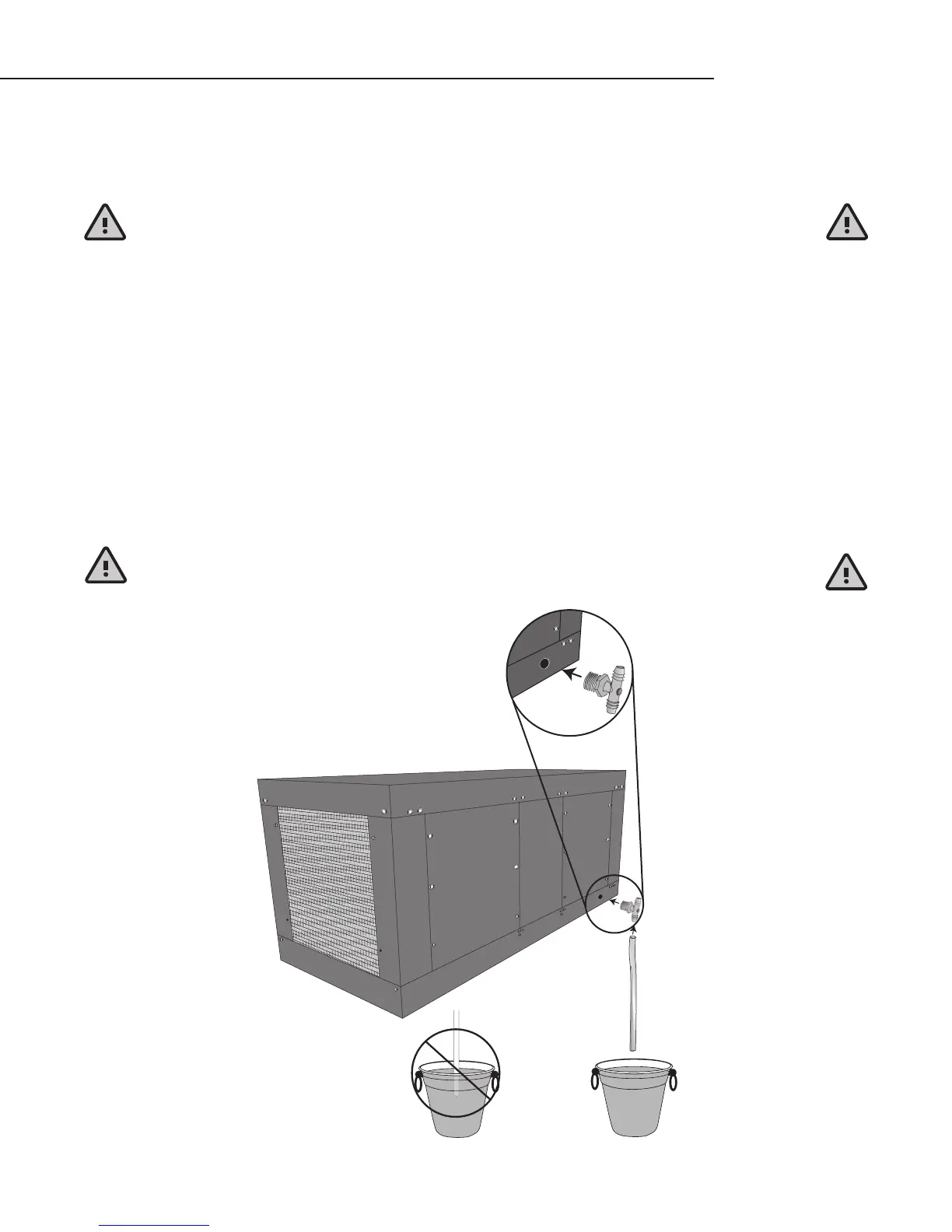

Right Side View
Expanded Drain Line View
