Phantom Series

PLENUM INSTALLATION, CONTINUED

3. Seal all seams with foil tape.

SUPPLY PLENUM:

1. Fit plenum over exposed anges.

Align Screw

With This Arrow

Align Screw

With This Arrow

Slide Plenum To This Dashed Line

FLANGES

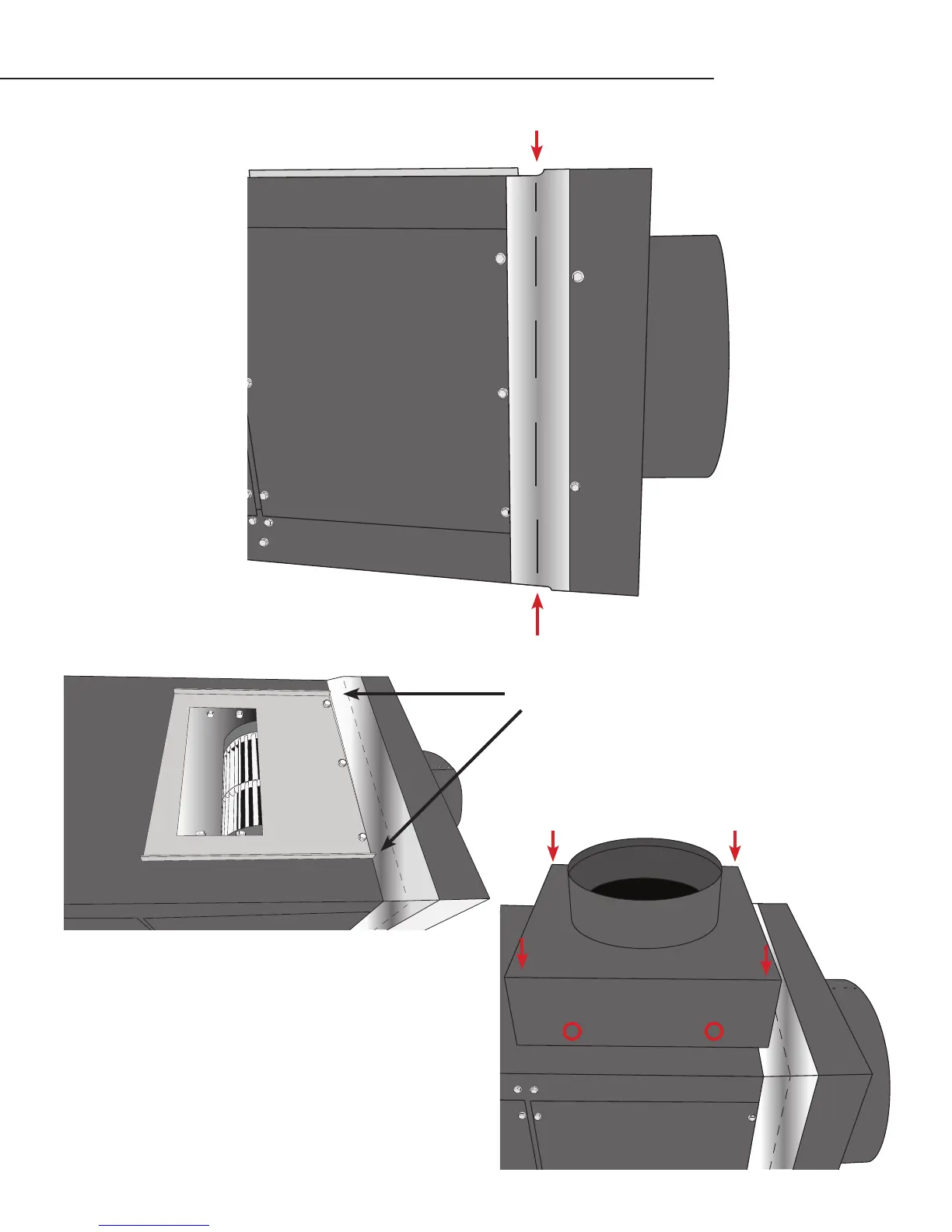

Fig. 1 - ange detail

Fig. 2 - placement of plenum

Pre-drill two (2) ⁄" holes in

the locations shown.
