Venting Options
The Advantage Plus may be connected to an existing flue or by installing listed type “L” vent pipe. If a
liner is run all the way to the top of the existing chimney, the existing flue should be sealed with a steel
plate. Start a vertical run with a Tee at the back of the stove. Other options are illustrated below.

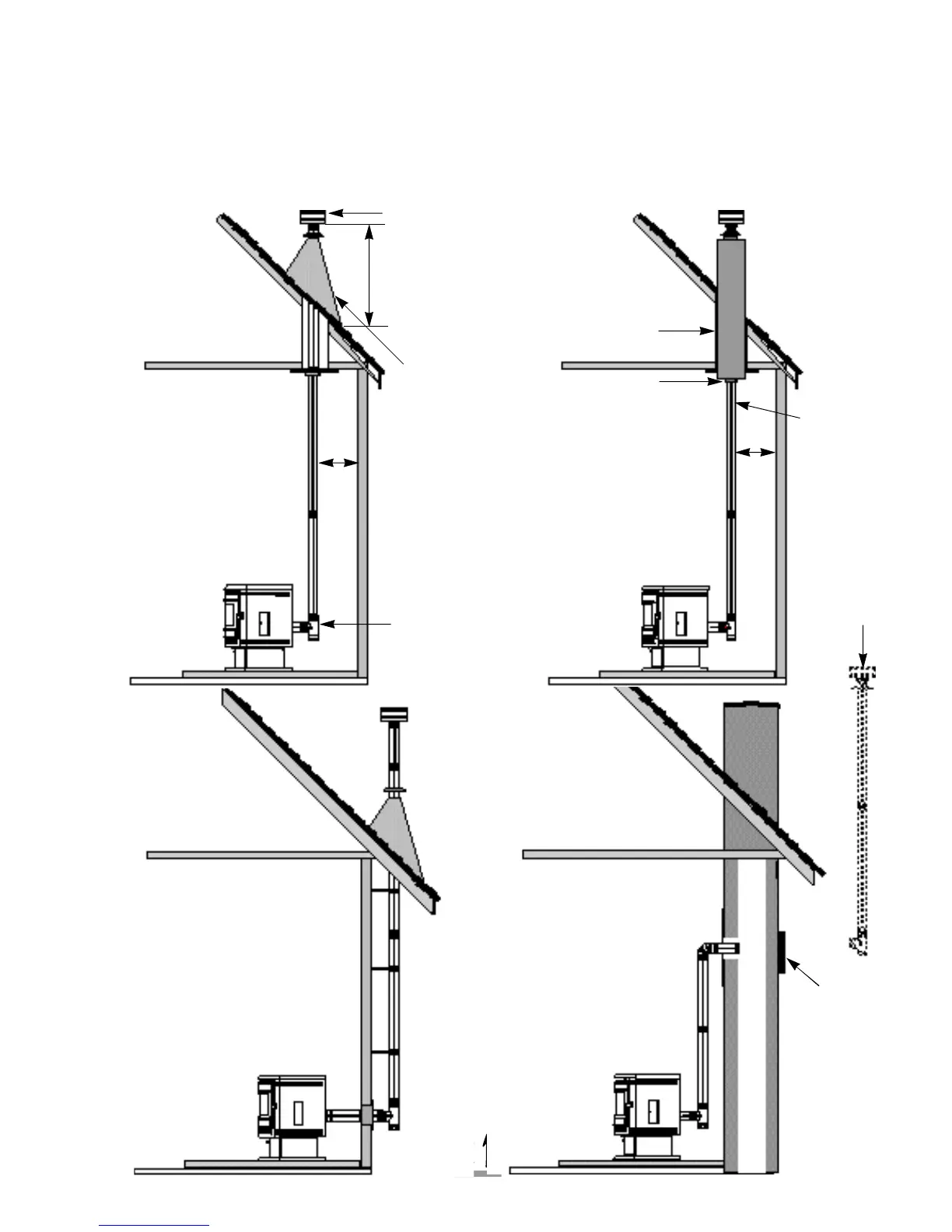

Installation Configurations (Cont’d)
Vertical Vent into
a Masonry Flue
Exterior
Vertical Vent
Optional
Complete
Liner
Optional
Clean out
Door
Interior
Vertical Vent thru
Ceiling & Roof.
Interior Vertical
Vent into Existing
Class A Chimney.
Existing
chimney
pipe
Pipe
increaser
Clean Out
Tee
Flashing
24”
Minimum
Length
Rain Cap
Extend pipe to
the top if
existing chimney
is corroded
or damaged
3”
Min.
3”
Min.
Keep attic
Insulation away
from Pipe
