Accessories en
Installation and operating instructions Wilo-Stratos PICO 23
LED Faults Causes Remedies
E023 Short-circuit Motor current too high Request customer service
E025 Contacting/wind-
ing
Winding defective Request customer service
E030 Excessive temper-
ature of module
Temperature inside the
module too high
Check conditions of use
E036 Module defective Electronic defective Request customer service
If the fault cannot be remedied, contact a specialist technician or the Wilo customer
service.
12 Accessories
Accessories have to be ordered separately.
WARNING
Danger of injury or material damage from improper use!
• Never allow unauthorised work.
• Never carry out unauthorised conversions.
• Use authorised Wilo accessories only.
12.1 Wilo-Connect module
The pump can be equipped with all available Wilo-Connect modules (external modules).
If a module is used, the main menu is extended by the main menu item in the display:
External module
Settings for the respective module can be made here.
The respective settings are described in the display and in the documentation of the
Connect module.
Module installation
DANGER
Risk of fatal injury from electrical voltage!
Immediate risk of fatal injury if live components are touched.
• Before commencing work, switch off the power supply and secure it from being
switched on again.
• Never reach into the open control module and never drop or insert objects into
the opening.
• Never switch on the pump if the cover or the external module is not properly at-
tached.
CAUTION
Moisture and leakage water can destroy the control module.
Only work on an open module in a dry environment.

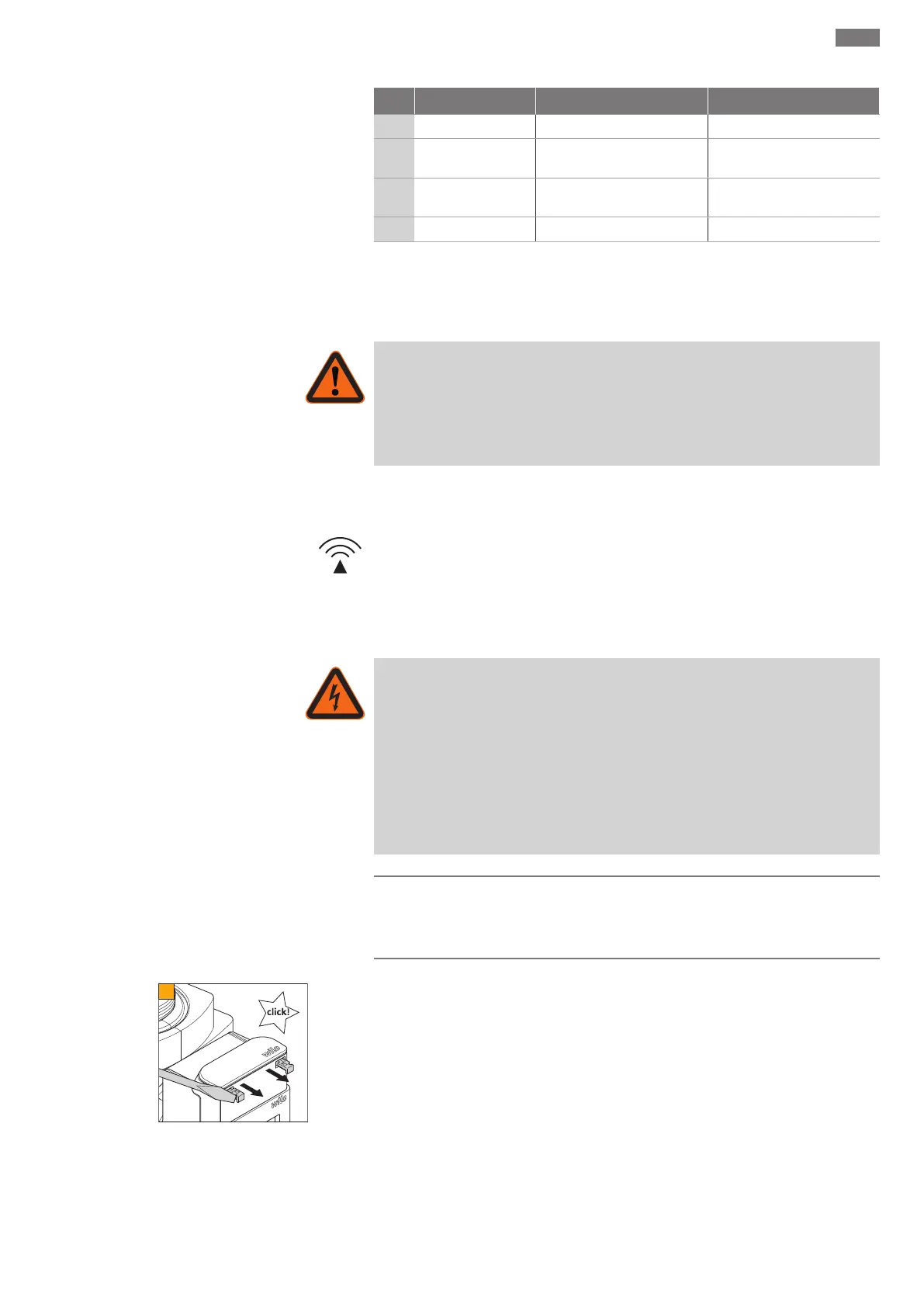

ƒ Open module cover
– Using a screwdriver, pull out the latches on both sides of the module cover.
To Next Page
