Wilo Stratos PICO User Manual

Pump operation en
Installation and operating instructions Wilo-Stratos PICO 11
PE
N
L
D
E
F
G
H
I

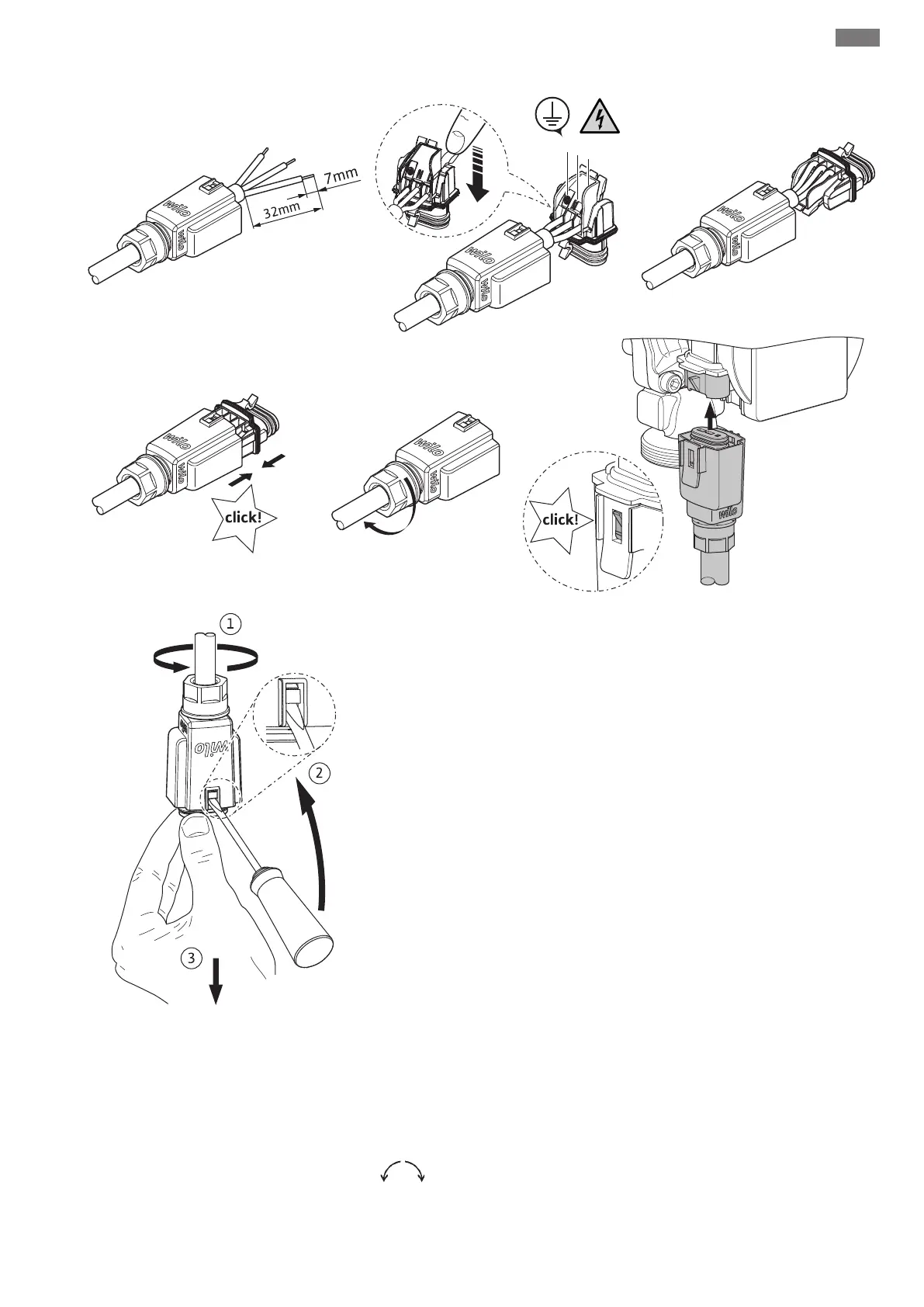

Fig.5: Installing the Wilo-Connector
Fig.6: Removing the Wilo-Connector
Connecting the pump
ƒ Earth the pump.
ƒ Connect the Wilo-Connector to the control module until it snaps into place
(Fig.5f).
ƒ Activate the power supply.
Removing the Wilo-Connector
ƒ Disconnect the connecting cable from the power supply.
ƒ Remove the Wilo-Connector from the pump using a suitable screwdriver (Fig.6).
7 Pump operation
Operating button
Carry out settings by turning and pressing the operating button.
Turn: selecting the menu and adjusting parameters.

Wilo Stratos PICO Specifications

General

Voltage	230 V
Protection Class	IP42
Type	Circulator Pump
Energy Efficiency Index (EEI)	≤ 0.20
Pump housing material	Cast iron
Maximum operating pressure	10 bar
Motor Class	F
Application	Heating systems
Operating Modes	Proportional pressure
Motor Protection	Integrated
Impeller material	Plastic
Shaft material	Stainless steel
Bearing material	Carbon, metal impregnated
Power supply	230 V/50 Hz
