English
90 WILO SE 05/2015
5.1.0.0 Multi pump Double pump Only displayed when DP is
active (incl. sub-menus)
5.1.1.0
Operating mode Main/standby mode Only displayed for double
pump master
Parallel operation Only displayed for double
pump master
5.1.2.0
Setting, MA/SL Manual converting from master
to slave mode
Only displayed for double
pump master
5.1.3.0
Pump cycling Only displayed for double
pump master
5.1.3.1
Manual pump
cycling
Carries out pump cycling inde-
pendent of the countdown
Only displayed for double
pump master
5.1.3.2 Internal/external Internal pump cycling Only displayed for double
pump master
External pump cycling Only displayed for double
pump master, see “AUX” ter-
minal
5.1.3.3
Internal: Time
interval
Can be set between 8 h and 36 h
in 4 h steps
Displayed when internal
pump cycling is activated
5.1.4.0
Pump enabled/dis-
abled
Pump enabled
Pump disabled
5.1.5.0 SSM Individual fault signal Only displayed for double
pump master
Collective fault signal Only displayed for double
pump master
5.1.6.0
SBM Individual readiness signal Is only displayed for double
pump master and SBM func-
tion at readiness/operation
Individual run signal Only displayed for double
pump master
Collective readiness signal Only displayed for double
pump master
Collective run signal Only displayed for double
pump master
5.1.7.0
External off Individual external off Only displayed for double
pump master
Collective external off Only displayed for double
pump master
5.2.0.0
BMS Settings for Building Manage-
ment System (BMS) – building
automation
Incl. all sub-menus, only dis-
played when BMS is active
5.2.1.0
LON/CAN/IF-Mod-
ule
Wink/service
The wink function permits the
identification of a device in the
BMS network. A “wink” is exe-
cuted by confirmation.
Only displayed when LON,
CAN or IF-Module is active
5.2.2.0
Local/remote
operation
BMS local operation Temporary state, automatic
reset to remote operation
after 5 min
BMS remote operation

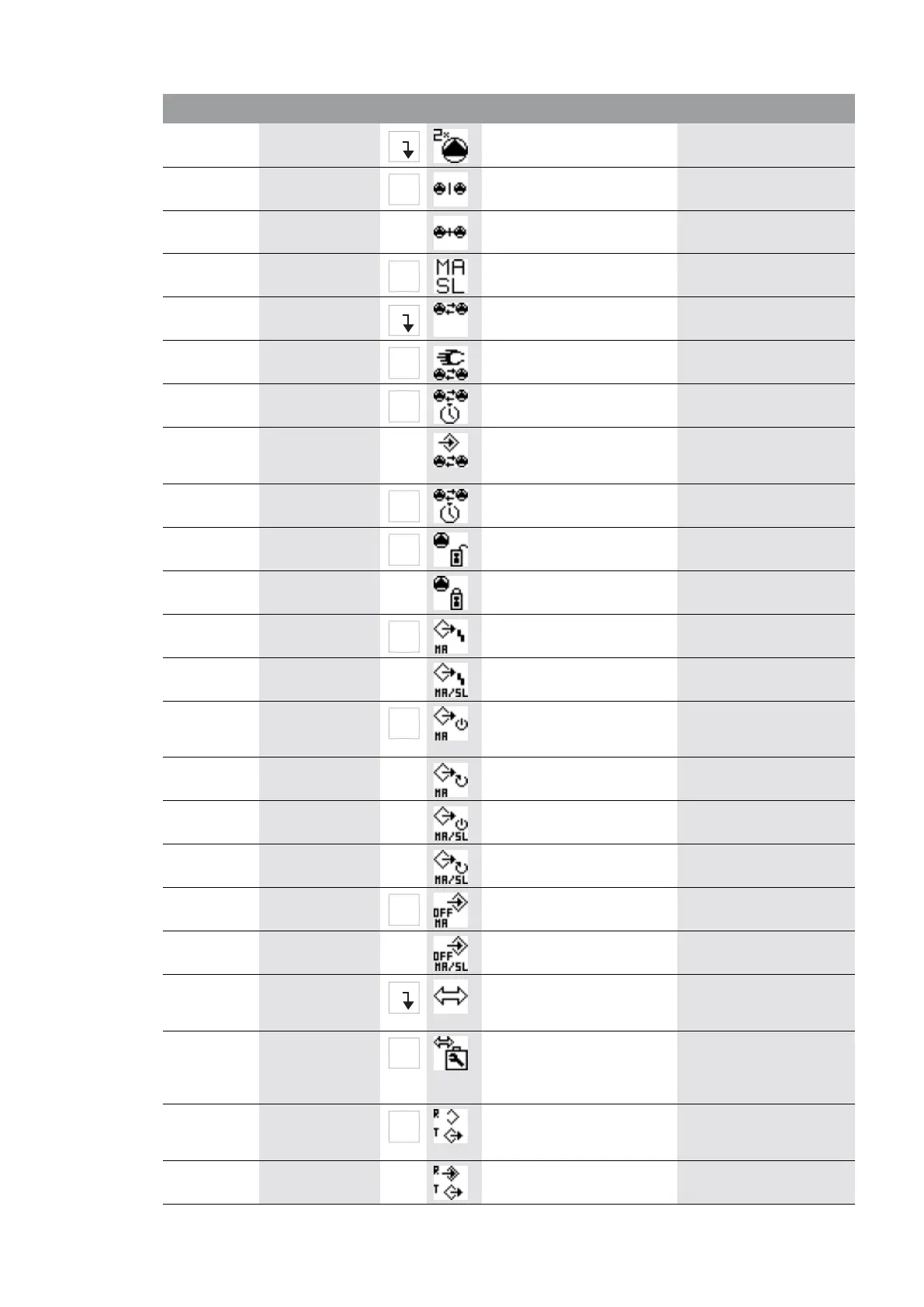

No. Designation Type Symbol Values/explanations Display conditions
±
±
±
±
±
±
±
±
±
±
±
