80 WILO SE 05/2015

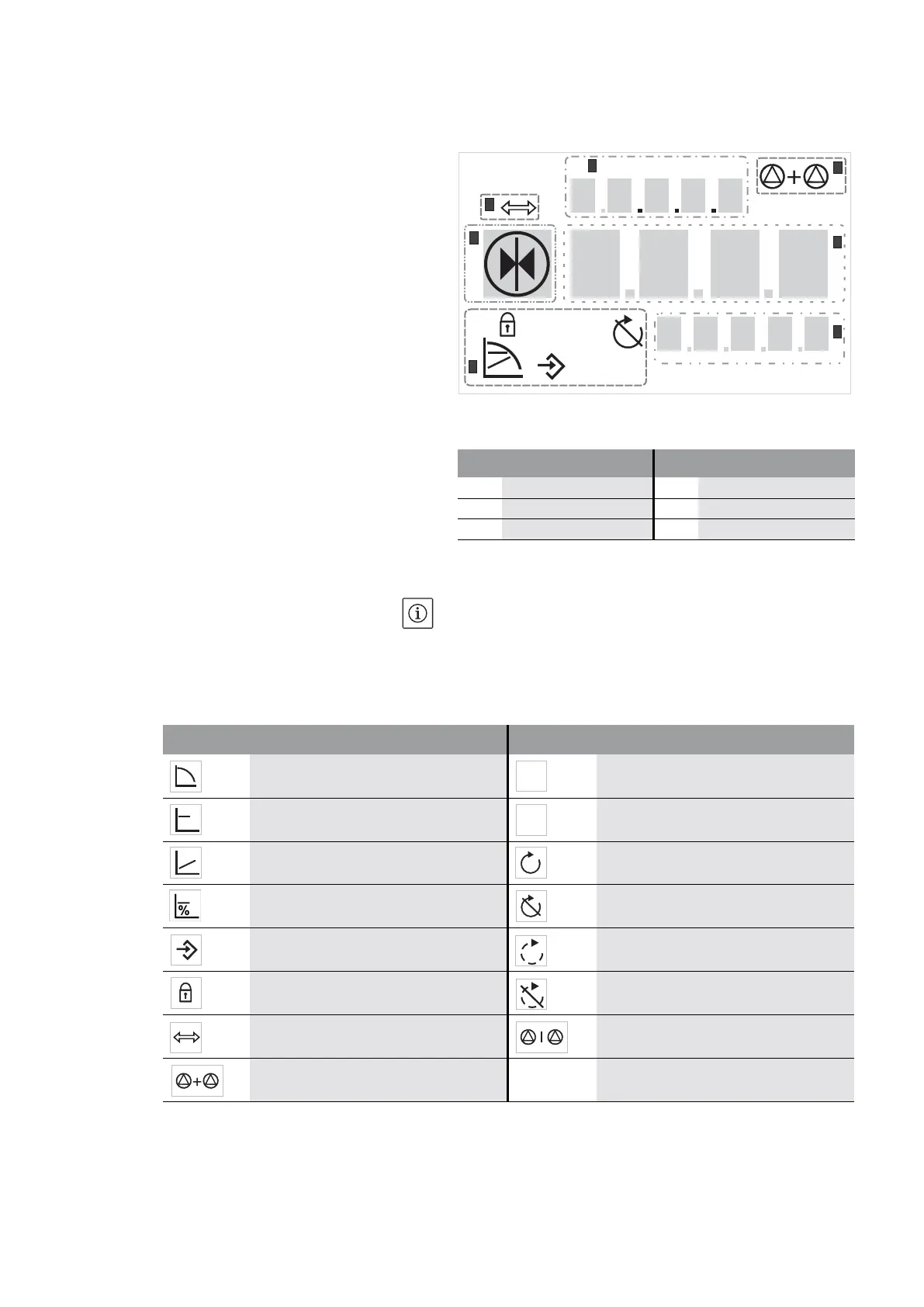

8.2 Display structure Information appears on the display as shown in the sample illustration
below:
Tab. 5: Display structure
NOTE:
The display can be rotated by 180°. To change, see menu number
<5.7.1.0 >.
8.3 Explanation of standard symbols The following symbols are shown on the display at the positions
shown above:
Tab. 6: Standard symbols
Fig. 27: Display structure
Item Description Item Description
1
Menu number 4 Standard symbols
2
Value display 5 Symbol display
3
Units display
max
min
2
1
5
2
3
4
4
4
1000
0002
RPM
Symbol Description Symbol Description
Constant speed control Min operation
Constant control
Δp-c
Max. operation
Variable control
Δp-v
Pump is running
PID control Pump stopped
Input In2 (external setpoint)
activated
Pump running in emergency operation
(icon flashes)
Access disable Pump stopped in emergency operation
(icon flashes)
BMS (Building Management System) is
active
DP/MP operating mode: Main/reserve
DP/MP operating mode:
Parallel operation
-
min
max
2
