Installation and operating instructions Wilo-VeroLine-IP-E, VeroTwin-DP-E 79
NOTE:
The terminals In1, In2, AUX, GND, Ext. Off and MP meet the require-
ment for “safe isolation” (in acc. with EN61800-5-1) to the mains
terminals, as well as to the SBM and SSM terminals (and vice versa).
NOTE:
The control is designed as a PELV (protective extra low voltage) cir-
cuit, meaning that the (internal) supply meets the requirements for
safe supply isolation; the GND is connected to PE.
Differential pressure sensor connec-
tion
Tab. 4: Differential pressure sensor cable connection
NOTE:
The electrical connection of the differential pressure sensor is to be
fed through the smallest threaded cable connection (M12) on the
electronic module.
For a double pump or Y-pipe installation, the differential pressure
sensor is to be connected to the master pump.
The measuring points of the differential pressure sensor of the master
pump must be on the suction and pressure side of the double-pump
system in the respective collector pipe.
Procedure • Establish connections observing the terminal allocation.
• Earth the pump/installation in accordance with the regulations.
8 Operation
8.1 Operating elements The electronics module is operated using the following operating ele-
ments:
The red button
The red button (Fig. 25) can be turned to select menu elements and
used to change values. Pressing the red button activates a selected
menu element and confirms values.
DIP switch
The DIP switches (Fig. 9, Item 6/Fig. 26) are located under the housing
cover.
• Switch 1 is for switching between the standard and service mode.
For additional information, see chapter 8.6.6 “Activating/deactivating
service mode” on page 85.
• Switch 2 allows activations or deactivation of the access disable fea-
ture.
For additional information, see chapter 8.6.7 “Activating/deactivating
access disable” on page 86.
• Switches 3 and 4 permit termination of the multi-pump communica-
tion.
For additional information, see chapter 8.6.8 “Activating/deactivating
termination” on page 86.
Cable Colour Terminal Function
1 Black In1 Signal
2 Blue GND Mass
3 Brown + 24 V + 24 V

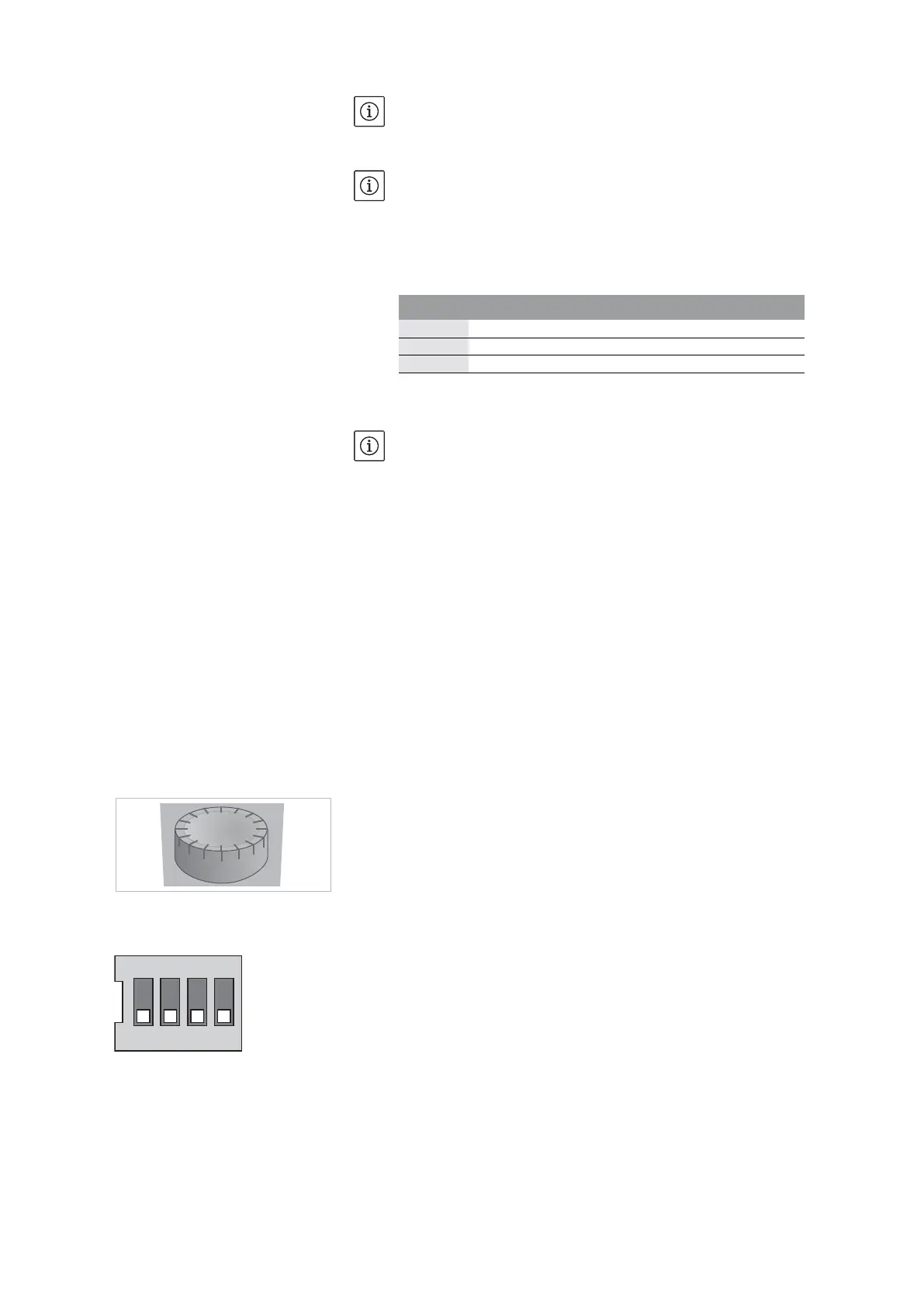

Fig. 25: The red button
Fig. 26: DIP switch
1234
ON
