Wilo VT - Page 12

Installation and operating instructions WILO Mather and Platt – VT pumps 12

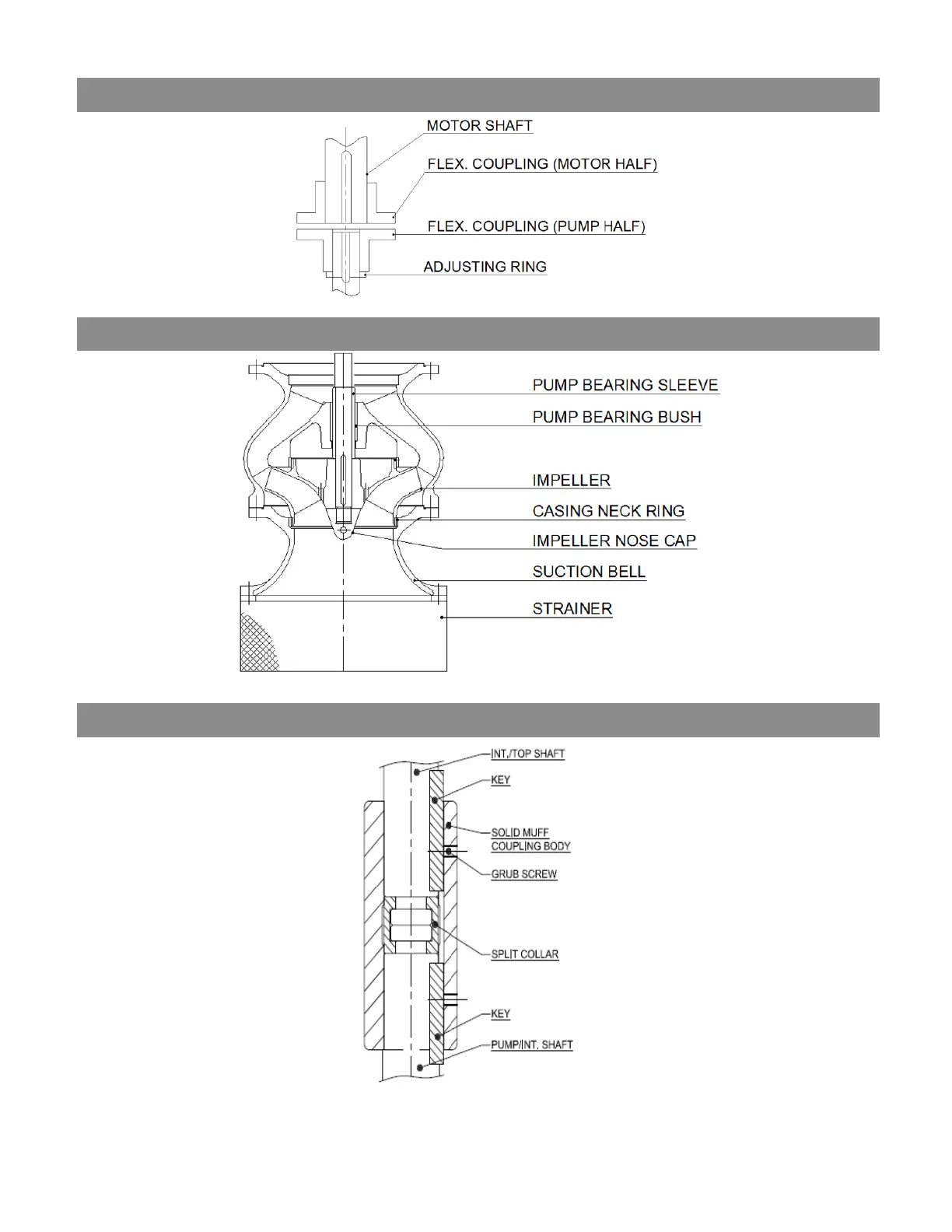

Fig. 16: Details of Flexible coupling (Page No. 23 & 28, Point No. 6.2 & 8.6)
Fig. 17: Details of Bowl assembly (Page No. 21, Point No. 5)
Fig. 18: Details of Muff coupling assembly (Page No. 23 & 27, Point No. 6.4 & 8.3)
