2. For the Installer
2.9 Fitting reserve supply container cover (only BioWIN Klassik)

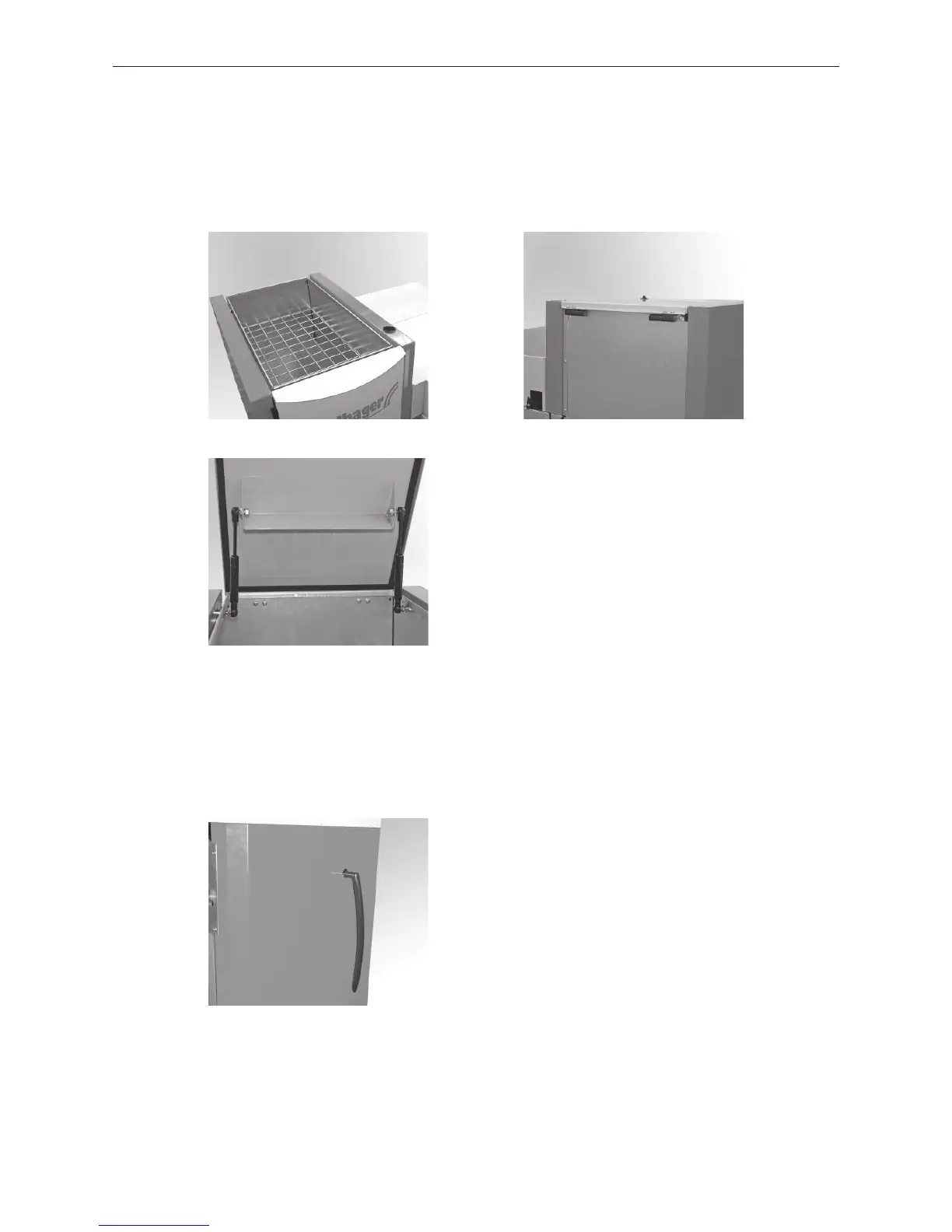

– Insert protective grille in reserve supply container – Fig. 50.
– Fit both belts (bearings) with pre-fitted cover on reserve supply container (remove plug beforehand) – Fig. 51.
– Fit gas springs on reserve supply container – Fig. 52.
Fig. 50 Inserting protective grille Fig. 51 Fitting belts (bearings)
Fig. 52 Screwing on gas springs
2.10 Fitting cleaning lever (only BioWIN Klassik and Premium)
Punch through cut-out in right-hand side wall for cleaning lever and attach cleaning lever for heating surface
cleaning on side for BioWIN Premium/Klassik – Fig. 53.
Fig. 53 BioWIN Premium/Klassik - view from right
