Windhager BioWIN - Pellet Feed Diagram (Buried Tank Mixer)

40
4. For the Service Technician

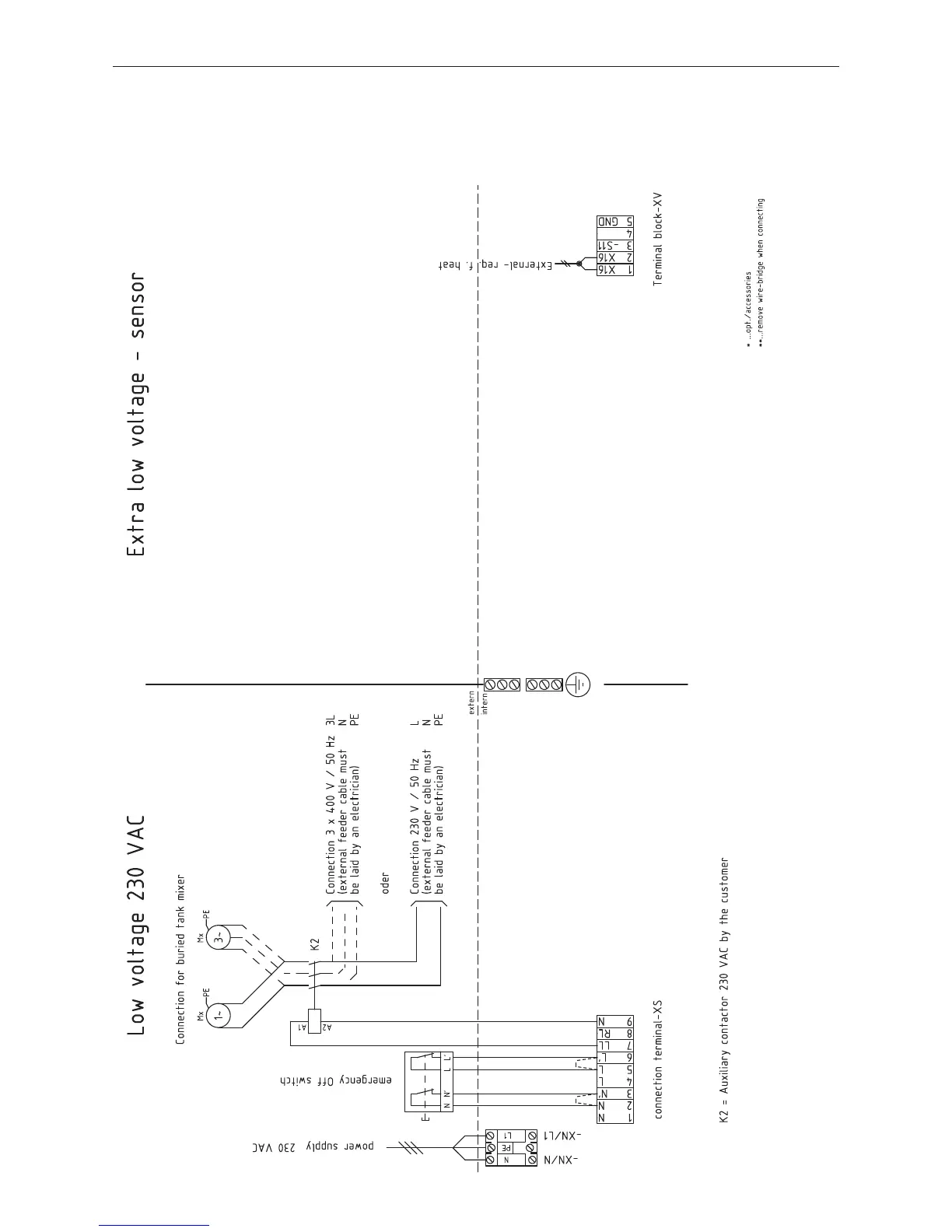

4.10 BioWIN 100-260 pellet feed connecting diagram with
mixer for buried tank
Operation with a mixer must be set on the service level – see section 4.6.1 Parameters; type of pellet feed system.
091673/00
