MAINTENANCE-CIRCUIT PROTECTION
86037660 CHARIOT 11/09/06
4-18
2
1

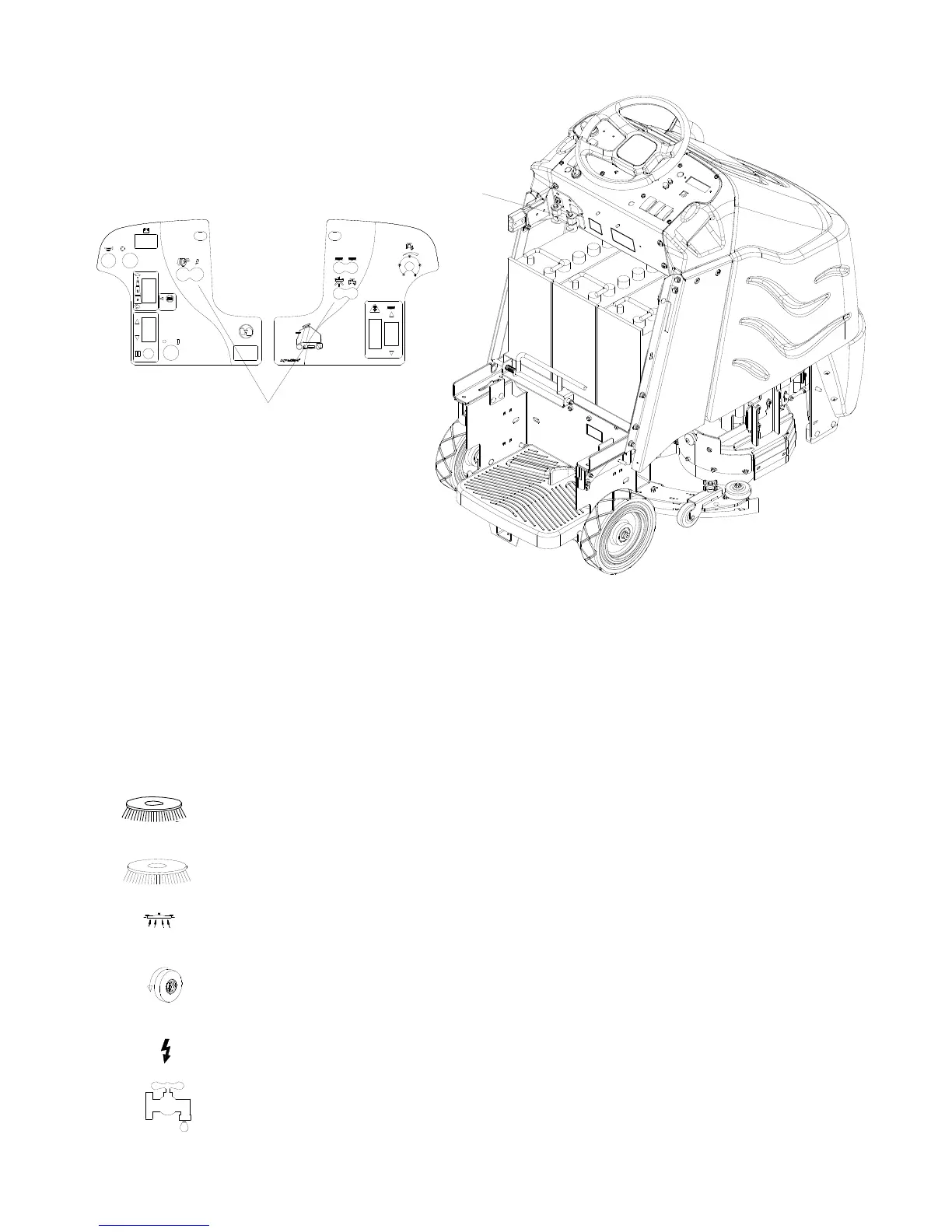

1. CIRCUIT BREAKERS (BASIC PANEL
SHOWN)
Circuit breakers interrupt the flow of power in the
event of an electrical overload. When a circuit
breaker is tripped, reset it by pressing the
exposed button. If a circuit breaker continues to
trip, the cause of the electrical overload should
be found and corrected.
18 Amp. Protects the left scrub
brush motor.
18 Amp. Protects the right scrub
brush motor.
30 Amp. Protects the vacuum
motor (Basic only).
30 Amp. Cylindrical
25 Amp. Disk
Protects the propel motor.
3 Amp. Protects the machine
controls (Basic only).
3 Amp. Protects the pump
(Basic only).
2. FUSE (DELUXE ONLY)
The fuse is a one-time circuit protection device
designed to stop the flow of electrical current in
the event of an electrical overload. If fuse is
blown, it must be replaced.
The fuse is located inside the battery
compartment.
