MAINTENANCE-DRIVE MOTOR & BRAKE
86037660 CHARIOT 11/09/06
4-25
ELECTRIC PARKING BRAKE ENGAGEMENT
FOR SAFETY: Before leaving or servicing
machine, stop on a level surface, turn off
machine and remove key.
Electric Brake Engagement
This machine is equipped with an electric parking
brake.
The brake automatically engages and keeps the
machine from moving whenever the operator steps
off the platform or when emergency stop is engaged.
The brake has a mechanical over-ride that can be
engaged so machine can be pushed or towed
(slowly).
When the mechanical over-ride is engaged the
machine cannot be driven.

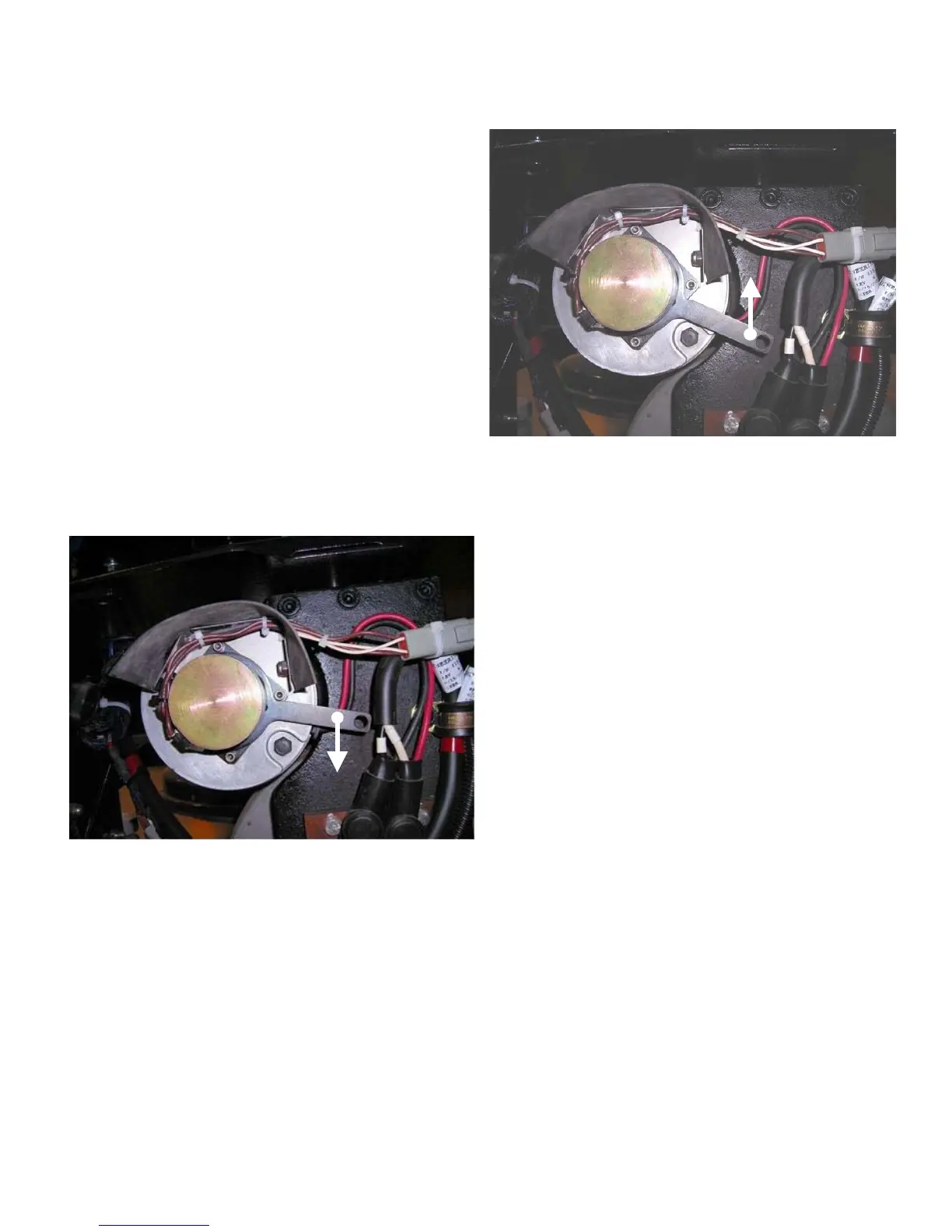

To engage brake:
1. Mechanical over-ride engaged.
Machine can be pushed or towed (slowly).
2. Push lever firmly in direction of arrow
Note: There is an intermediate stop. Make sure
lever is fully in the down position.
To disengage brake:
1. Mechanical over-ride disengaged
Machine can be driven.
2. Push lever firmly in direction of arrow.
