Maintenance
Onboard Charger (Optional)
Circuit Breaker must be off before unplugging
batteries or connecting the charger AC plug to a
wall outlet.
Le disjoncteur doit être coupé avant de débrancher
les batteries ou de connecter la fiche CA du
chargeur à une prise murale.

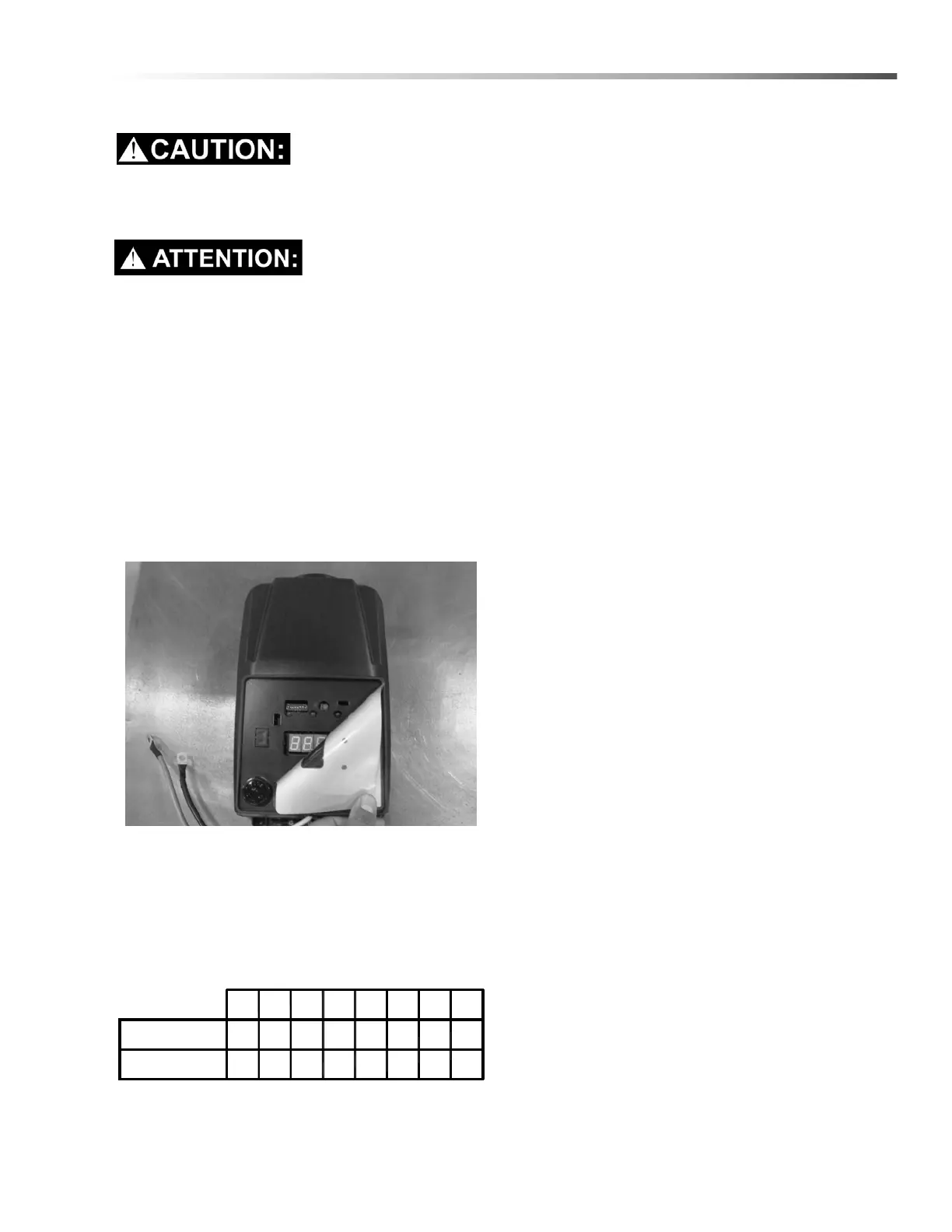

Battery Charger Programming
For machines equipped with optional on-board charger.
When replacing batteries, charger programming
changes may be required. If replacing batteries with
same type, (e.g. maintenance free batteries with main-
tenance free) no programming is required. If replacing
batteries with different type (e.g.maintenance free with
wet cell), programming changes are required. Failure to
make programming changes may lead to reduced
battery life.
1. Remove four nuts from charger mounting bracket.
Lift charger out of cover.
2. Peel back label on charger to access DIP switches.
3. Change switches to correct battery type.
4. Replace charger label and lower charger back into
cover. Tighten four nuts to secure charger to
mounting bracket.
1
234 56 78
DIP
DIP DIP DIP DIP DIP DIPDIP
LEAD ACID
DISCOVER AGM
OFF
ON ON OFF ON ON OFFON
ON
OFF OFF OFF ON ON OFFOFF
8.641-374.0 operator’s manual - chariot 3 - cv86/1 rs bp
