Maintenance
1132−2/A1
RT-flex58T-E
Winterthur Gas & Diesel Ltd.
9/ 14
4.5 Removal of main bearing shell No. 1

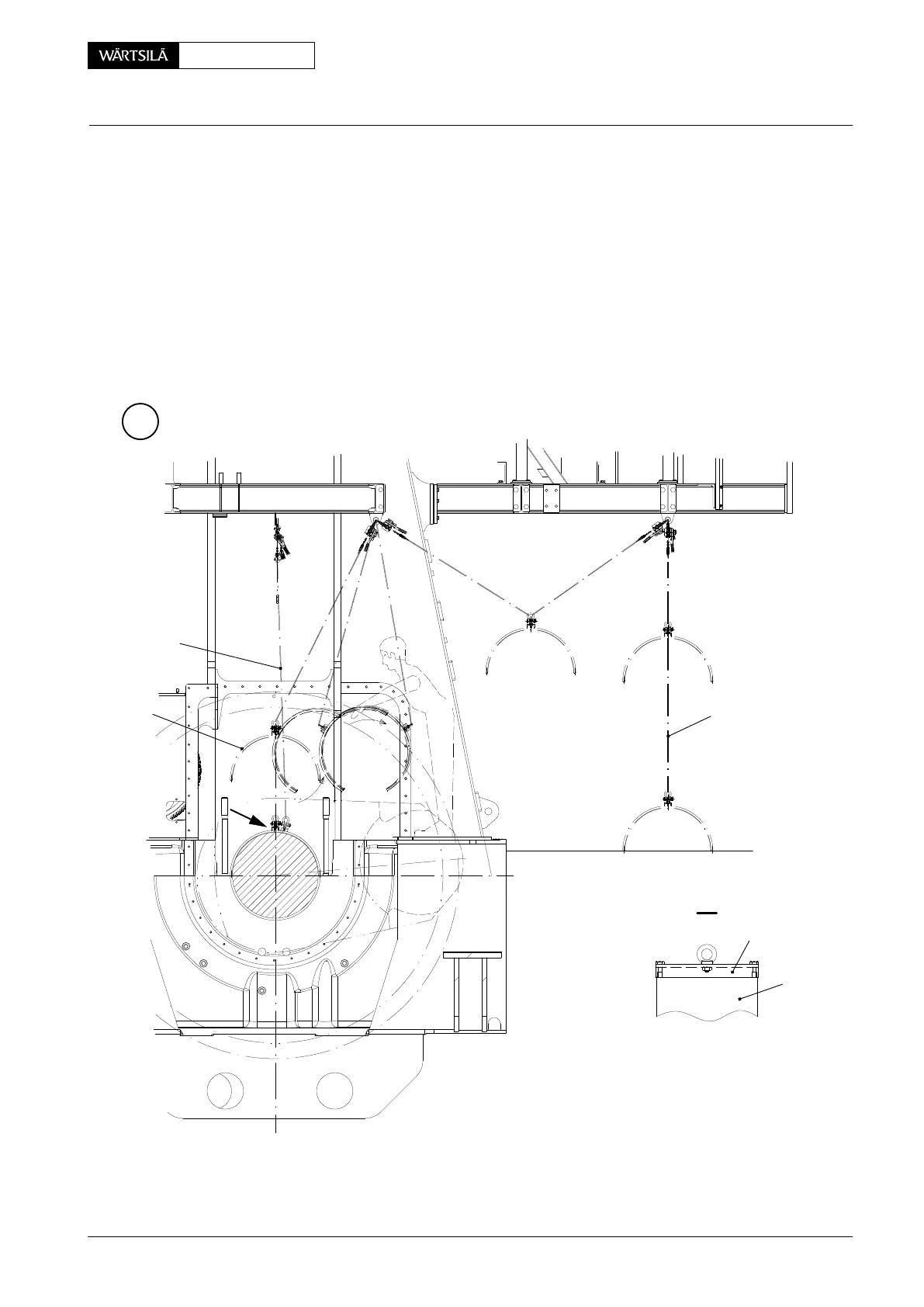

⇒ Fasten lifting tool 94116 to lower bearing shell 3.
⇒ Connect rope 94120B to manual ratchet ’H1’ and lift bearing shell 3.
⇒ Attach manual ratchet ’H2’ and connect it to lifting device 94116.
⇒ Lift bearing shell 3 as high as possible and move it to exhaust side.
⇒ Disconnect manual ratchet ’H1’ with rope 94120B and reposition it to gallery
support.
⇒ Move bearing shell using manual ratchets ’H2’ and ’H1’ out of column and
place it carefully on platform.
L
II
94116
II
94120B
3
94120B
3
H1
H2
H1
WCH01015
Removal and Fitting of a Main Bearing
V2 / 2013
