Maintenance
5564−1/A1
RT-flex58T-E
Winterthur Gas & Diesel Ltd.
3/ 4

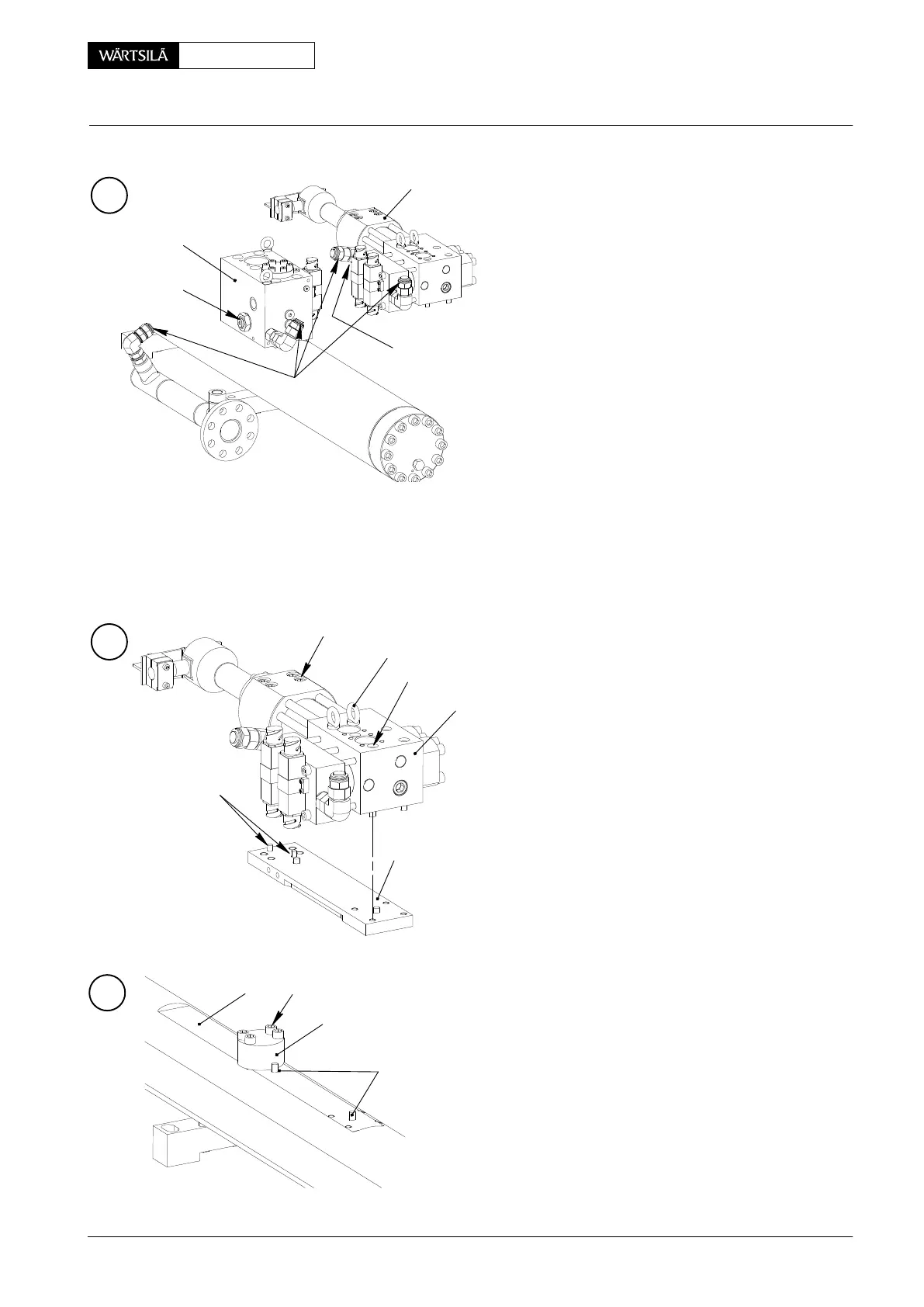

⇒ Close the unions with screw plugs 94585C/D.
⇒ Close the opening on the exhaust valve con-
trol unit 12 with capping end 94585E.
⇒ Remove the lip seal 11 on the underside of the
ICU with one of the withdrawing tools 94589.
⇒ Install two eye-bolts 94045-M8 as shown in
Fig. D.
⇒ Lift the injection control unit 1 and mount it on
the transport plate 94585A with two hex head
screws 9. Make sure the dowel pins fit cor-
rectly.
⇒ Clean the area on the fuel rail 10 around the
injection port (Fig. E).
⇒ Install the blind flange 94585B over the injec-
tion port and tighten the four oiled bolts 15
equally with 70 Nm.
⇒ Make sure the dowel pins 14 stay in the fuel
rail.
Injection Control Unit: Removal and Fitting
2014 / Mk III
C
1
WCH02590
94585E
94585C/D
12
11
D
1
6
WCH02590
7
94045−M8
94585A
9
E
WCH02590
15
94585B
10
14
