10-7
SECTION 10 –
SLIDEOUT ROOMS AND LEVELING
• The hydraulic pump is equipped with two sets
of hydraulic solenoid valves that control
different systems.
The large solenoid valves control the leveling
jacks.
The small valves contol the slideout rooms.
• The solenoid valves are opened by turning a
small 1/4” nut at the end of each valve shaft.
Pry out the protective plastic cap to access the
nut. (Replace cap after servicing.)
• Use the 1/4” nut driver built into the the end of
the shaft of the oil reservoir breather/fill cap as
shown.
• Open the slideout solenoid valves 3-4 turns to
relieve hydraulic line pressure.
See the Leveling System/Room Extension
Operator’s Manual in your InfoCase for
specific instructions on which valves to open
for front or rear slideout rooms and what
additional precautions to follow.

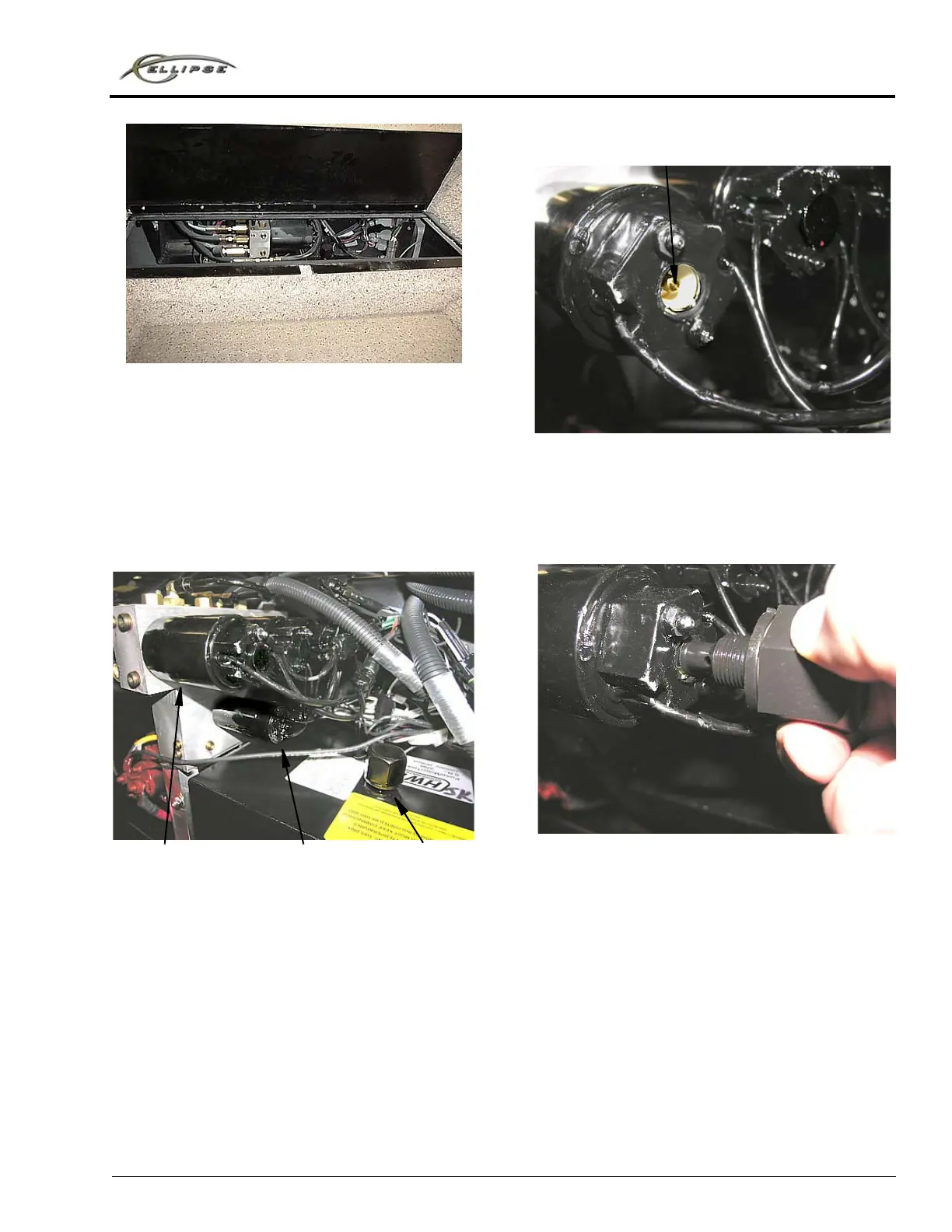

Hydraulic Pump
(Shown with storage bin removed)
Leveling/Slideout System Hydraulic Pump
(Note valve positions in relation to fluid reservoir)
Leveling Jack
Valves (Larger)
Slideout Room
Valves (Smaller)
Hydraulic
Oil Fill Cap
Use provided 1/4” nut driver to turn nut
counterclockwise 4 turns only.
Hydraulic Pump Solenoid Valve
Use 1/4” nut driver built into end of
dipstick on pump reservoir cap to open
slideout solenoid valves.
