SECTION 3 –
DRIVING YOUR MOTOR HOME
3-22
With the grille panel open, you can access the
following service points:
• Engine Oil Dipstick
• Engine Oil Fill Cap
• Power Steering Reservoir
•Radiator Cap
• Engine Coolant Reservoir
• Transmission Dipstick/Fill Tube
• Air Filter Restriction Indicator
• Engine Diagnostic Connector
ENGINE TOP ACCESS COVERS
– REAR
These covers are only removed if a complete
view of the engine is needed for inspection, or for
replacement or adjustment of upper engine parts.
The engine top covers are located beneath the
rear bed and wardrobe, depending on model.
Take precautions to protect carpet and interior
furnishings when removing engine covers. The
undersides of the engine covers could contain
deposits of oil and fuel or other engine fluids and
substances that could damage fabrics and interior
furnishings.
Models with “North-South” Beds
(Lengthwise to Coach)
• Remove the mattress from the bed and set
aside in another area of the coach.
• Remove the screws that fasten the foot end of
the bed board down to the bed base. (Note: If
bed is designed for storage below bed board,
these screws will not be present).
• Lift the hinged bed board upward against
wall. Support the bed board with a suitable
prop item as shown.

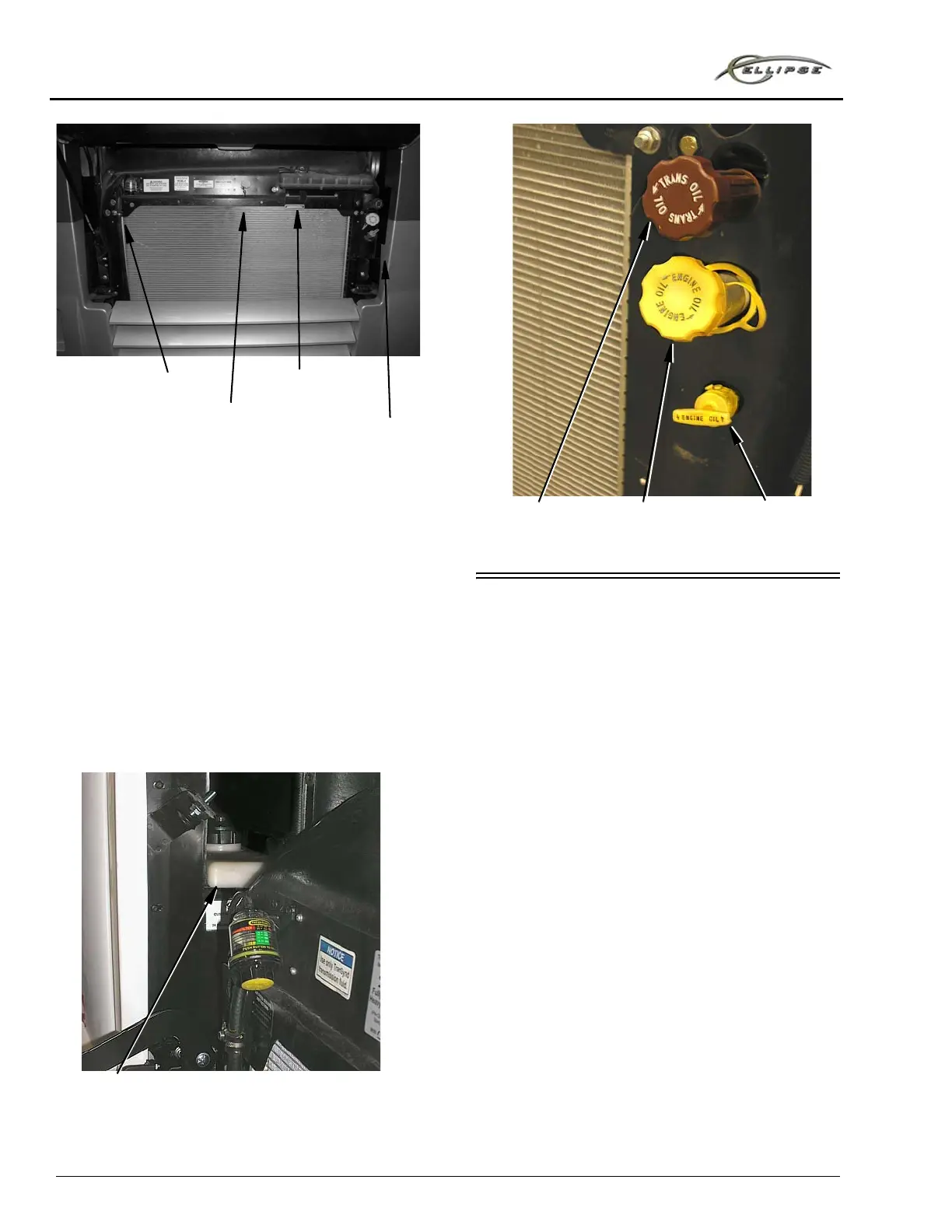

Engine Coolant
Reservoir
Air Filter
Restriction
Indicator
Engine Oil and
Transmission
Fluid
Engine
Diagnostic
Connector
Power Steering Fluid Reservoir in recessed area
at LH side of rear engine service compartment
Transmission Fluid
Fill/Dipstick
Engine Oil
Fill
Engine Oil
Dipstick
To Next Page
