SECTION 11 –
MAINTENANCE AND STORAGE
See the chassis manufacturer’s fuse allocation
chart on the inside of the fuse block cover.
Towing Fuses
The fuses for the chassis supplied towing
package are located inside the driver side rear
compartment.
CHASSIS DIAGNOSTIC
CONNECTORS
The chassis diagnostic connectors are located in
on the steering column support plate beneath the
dash and in the rear engine compartment as
shown in the following photos.

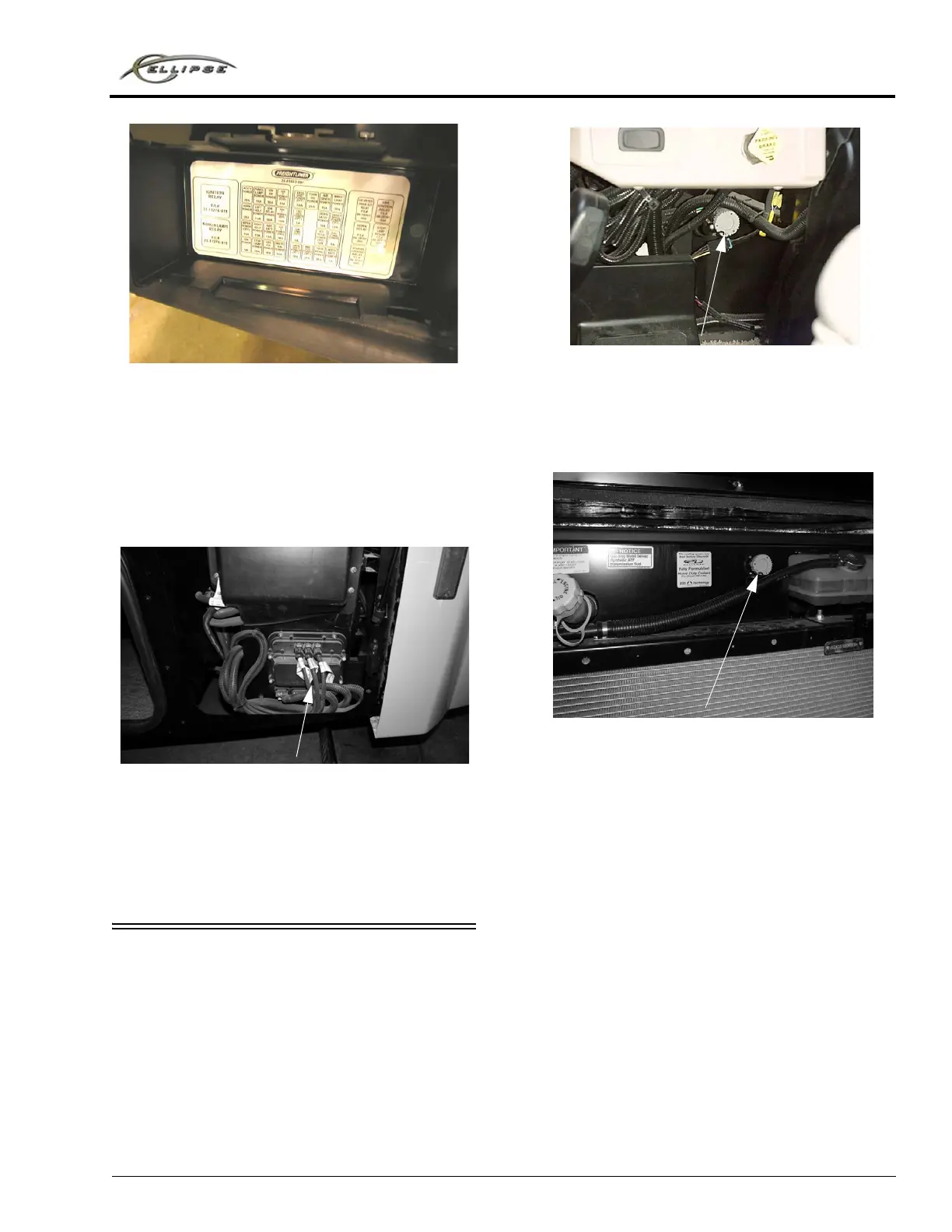

Fuse Diagram (inside of cover)
Towing Package Fuses
(Located in driver side rear compartment)
-Typical View
• See chassis manufacturer’s information on
inside of cover.
Diagnostic Plug
(Located on steering column support
beneath left side of dash)
-Typical View
Diagnostic Plug
(Located on rear engine
compartment shroud)
-Typical View
