Ignition Lockout System
The ignition lockout system will disable the
extend function while the vehicle ignition key is
in the On position. With this feature, the awning
will only extend when the vehicle ignition key is
in the Off position. The awning can retract
anytime regardless of the ignition key position.
Using the Key FOB Remote Control
To use, turn the system power On. The remote
lets you operate the awning from a convenient
location.
The remote has a maximum operating range of
50 feet. Actual distance may vary, depending on
the specific installation and location of the
receiver in the vehicle.
TO USE: Turn system power On at the control
panel.
NOTE: Power On/Off and the Auto-Retract
sensitivity can only be operated at the
control panel.
• Extend - Press and release. The awning will
extend out to the fully extended position and
stop automatically.
• Retract - Press and release. The awning will
retract and stop automatically when the
awning is fully retracted.
• Stop - Press and release. During extend and
retract functions, the awning may be stopped
by pressing this button.
Door Awning Switch
This is a two-position switch. The following
description also applies to any additional Door
Awning Switches that may be installed.
Extend - Press and hold the switch. The
awning will open as long as the switch is pressed.
Retract - Press and hold the switch until fully
closed.
NOTE: As a safety feature, the awning will not
extend if the ignition key is on.
Further Information
For complete operating instructions, refer to
the manufacturer’s information provided in your
InfoCase.
POWER AWNING (OVER THE
DOOR)
–If Equipped
To Open the Awning
Press and hold the Door Awning Switch
“Out” until the awning is in the desired position,
then release.
To Close the Awning
Press and hold the Door Awning Switch “In”
until the awning is in the stored position, then
release.
NOTE: As a safety feature, the awning will not
extend if the ignition key is on.
CAUTION
The Auto-Retract feature provides
protection against adverse elements, but
no Auto-Retract system is a guarantee
against severe or destructive weather.
The effects of wind and rain on an awning
are unpredictable and may cause severe
damage to the awning and/or vehicle. If a
situation arises where wind or extended
periods of rain are expected, retract the
awning.

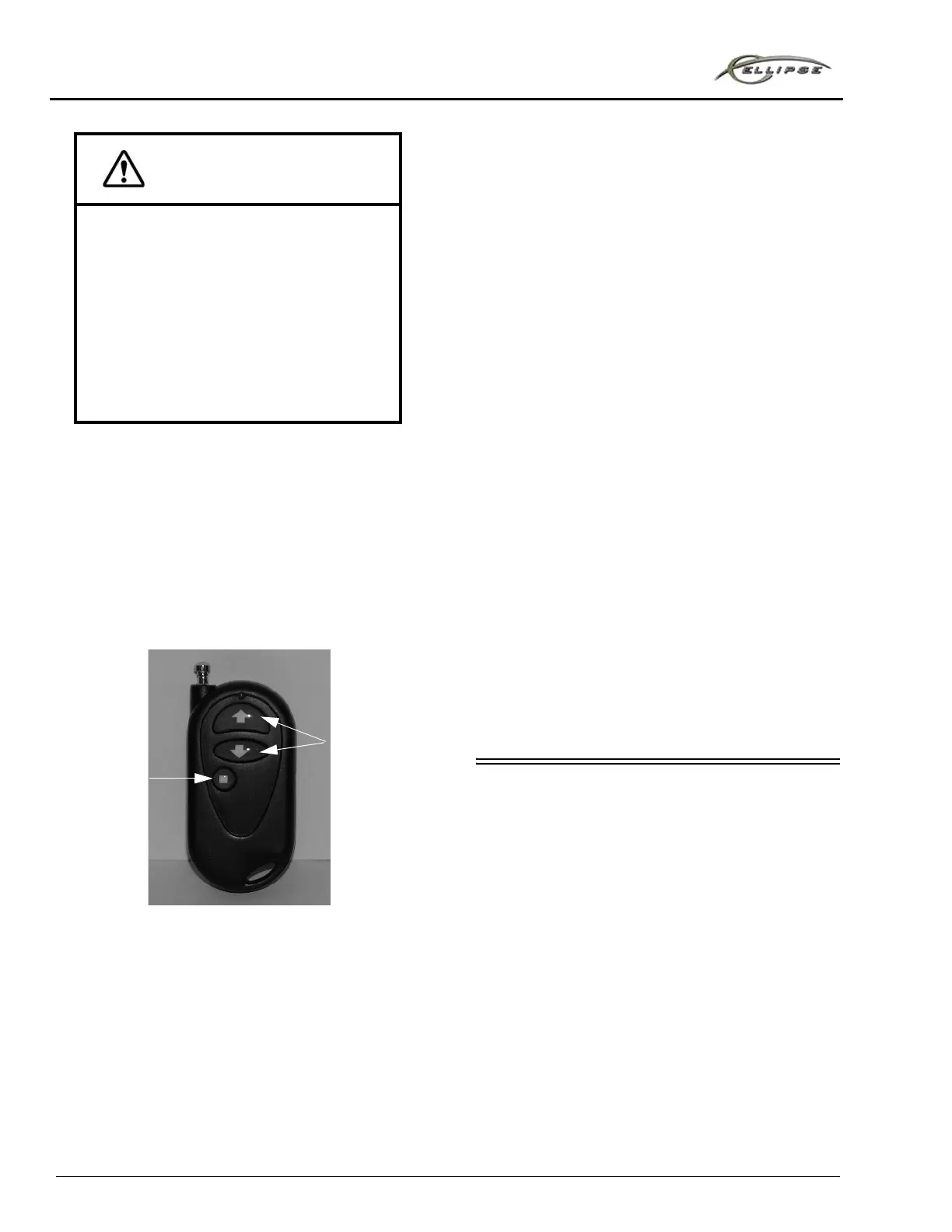

Function
Buttons
Stop
Button
Porch Awning Key FOB Remote
