3-7
SECTION 3 –
DRIVING YOUR MOTOR HOME
Mirror Heaters
The mirrors may also contain heating
elements to defog or de-ice the mirror glass
during cold weather operation. An ON-OFF
switch for the mirror heaters is located near the
remote mirror controls.
Mirror Arm/Head Adjustment
If you cannot adjust a mirror properly using
the control switch, the mirror may need a coarse
adjustment by repositioning the mirror arm and/
or rotating the mirror head.
*Set screws may be located on the opposite side
of the mirror arm. Passenger and Driver side
mirrors are similar.
If mirror arm will not pivot with set screws
loosened, you may also need to loosen the mirror
arm pivot bolt on the underside of the mounting
base shown. Be sure to tighten this bolt when
adjustment is done.

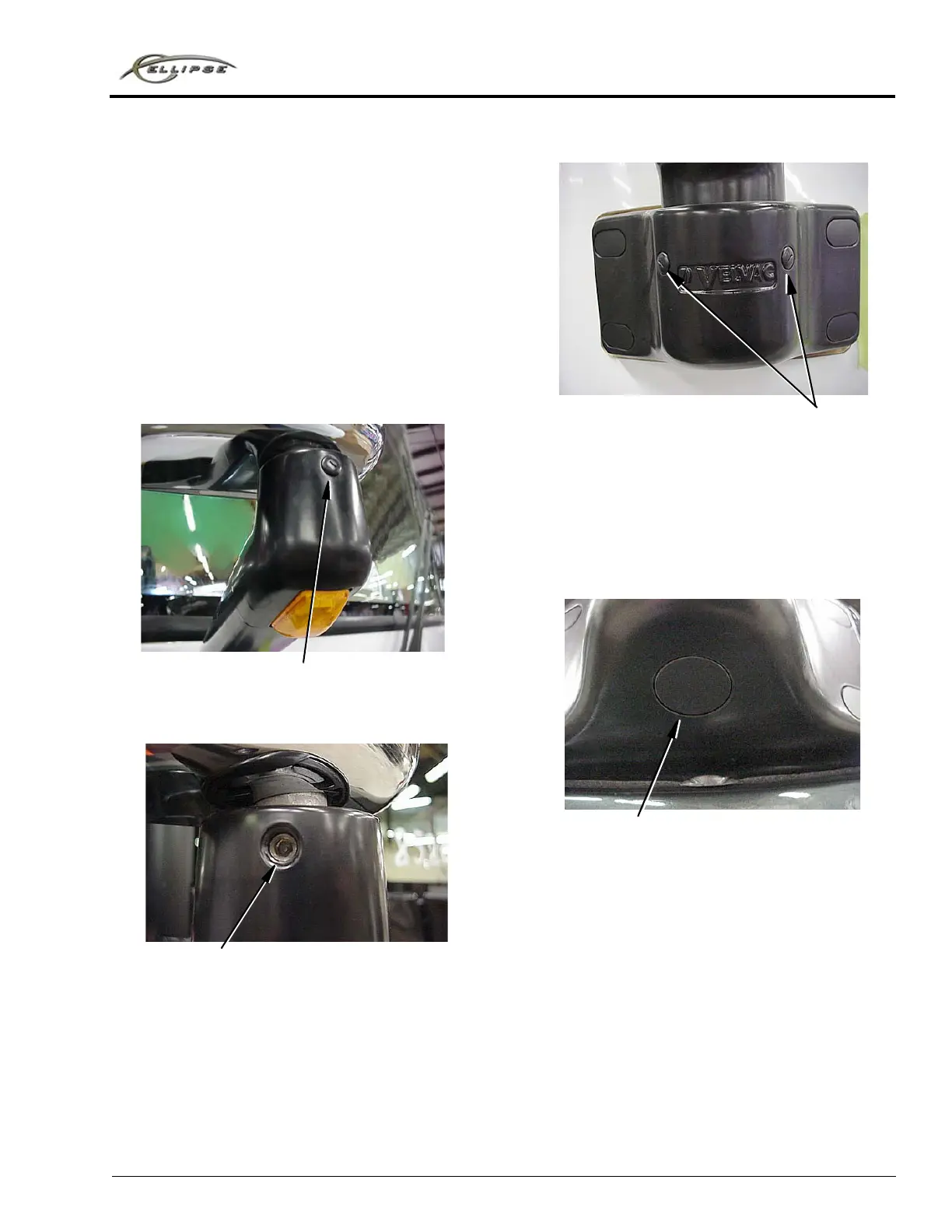

Unscrew protective cap and
loosen Allen head set screw
to pivot mirror head
Mirror Head Pivot Lock
Allen Head Set Screw*
(Torque screw to 75-100 in./lbs.)
Mirror Arm Mounting Base
Unscrew protective caps and loosen Allen
head set screws to pivot mirror arm.
(Torque screws to 75-100 in./lbs.)
Carefully pry out plug on underside
of mirror base to access pivot bolt
To Next Page
