Winnebago Sunstar - 12-Volt House Fuses and Circuit Breakers

6-9
SECTION 6 -
ELECTRICAL
• Fluid level check may be omitted if equipped
with maintenance-free batteries.

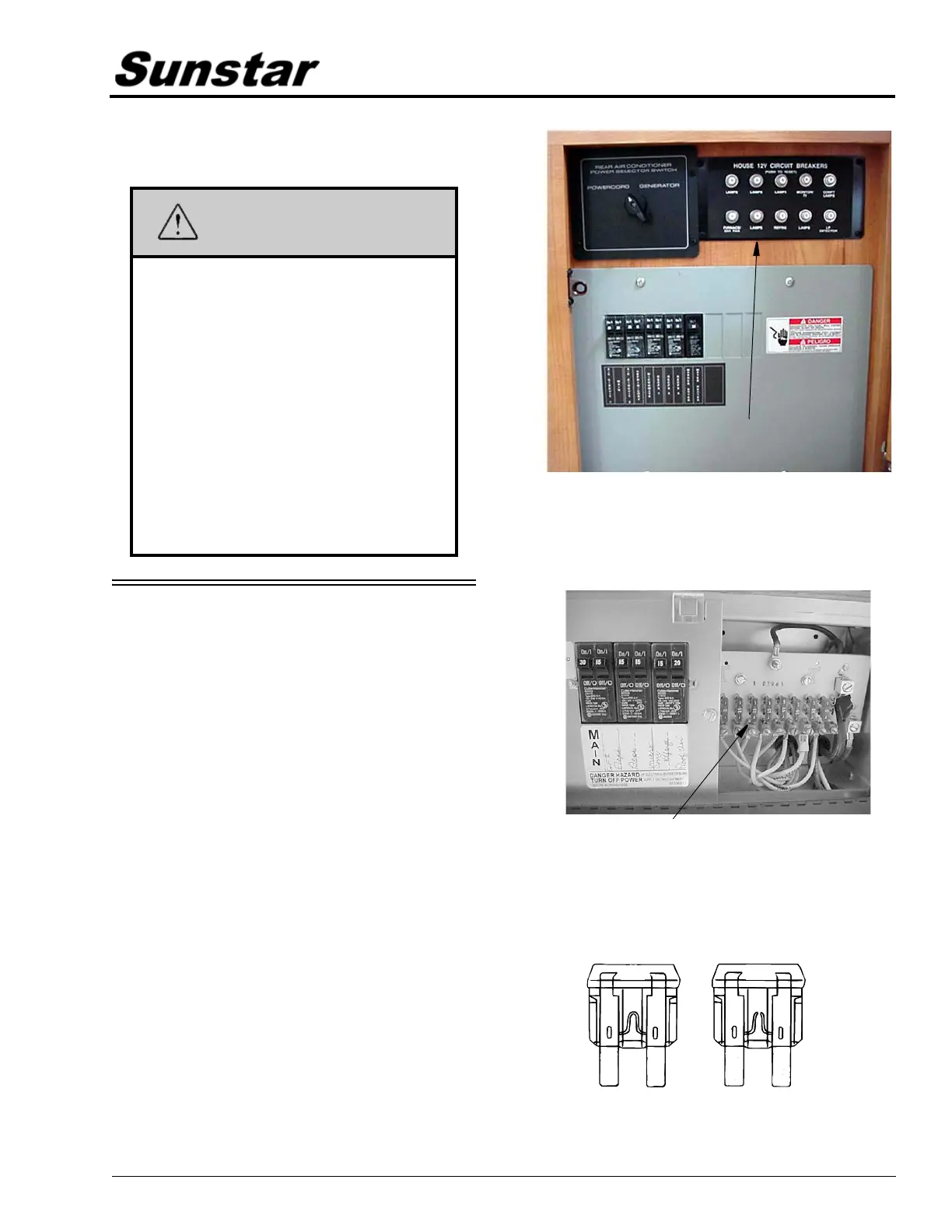

12-VOLT HOUSE FUSES AND
CIRCUIT BREAKERS
All 12-volt circuits and equipment in the
coach area of the motor home are protected by
either a fuse panel or breaker panel. When a
circuit is overloaded or a short develops in any
part of the system, a fuse or breaker will shut
down that circuit. If this happens, turn off all
affected lights or appliances and reset the breaker
or replace the fuse with a new one of equal
amperage rating.
A label on the panel states the amperage rating
and circuit protected for each fuse or breaker.
The fuse panel is on the right-hand side of the
power converter.
The fuse panel accepts only blade type plug-in
fuses. Always replace fuses with those of the
same amperage rating.
WARNING
To prevent wiring damage, it is essential
when replacing the cables on the battery,
or when using a “booster” battery, that the
positive post and the positive cable be
attached and the negative post and
negative cable be attached. The posts are
marked (+) plus and (-) minus.
If a “boost charger” is used while battery
is in the motor home, disconnect both
battery cables before connecting the
charger to avoid damage to engine
electronic components.
Never attempt to charge or boost a frozen
battery.
House 12V Breakers
33’ models
House 12V Fuses (on converter panel)
30’ models
30
30
Good Fuse Bad Fuse
