9-3
SECTION 9 -
FURNITURE AND SOFTGOODS
U-SHAPED DINETTE/BED
CONVERSION
–If Equipped
(Typical view – your coach may differ)

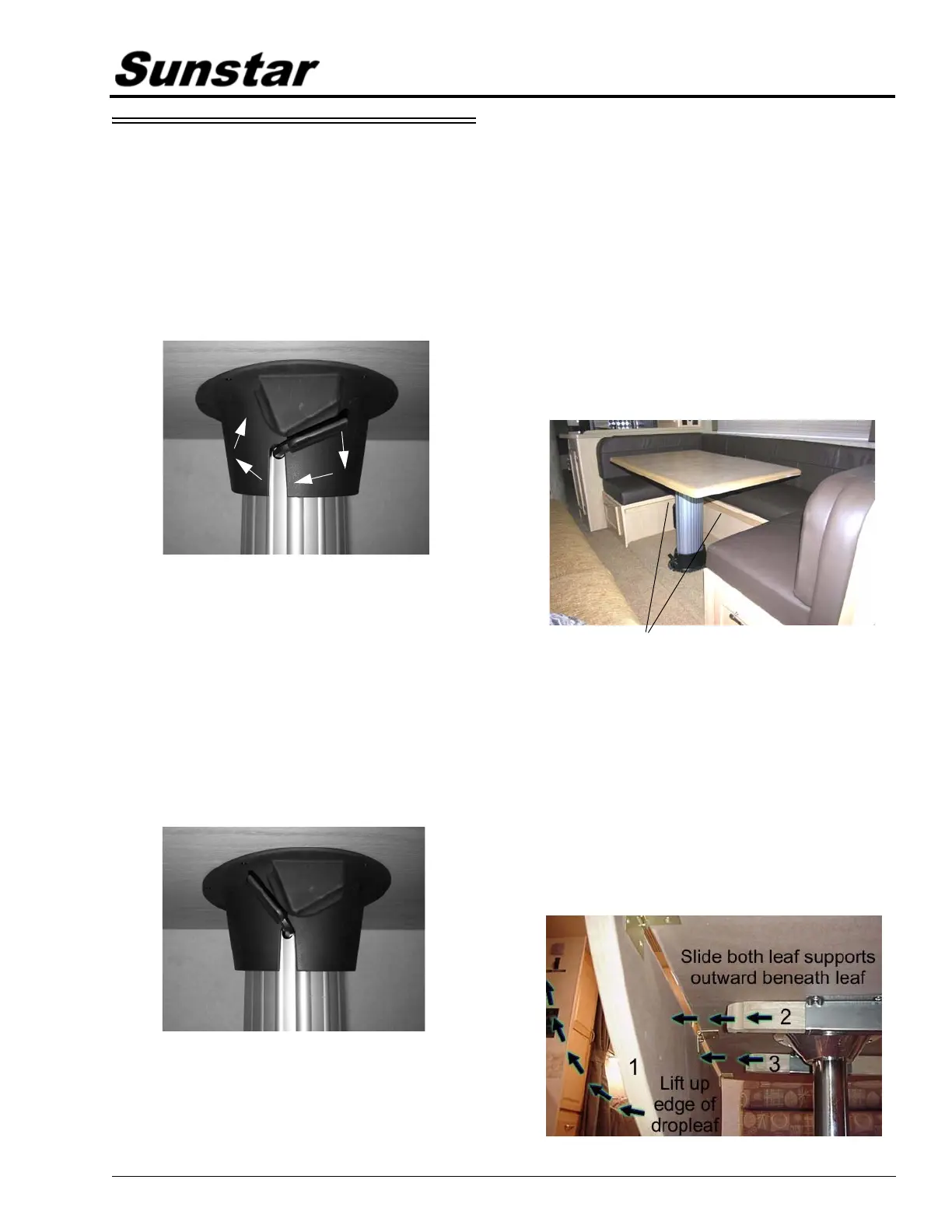

The U-Shaped Dinette can be converted into
additional sleeping space when needed by
lowering the table and moving a cushion into
place as shown below.
1. Rotate the locking latch clock-wise to release
the table from the pedestal.
NOTE: When releasing the latch, you will feel
pressure, but continue rotating all the
way until it is in the position shown in the
following picture. This will ensure that
the locking mechanism is reset for the
next use.
2. Lift the table upward off the pedestal and set
the table edgewise onto the floor.
3. Release the locking latch holding the pedestal
to the base on the floor and remove the
pedestal. When releasing the latch, be sure
rotate the locking latch completely as
mentioned in Step 1.
4. Store pedestal in the compartment beneath
dinette seat.
5. If you have a round table, ensure the leaf
extension is lowered.
6. Place the tabletop onto the support bars on the
dinette seat face. If you have a round table,
place the flat side outward to form the
bedboard.
7. Place the back cushions into place over the
table to complete the bed cushion conversion.
NOTE: Reverse steps to reassemble to dinette
configuration.
Round Table Leaf Extension
Lift the leaf extension upward then reach
beneath the tabletop and slide the support arms
outward to hold the extension. Reverse steps to
lower the extension.
Fully engaged locking latch
Fully disengaged locking latch.
Support Bars
