SECTION 9 –
FURNITURE AND SOFTGOODS
9-6

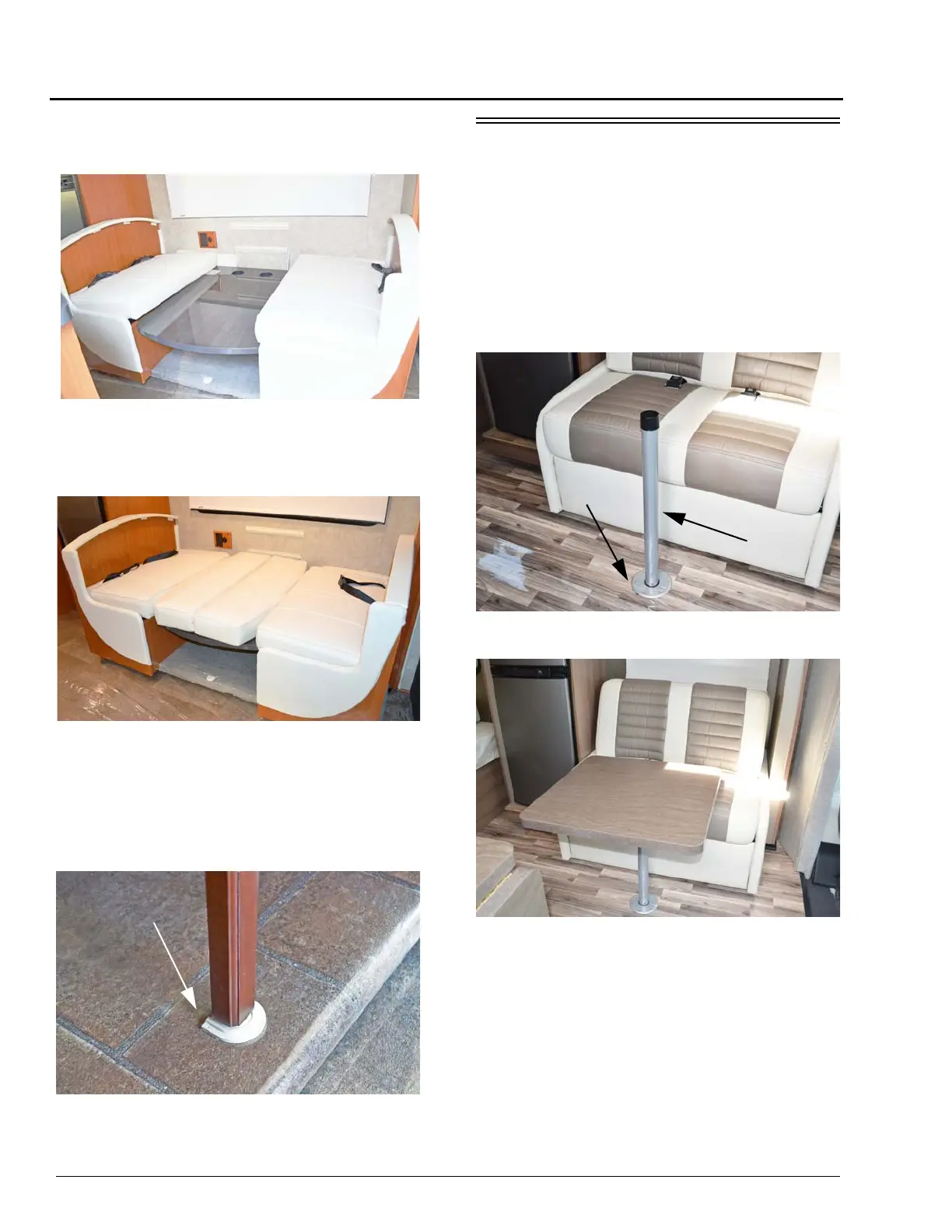

6. Then lower the table to rest on the cleats
attached to each dinette bench. Lower dinette
seat cushions.
7. Arrange dinette cushions to cover bed area.
NOTE: Additional bolsters may be included with
your dinette to cover bed area.
Reverse steps to convert back into dinette
seating.
Once the table is reattached onto the wall
support, make sure the table leg is secured into
the floor support bracket and the leg brace is
locked.
DINING TABLE
–If Equipped
(Typical View – Your coach may differ in
appearance)
Remove one (1) dining table from storage
compartment in passenger side bed cabinet.
Remove small pedestal leg from the storage
compartment in driver side bed cabinet.
Insert pedestal leg into the metal receiver on
the floor.
Place dining table securely onto the pedestal
leg.
Reverse steps to store dining table and
pedestal leg.
Floor
Support
Bracket
Pedestal
Leg
Metal
Receiver
