SECTION 9 –
FURNITURE AND SOFTGOODS
9-8

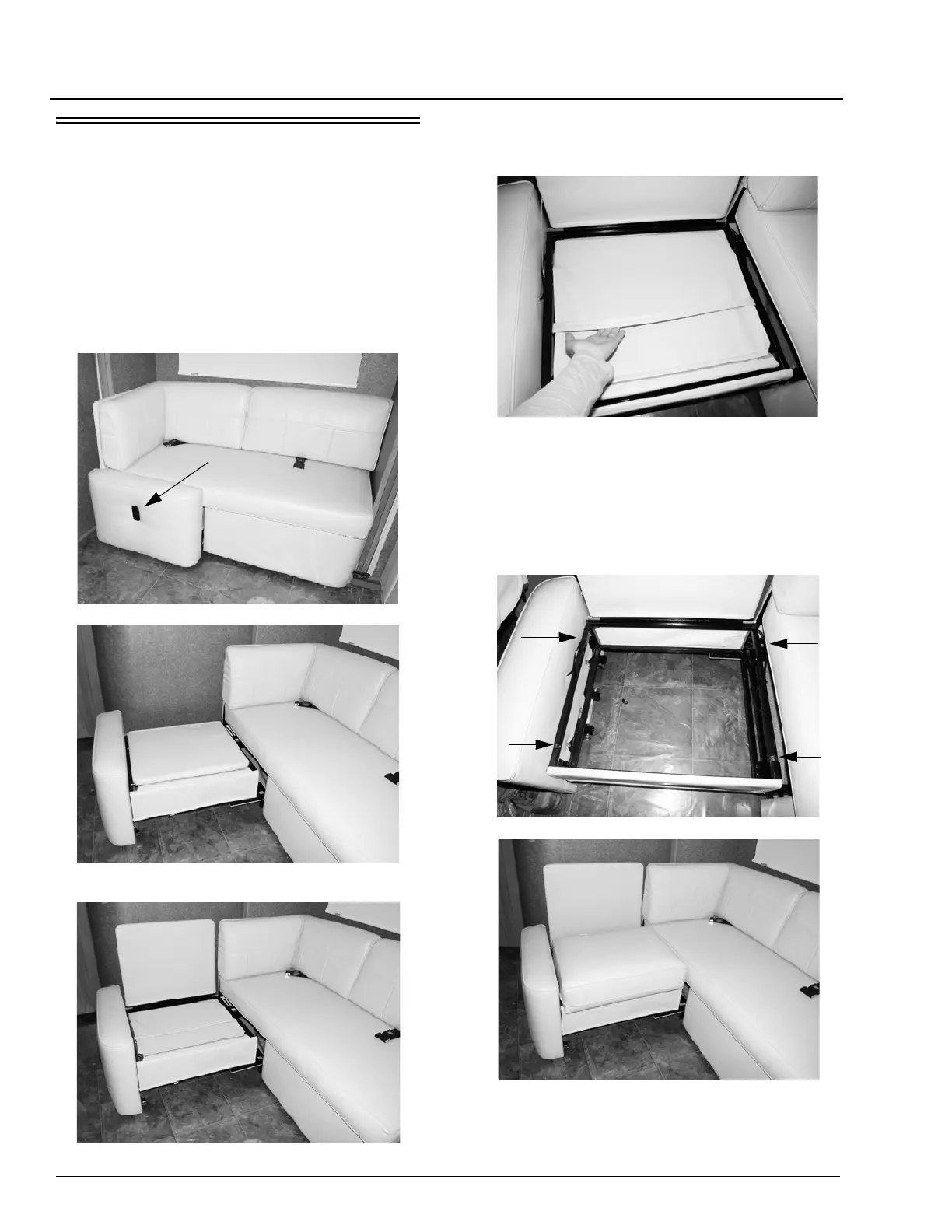

EXTENDABLE SECTIONAL –
L-SHAPED DINETTE
–If Equipped
(Typical View – Your coach may differ in
appearance)
Dinette Conversion
1. Engage and Hold the black lever (located on
the end of dinette seat) and fully extend
dinette sectional extension.
2. Flip seat back support upright.
3. Remove seat cushion from sectional
extension by using the provided pull strap
(located on the back side of the seat cushion).
4. Turn seat cushion over and reinstall onto
sectional frame, ensuring the four
engagement pins (one located on each corner
of the cushion) are firmly seated into the four
notches (one located on each corner of the
sectional frame, as shown in the following
photo).
