SECTION 6 –
ELECTRICAL
INVERTER UNIT – 1000W
–If Equipped
The inverter changes 12-volt DC battery
power into 120-volt AC power for use by 120-
volt AC equipment inside the coach. The inverter
unit is located inside an interior cabinet.
NOTE: Batteries will deplete with use of the
inverter.
Monitor battery levels regularly when
not connected to shoreline or generator
power.
The inverter can also be used while
driving the motorhome because the
engine alternator will charge the
batteries while driving.
The inverter has built in GFCI protection. The
GFCI will protect against electrical shock by
interrupting the flow of electricity. If there is no
power from the inverter the GFCI may have
tripped. Reset the GFCI by pressing the RESET
button. If the GFCI continues to trip, have the
electrical system checked and repaired, if
necessary, before using the inverter again.
NOTE: Do not leave the shoreline plugged in
during storage. Follow regular battery
inspection and maintenance.
Inverter Control Panel
–If Equipped
The inverter has a wall-mounted monitor/
control panel. It will also indicate warnings for
overload conditions or other operating failure
conditions.
When the inverter is not being used, it should
be shut off at the control panel. The inverter
could drain the house batteries if the shoreline is
not connected to external power and the House/
Coach Battery Disconnect switch is on.
Further Information
See the inverter control panel instructions in
your InfoCase for complete instructions and
charging setup directions.

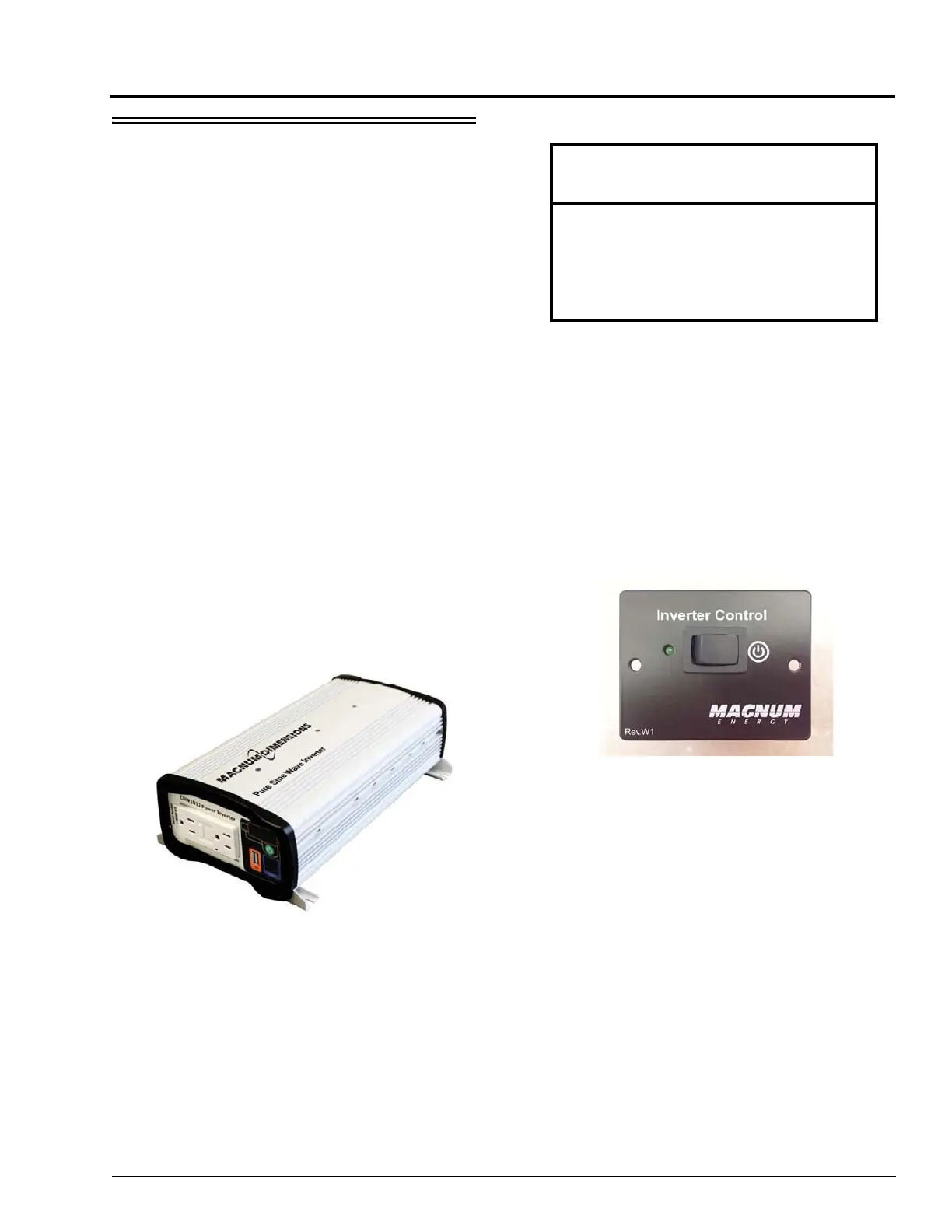

Inverter Unit
(Located in lower passenger side
compartment front of rear wheel)
-Typical View
NOTICE
Do not store items around the inverter
unit. The inverter generates heat while
operating and needs unrestricted airflow
for proper cooling. Damage to the inverter
can result.
Inverter Control Panel
(Located near monitor panel)
-Typical View
