SECTION 2 –
SAFETY AND PRECAUTIONS
2-8
To open, release all four latches and push
window out.
1. Side Latches (2) - Pull down toward bottom of
window frame.
2. Bottom Latches (2) - Pull toward the left-hand
side of the window frame.
3. Push window open.
Using Slider Windows As
Emergency Exits
Some coaches are required to have a slider
window as an alternate exit. This window will be
marked EXIT and have a red-handled latch.
Most slider windows along the side of any
motorhome can also be used as alternate
emergency exits, should the need arise.
To use slider windows as an exit:
Lift window latch UP.
Slide the window open.
Either slide the screen open or push the screen
material out, depending on window
construction.
SLIDEOUT ROOMS
Check inside and outside the vehicle to make
sure that there are no people who could be
harmed or obstacles that could cause damage due
to room activation.

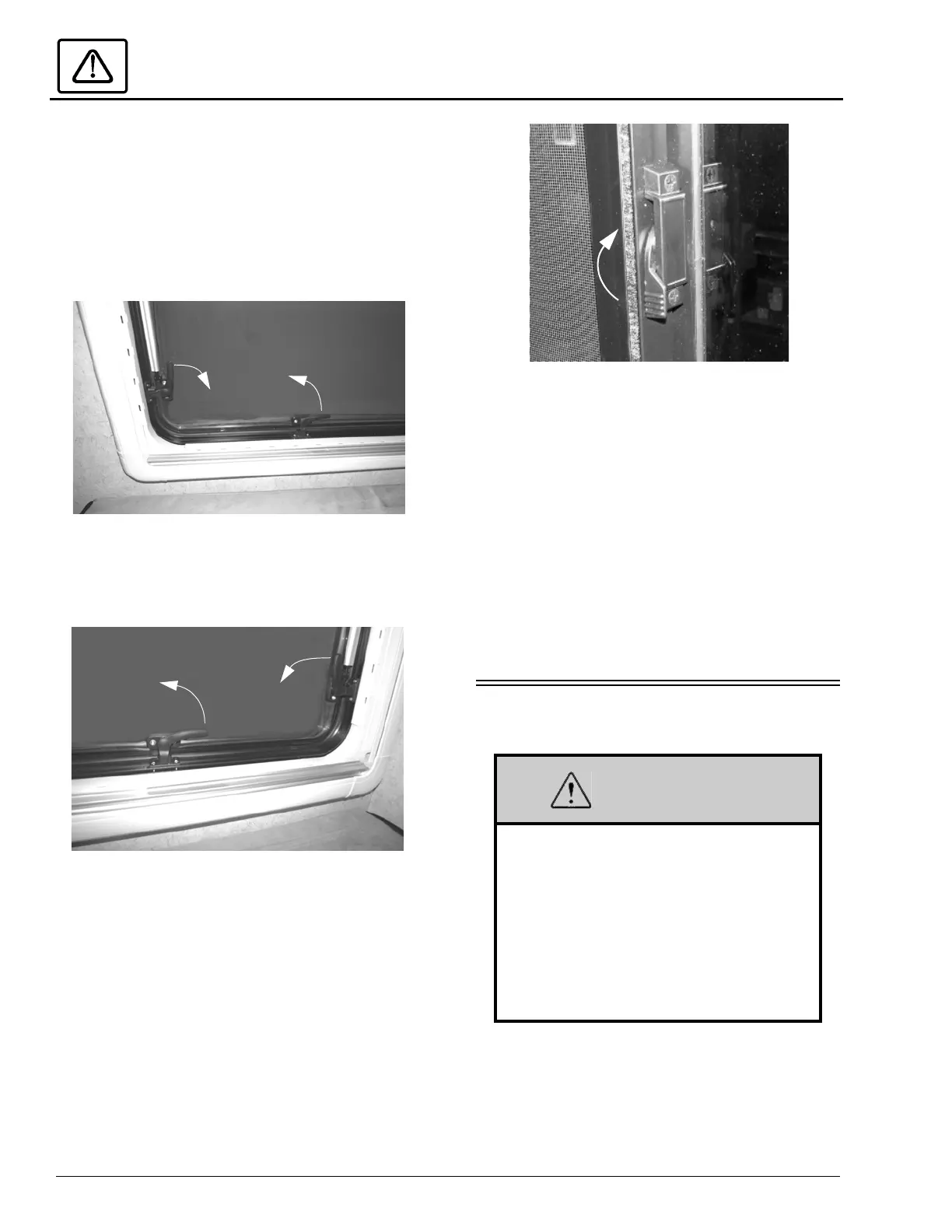

Escape Window
(View of interior left-hand side of window)
-Typical View
Side
Latch
Bottom
Latch
Escape Window
(View of interior right-hand side of window)
-Typical View
Side
Latch
Bottom
Latch
WARNING
Your motorhome may have more than
one slideout room. Understand which
switch operates which slideout room prior
to operation. Make sure all slideout rooms
are clear of people who could be harmed
or obstacles that could cause damage
prior to operating any slideout rooms.
Failure to observe can result in death or
serious injury.
Slider Window Latch
(Lift latch UP and slide window open)
-Typical View
