SECTION 6 –
ELECTRICAL
6-2
The power cord is designed to ground the
electrical system through the receptacle. It is also
designed to carry the amperage output of most
campground outlets. If the electrical receptacle to
be used is designed to mate with the prongs of the
power cord plug, the electrical connection can be
expected to carry rated load.

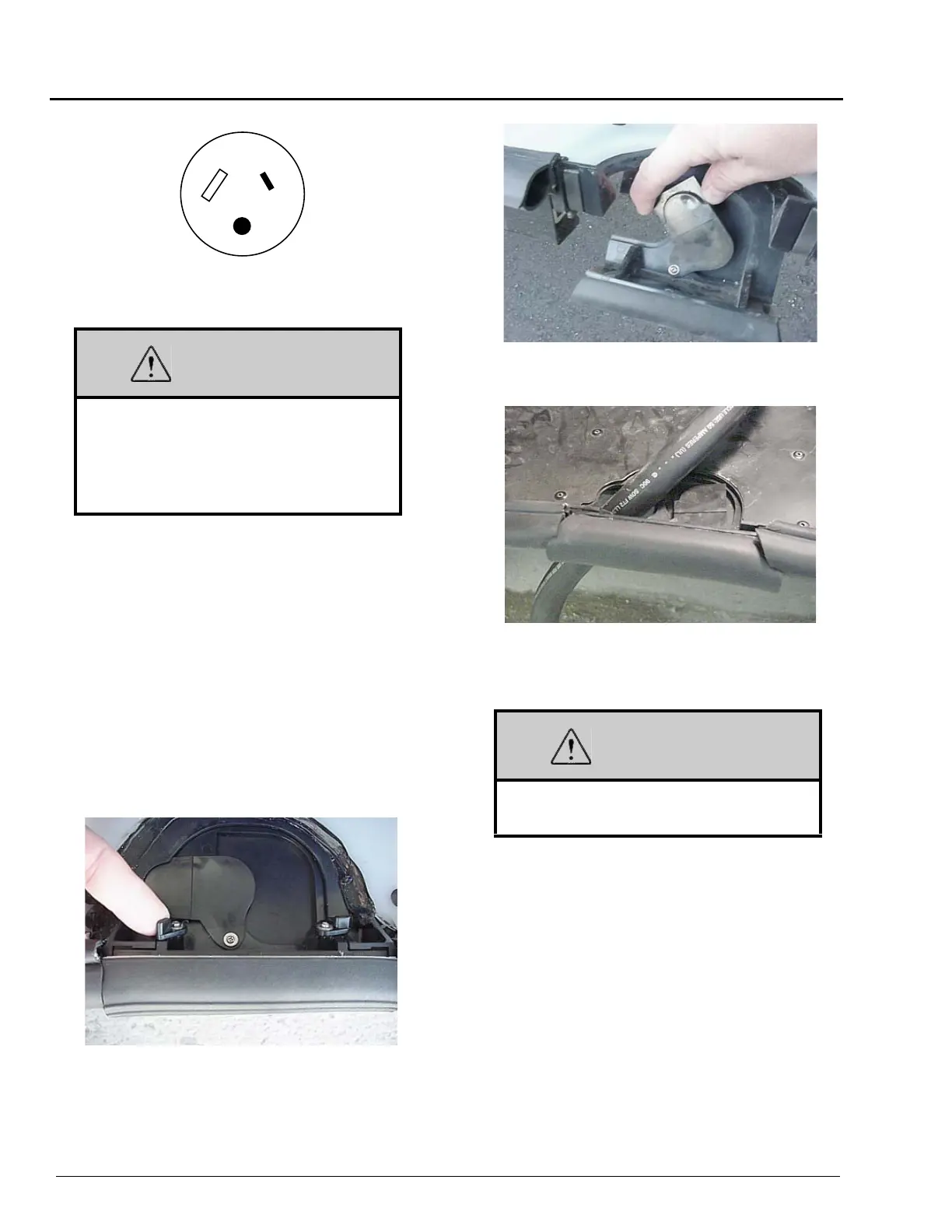

Power Cord QuickPort
®
The flip-down QuickPort hatch lets you route
the power cord out the bottom of the
compartment so you can close the compartment
door while the power cord is connected.
Park Fuses or Breakers
Most campgrounds are equipped with a fuse
or circuit breaker at the receptacle (which we
recommend shutting off before engaging or
disengaging the power cord.) This protects the
park’s wiring, as well as the power cord on your
vehicle from electrical damage. If electrical
power fails, contact the park attendants and have
them check the fuse or breaker for your supply
receptacle.
This connection is for 110/125 Volt AC,
60 Hz 30 Ampere supply.
Do not exceed circuit rating. Exceeding
the circuit rating may cause a fire and
result in death or serious injury.
• Swivel the latch aside and drop the hatch
Service inlet access must be closed when
utility connections are not in use.
• Swivel cover section to access cord notch
• Route cord through notch and flip hatch back
up into place and close the compartment door
To Next Page
