SECTION 7 –
PLUMBING
7-2
3. Turn the Fresh Water valve to the Tank Fill
position.
4. Turn city water supply ON.
5. Use the level display on the monitor panel to
oversee filling of the tank, or when the tank is
full, water will flow from tank vent tube
beneath coach and out of the Gravity Fill door.
6. Turn OFF city water supply and disconnect
hose from the Fresh Water Inlet.
7. Turn the Fresh Water valve to Normal position
to use the water pump. The Tank Fill position
is only for pressure filling the water tank from
the city water hose connection.
Using City Water
When connected to an outside source of water,
the water bypasses the water pump and storage
tank and supplies pressure directly to individual
faucets and toilet. A check valve built into the
pump prevents water from entering the pump and
filling the storage tank.
• Connect hose to Fresh Water Inlet as
described in previous steps.
• With the Fresh Water valve in the Normal
position, turn the Water Pump switch(es)
OFF.
NOTE: Always keep the Fresh Water valve in
Normal position unless you are filling the
tank. If this valve is left in the Tank Fill
position while using the city water, water
will keep flowing into the tank and out
the tank vent tube onto the ground and
the water pump will run without
delivering water to the faucets.
Disconnecting from City Water
• Turn the city water supply OFF.
• Open a faucet on the coach (such as the
exterior wash station, if equipped) to relieve
line pressure.
NOTICE
Do not leave fresh water connection
unattended when filling tank. Failure to
comply may result in tank expansion and
property damage.

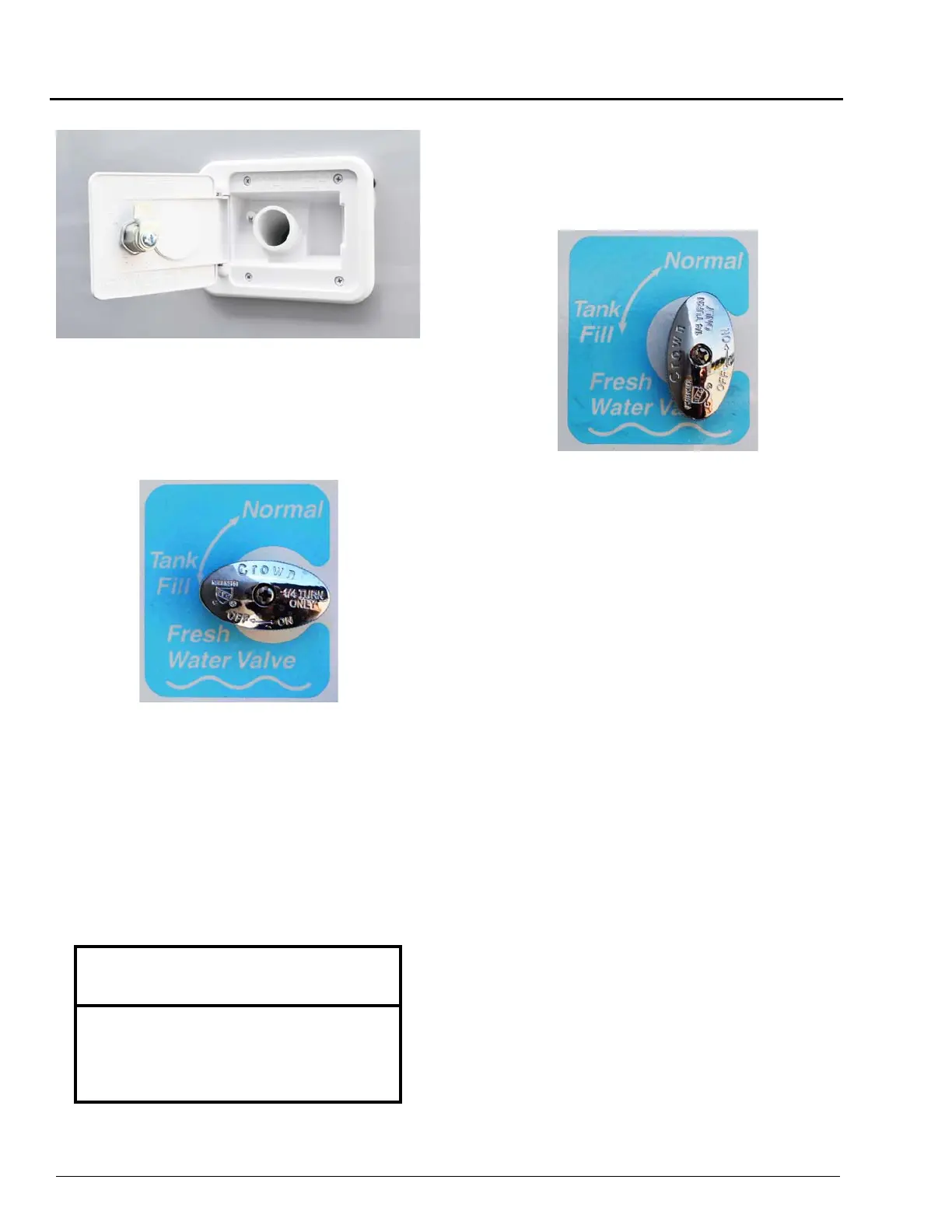

Water Tank Gravity Fill
-Typical View
Fresh Water Valve
(Located in water service center)
-Typical View
Fresh Water Valve
(Located in water service center)
-Typical View
