7-21
SECTION 7 –
PLUMBING
Open the latch with your thumb while pulling
the Easy Drain Lever down as far as it will go.
Turn Winterization Valve 3 to “Water
Heater & Line Drain” position to allow all
remaining water to leave the system.
Remove the water inlet filter and clean with
clean water, then replace.
Turn Winterization Valve 3 to “Normal”
position.
NOTE: See the tankless water heater operators
manual located in your InfoCase for
additional draining procedures.
Set Up Winterization Valves
If your coach is equipped with the Tankless
Water Heater, skip step 5 and proceed to step 6.
See “Water System Drain Valve Locations”
chart at the end of this section for location of
bypass valve on your model.
5. For Water Heater With Tank Only: Turn
Water Heater Bypass valve to BYPASS
position (to avoid filling water heater with
antifreeze).
If your coach is not equipped with a tankless
water heater continue to Step 7.
6. For Tankless Water Heater Only: Turn
Winterization Valve 1 (Water Heater
Bypass) to bypass position.
7. Remove and save the protective cap from the
end of the antifreeze siphon tube (save cap to
cover tube after use.)
8. Insert the end of the siphon tube into a pail or
container with 2 to 3 gallons of non-toxic RV
antifreeze solution.
9. Turn the Winterization valve handle so that it
points toward the siphon tube.
See “Water System Drain Valve Locations”
chart at the end of this section for location
on your model.
NOTE: Ensure that all drain valves are
CLOSED before pumping RV antifreeze
into the water system.

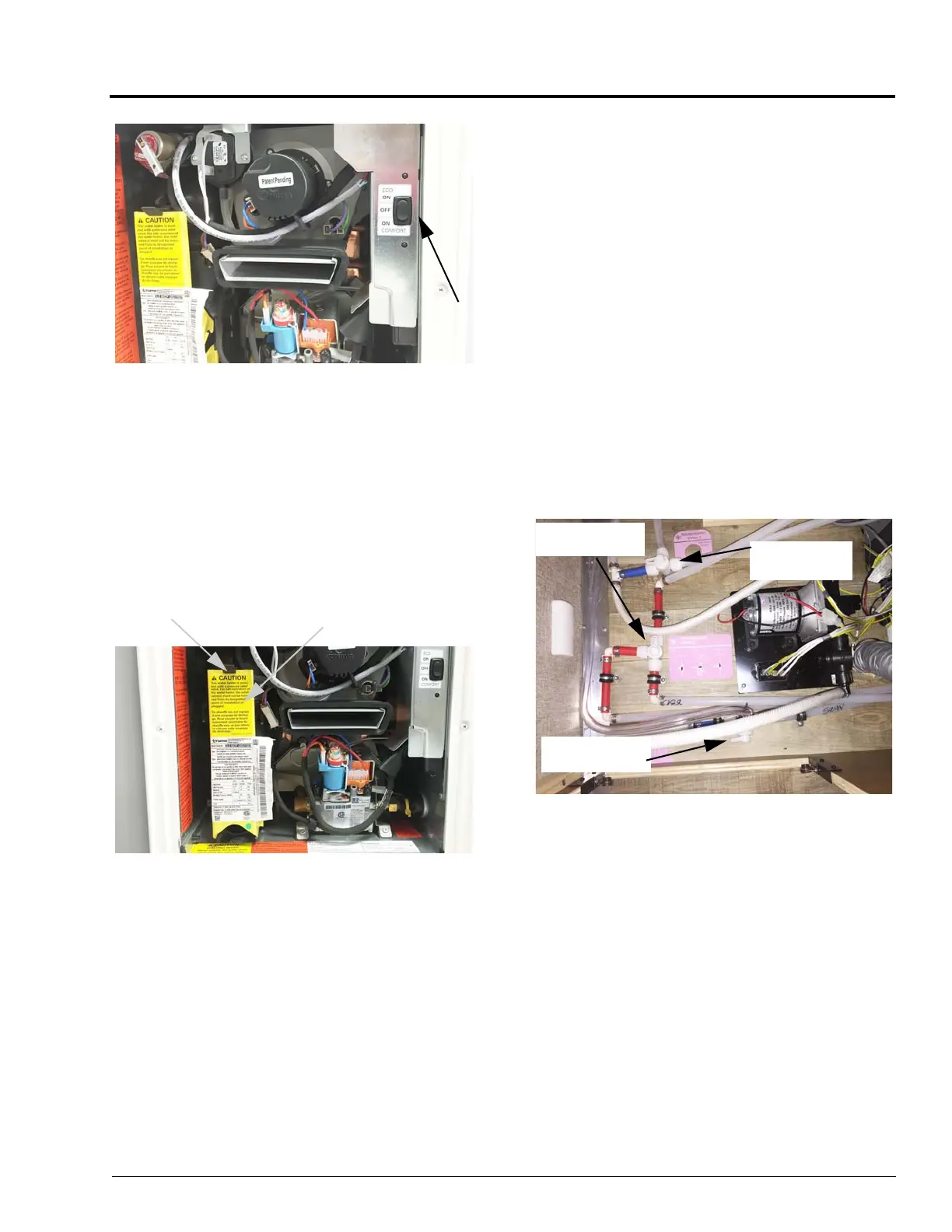

Water Heater Power Switch
(Located behind water heater access
panel on exterior of coach)
Easy Drain Lever
(Located behind water heater access
panel on exterior of coach)
Latch
Easy Drain
Lever
Winterization
Valve 3
Winterization
Valve 2
•Winterization
Valve 1
