Winterhalter UC Series Operating Instructions

Rinse aid and detergent
8
6.3.2 Dosing the liquid detergent
The dosing quantity is set by the service technician authorised by Winterhalter when the machine is installed.
A display on the screen indicates when integrated storage tanks are empty ( 15.1).
External storage tanks have to be fitted with a suction tube with level control if a display on
the screen is required to show when the filling level drops.
6.4 Pour in liquid detergent and rinse aid

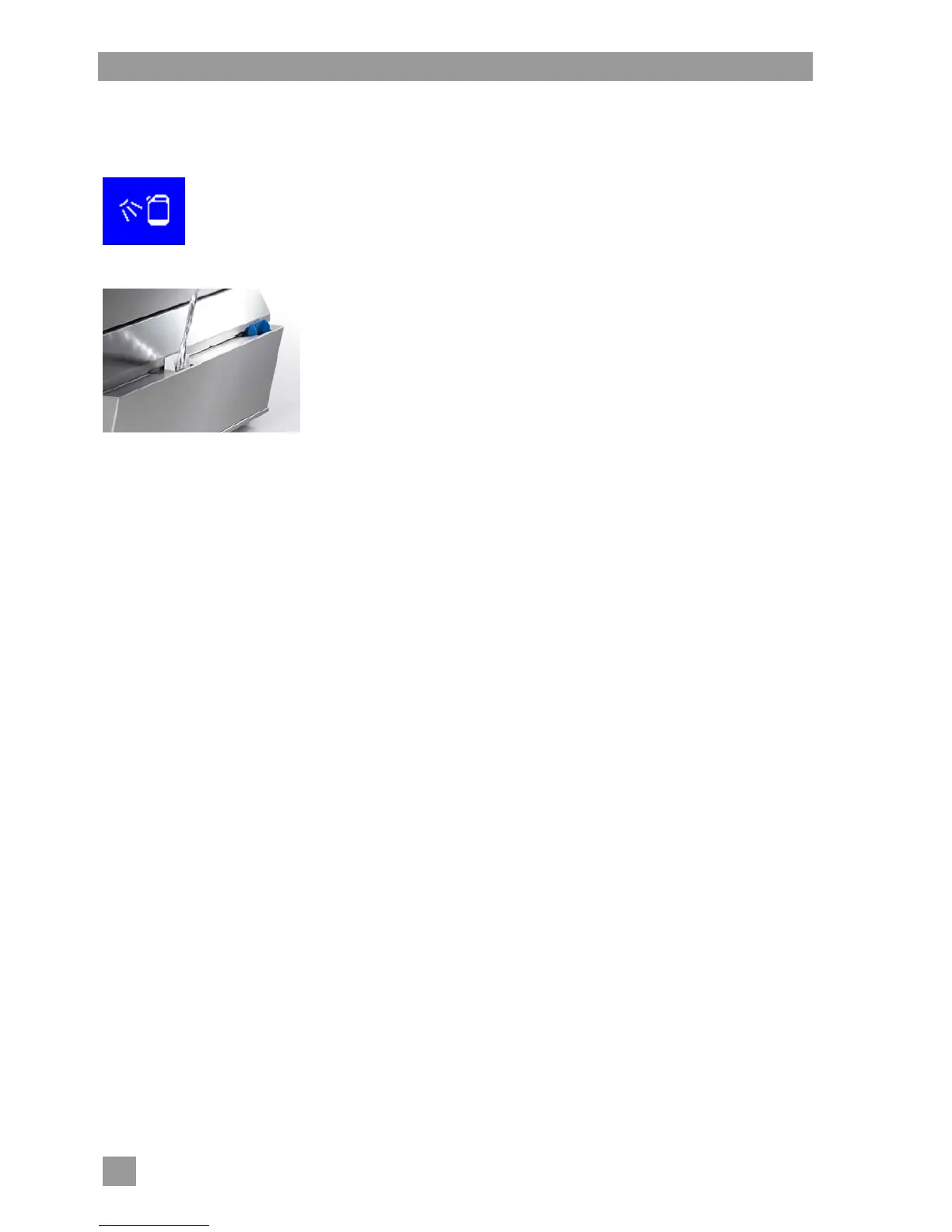

 Take hold of the lower body panel sides on the storage containers
and fold them forward
 Fill storage container with detergent / rinse aid:
 Opening with white flap: Storage container for detergent
 Opening with blue flap: Storage container for rinse aid
 Fold lower body panels back
On filling make sure that no detergent gets into the storage container
for the rinse aid, and vice versa.
6.5 Venting the dosing device
The dosing device has to be vented if air has entered into the dosing tube due to the storage tanks not being
refilled quickly enough.
 For an integrated dosing device proceed as described in chapter 12.1.
 For an external dosing device refer to the equipment documentation.
