5 Flue systems
To ensure safe and proper use, this air heater must be
connected to a flue system. This flue system must be
installed according to this manual as well as national and
local regulations. A flue system consists of a flue terminal,
piping and an optional condensate discharge system.
CAUTION! Do not use flue terminals for condensing
appliances on non-condensing heaters. This can lead to
water inside the flue system.
NOTICE Only use the prescribed flue material for the
roof terminal, wall terminal and for the piping between
the heater and the terminal. This is the only way the
installation will be approved.
NOTICE Local regulations can require the flue terminal to
be placed at least 0,6 m above roof level.
NOTICE Local regulations can require a minimum
distance between the flue terminal and air ventilation
openings on the building.
5.1 Flue terminals
The following flue terminals are compatible with this air
heater:
Model(s) Vertical discharge
Flue terminal Art. Nr.
XR10 until XR30 DDV 80/125 IA8202*
XR10 until XR30 - -
XR40 until XR60 DDV100/150 IA8101**
* For h > 0,5m above the roof, use art.nr. IA8218
** For h > 0,5m above the roof, use art.nr. IA8107
Model(s) Horizontal discharge
Flue terminal Art. Nr.
XR10 until XR30 CT 80/125 IA8113
XR10 until XR30 2-pipe terminal GA8202
XR40 until XR60 CT100/150 IA8112

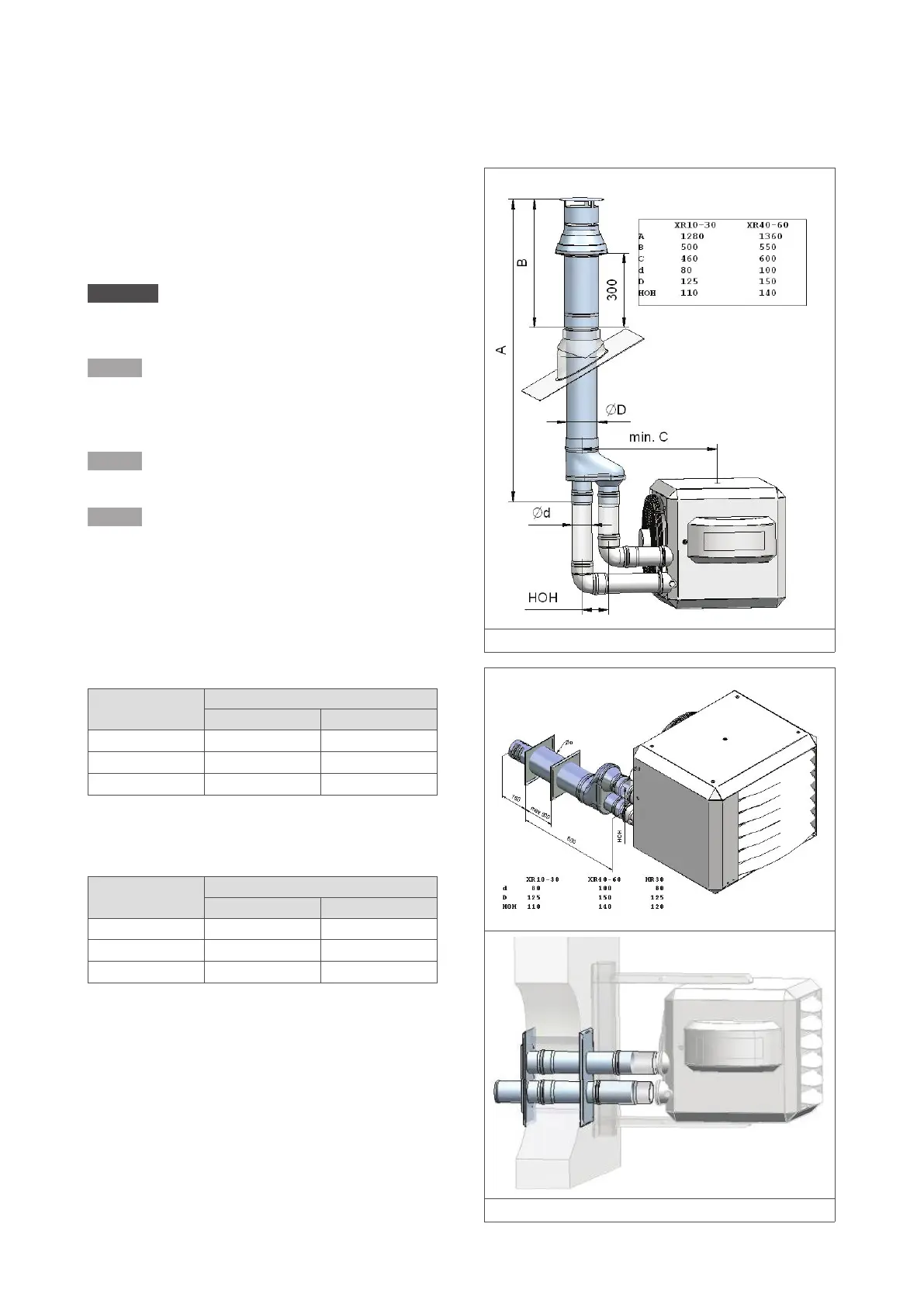

Figure 15 - Vertical flue terminal XR
Figure 16 - Horizontal flue terminal XR
