25INSTRUCTION MANUAL AIR HEATER TYPE XR
12 Exploded view and spare parts

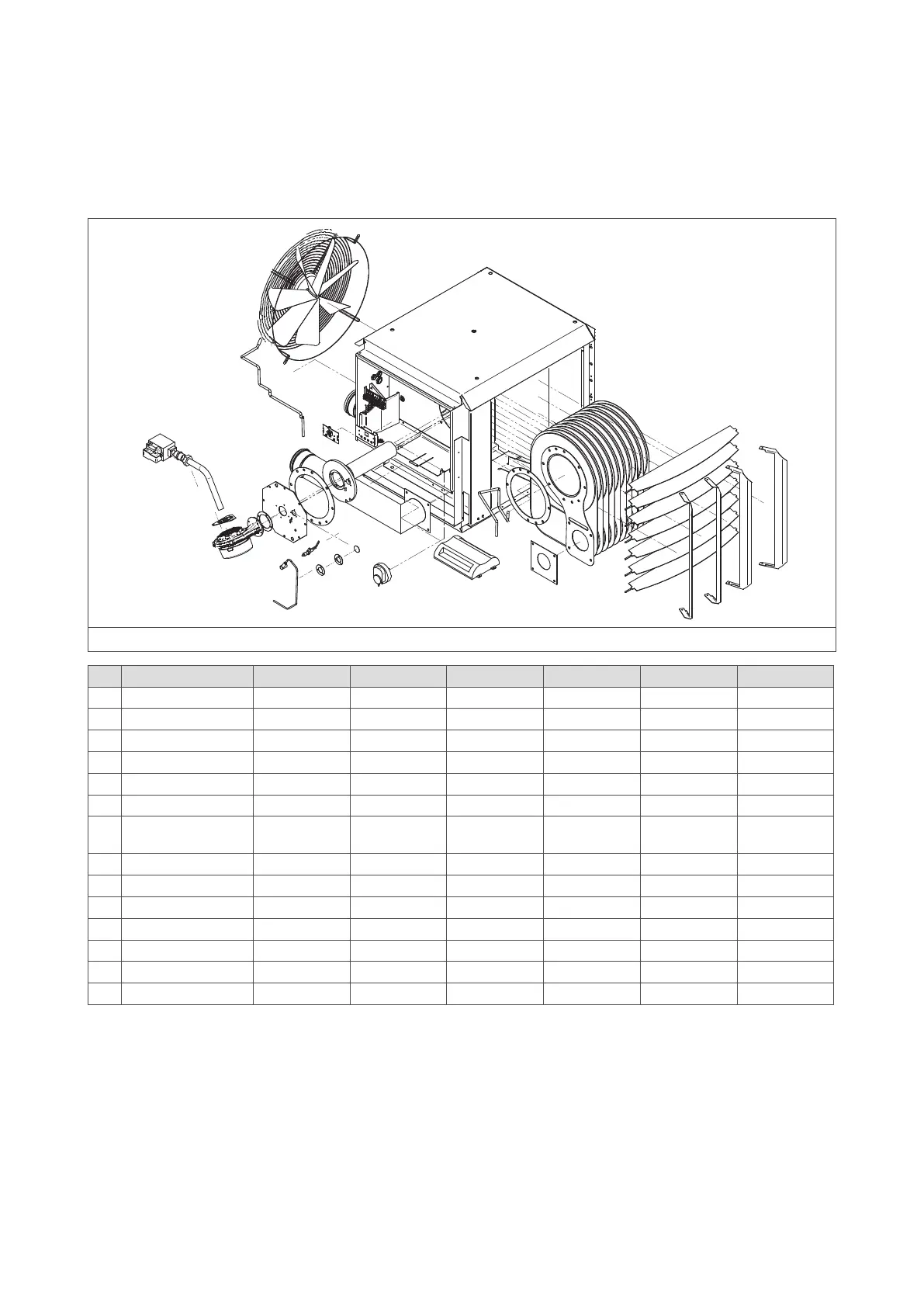

The parts of the air heater are shown in an exploded view in figure 27. The table below describes each part and shows the
correct article number for a replacement part.
11
5
6
13
8
1
2
9
12
11
14
10
7
Figure 27 - Exploded view of the XR10 - 60
No. Description XR10 XR20 XR30 XR40 XR50 XR60
1 Burner natural gas GA3206 GA3207 GA3208 GA3208 GA3210 GA3212
1 Burner propane GA3224 GA3226 GA3228 GA3228 GA3230 GA3232
2 Ignition / ionisation set GA3460 GA3460 GA3460 GA3460 GA3460 GA3460
5 Burner fan EBM GY4523 GY4523 GY4523 GY4523 GY4523 GY4523
6 Gas valve SIT SIGMA 848 GA3000 GA3000 GA3000 GA3000 GA3000 GA3000
7 System fan IX4201 IX4201 IX4201 IH4206 IH4206 IX4207
8 Burner control unit
(EBM966)
GY5901 GY5901 GY5901 GY5901 GY5901 GY5901
9 Pressure switch GX3932 GX3932 GX3932 GX3932 GX3932 GX3932
10 Heat exchange sensor GY3932 GY3932 GY3932 GY3932 GY3932 GY3932
11 Gasket set GA6702 GA6702 GA6702 GA6706 GA6706 GA6706
12 Burner isolation GA6700 GA6700 GA6700 GA6704 GA6704 GA6704
13 Delta-T sensor GY3931 GY3931 GY3931 GY3931 GY3931 GY3931
14 Display PCB GY5902 GY5902 GY5902 GY5902 GY5902 GY5902
15 Flue sensor XR (optional) IX3930 IX3930 IX3930 IX3930 IX3930 IX3930
