5. Disassemble the burner unit.
6. Adjust the ignition electrode:
a. The distance between the electrode and the
burner should be (±) mm (figure 23).
b. The distance between the two electrodes
should be (±) mm (figure 24).
c. Check the setting of the ignition electrode.
The spark should be formed between the two
electrodes, not between the electrode and the
burner.

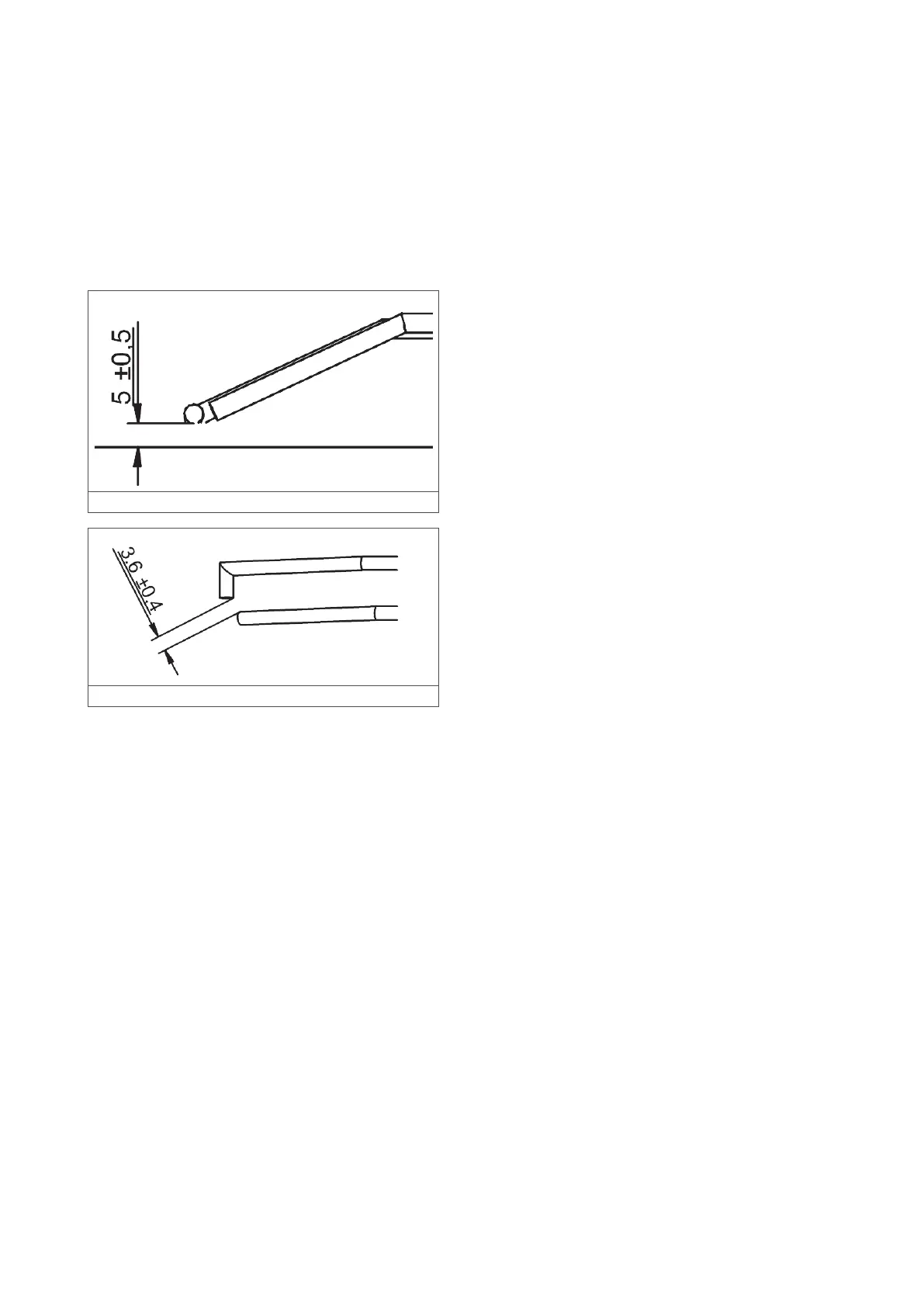

Figure 23- Distance between the electrode and the burner
Figure 24- Distance between the two electrodes
7. Reassemble the burner unit and install it back in
the air heater.
– Use new gaskets.
