WITTUR MIDI - DIP-Switches

Door Drive
MIDI / SUPRA
Operating instructions
Blatt/ sheet D823MGB.011
Datum/
date 01.03.2004
Stand/
version B-18.12.2008
Geprüft/
approved WAT/MZE
EXCELLENCE IN COMPONENTS
Änderungen vorbehalten! Subject to change without notice!

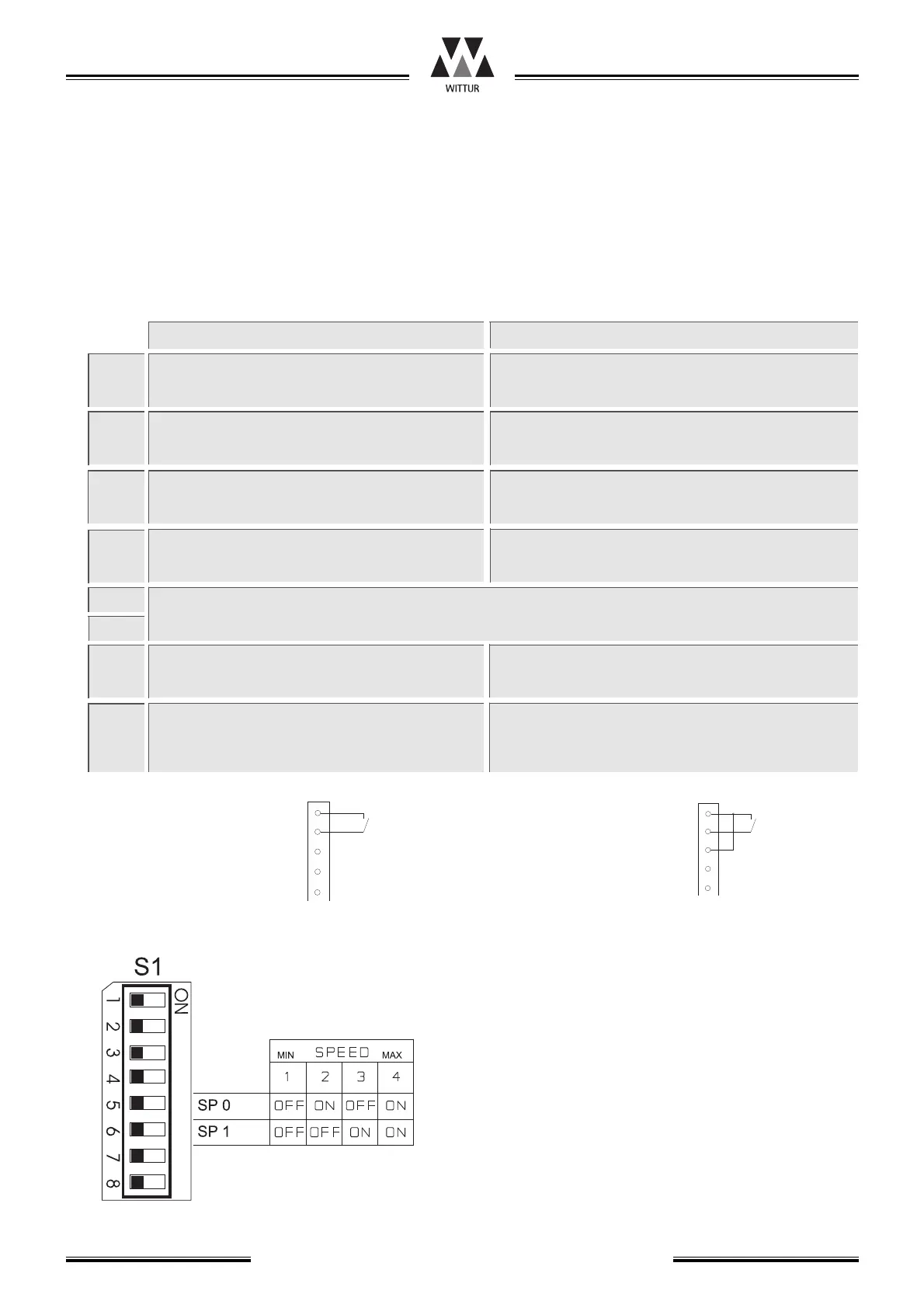

7 DIP-Switches
ON
Speed selection, binary coded, see figure
Open force limitation active
No open force limitation
S1/5
S1/6
S1/7
S1/4
Electric shoe operation, command input always
I1 (swing door mode)(*)
S1/3
Test Button operation (buttons active)
S1/1
Automatic reopen on obstruction or IPD
(Reopen O3 is switched)
S1/2
OFF
Normal operation (command inputs on X1 active)
Normal operation (command inputs on X1 active)
No automatic reopen
(only Reopen O3 is switched)
Automatic end keeping
Hold open/closed only on active open/close command
S1/8
Speed adjustment
(*) Mode 2:
I1 = ON -> door closes
I1 = OFF -> door opens
reduced motor torque is used maximal possible motor torque is used
COM
I1
I2
I3
Ix
Closedoor
(*) Mode 1:
I1 = ON -> door opens
I1 = OFF -> door closes
COM
I1
I2
I3
Ix
Opendoor
