Door Drive
MIDI / SUPRA
Operating instructions
Blatt/
sheet
D823MGB.015
Datum/
date
01.03.2004
Stand/
version
B-18.12.2008
Geprüft/
approved
WAT/FLE
EXCELLENCE IN COMPONENTS
Änderungen vorbehalten! Subject to change without notice!
9.1 Preparation for learning of door
parameter
1 DIP switch setting has to be copied from the
replaced board, see chapter 7: “DIP-Switches”.
2 Mount the reference switch so, that switch and
magnet are opposite when the door panels are
closed (the clearance between switch and mag-
net should be 3mm)
3 The DIP Switch S1/1 (Test Button Operation)
must be activated.

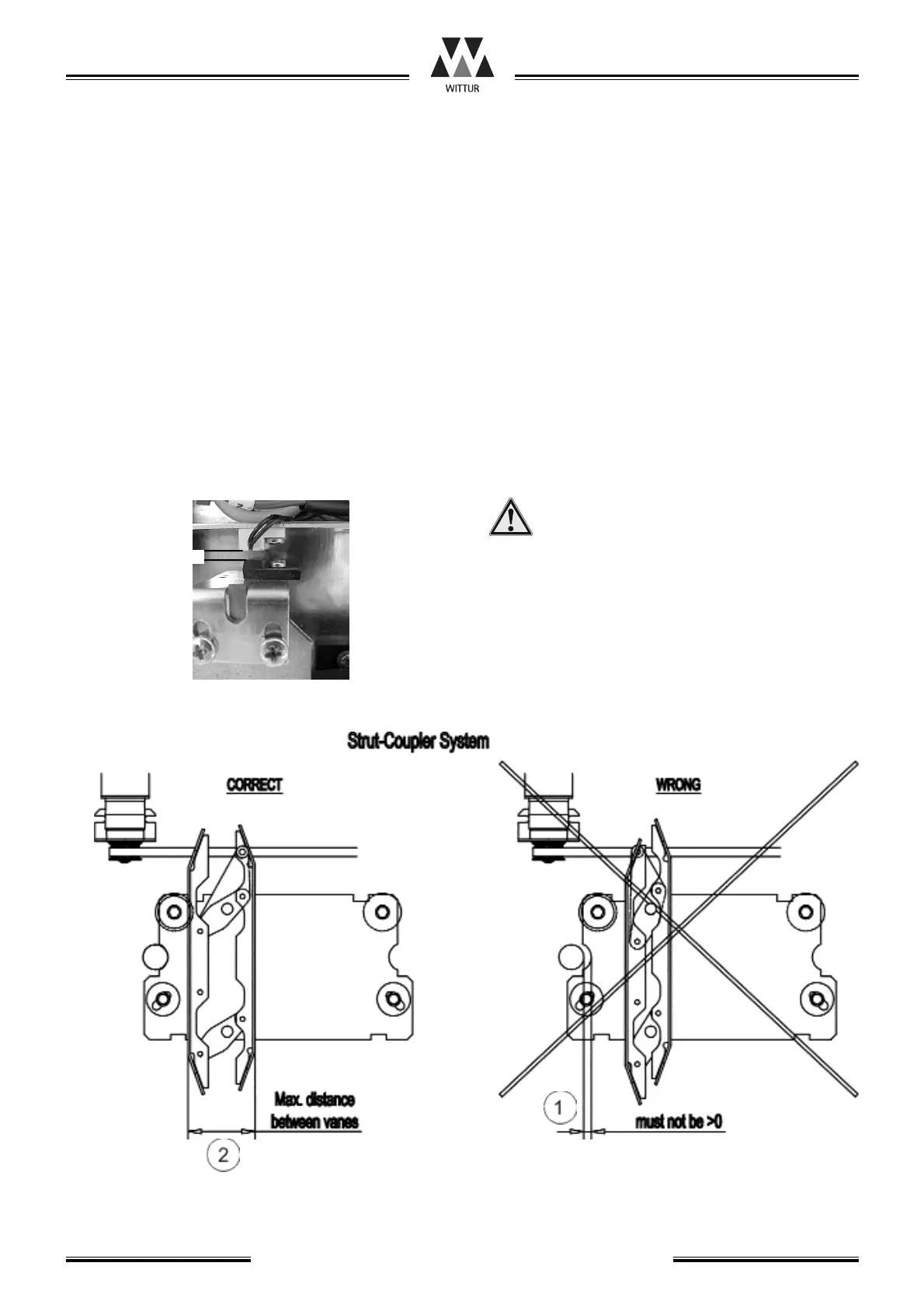

4 Put the door panels to fully closed position (1).
Check that the coupler is opened (2) (landing
lock unlocked).
Therefore open the door panels by hand
and push them manually to closed positon.
The hanger plate (truck) must touch the
close end buffer. See picture below (1)
3mm
9 Exchange of electronic box
